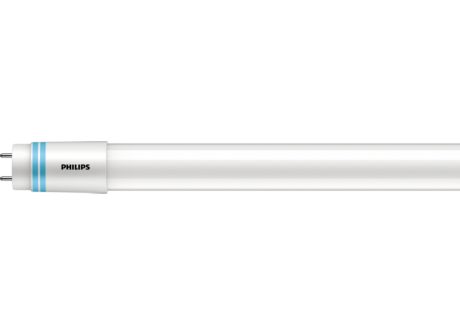

16T8/LED/48-850/UF18/G 10/1

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.9
Voltage (Nom)	40-330 V
Wattage Equivalent	32 W
Line Frequency	50-120000 Hz
Input Frequency	50-120000 Hz
Power Consumption	16 W

Approval and Application

Approval Marks	RoHS compliance	UL certificate
Energy Saving Product	Yes
Energy Consumption kWh/1000 h	- kWh

Product Data

Order product name	16T8/LED/48-850/UF18/G 10/1
EAN/UPC - Case	50046677539981
Net weight	0.220 kg
Full product name	16T8/LED/48-850/UF18/G 10/1
Numerator - Packs per outer box	10
Material number (12NC)	929001966004
Order code	539980
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

Mechanical and Housing

Product Length	47-1/4 inch
Bulb Finish	Frosted
Bulb Shape	Tube, double-ended
Bulb Material	Glass

General Information

Switching Cycle	50,000
Cap-Base	G13  [Medium Bi-Pin Fluorescent]
Lighting Technology	LED
EU RoHS compliant	Yes
Nominal lifetime	36,000 hour(s)
Brand	Philips

Temperature

T-Case Maximum (Nom)	140 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Correlated Color Temperature (Nom)	5000 K
Luminous Efficacy (rated) (Nom)	112.00 lm/W
Luminous Flux	1,800 lumen
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Daylight
Color Consistency	<5
Color rendering index (CRI)	80
Beam Angle (Nom)	240 degree(s)
Color Code	850  [CCT of 5000K]
