    • Attractive, dimmable, and afforadlble LED R20 lamp solution

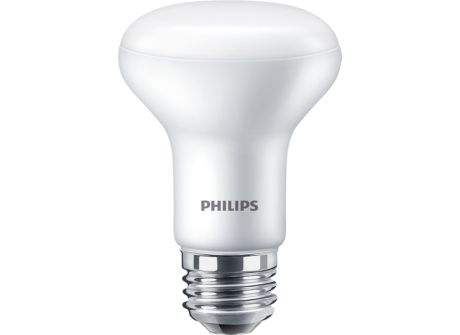

      5R20/PER/927/P/E26/DIM 6/1FB T20
      LED
      5R20/PER/927/P/E26/DIM 6/1FB T20
      LED R20

      5R20/PER/927/P/E26/DIM 6/1FB T20

      Order code: 553883

      Downloads

      Spec Sheet
      Size:720.5 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E26  [ Single Contact Medium Screw]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    15000 h
    Switching Cycle
    50000
    Light technical
    Color Code
    927
    Beam Angle (Nom)
    110 °
    Initial lumen (Nom)
    450 lm
    Color Designation
    Warm White (WW)
    Correlated Color Temperature (Nom)
    2700 K
    Luminous Efficacy (rated) (Nom)
    90.00 lm/W
    Color Consistency
    <4
    Color Rendering Index (Nom)
    90
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    60 Hz
    Power (Rated) (Nom)
    5 W
    Lamp Current (Nom)
    65 mA
    Wattage Equivalent
    45 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.7
    Voltage (Nom)
    120 V
    Temperature
    T-Case Maximum (Nom)
    158 °F
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Bulb Finish
    Frosted
    Bulb Material
    Plastic
    Bulb Shape
    R20  [ R 63mm]
    Approval and application
    Energy Consumption kWh/1000 h
    - kWh
    Energy Certifications
    Energy Star
    Product data
    Order product name
    5R20/PER/927/P/E26/DIM 6/1FB T20
    EAN/UPC - Product
    046677553883
    Order code
    553883
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929002092204
    Net Weight (Piece)
    0.077 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw R 63mm Frosted
    Single Contact Medium Screw R 63mm Frosted
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    LEDbulb 45W E26 R20 927 Frosted
    LEDbulb 45W E26 R20 927 Frosted
    LEDbulb 45W E26 R20 927 Frosted
    LEDbulb 45W E26 R20 927 Frosted
    LEDbulb 45W E26 R20 927 Frosted
    LEDbulb 45W E26 R20 927 Frosted
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LEDbulb 45W E26 R20 927 Frosted IES 4.8 kB
