    • Attractive, dimmable, and afforadlble LED R20 lamp solution

      5R20/MAS/927-22/P/E26/WG 6/1FB T20
      LED
      5R20/MAS/927-22/P/E26/WG 6/1FB T20

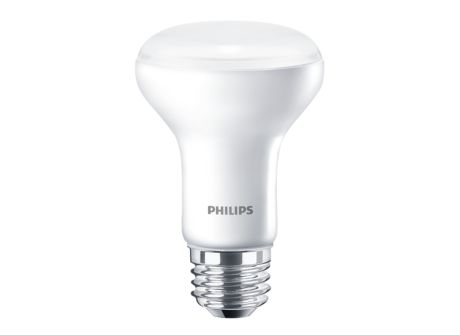

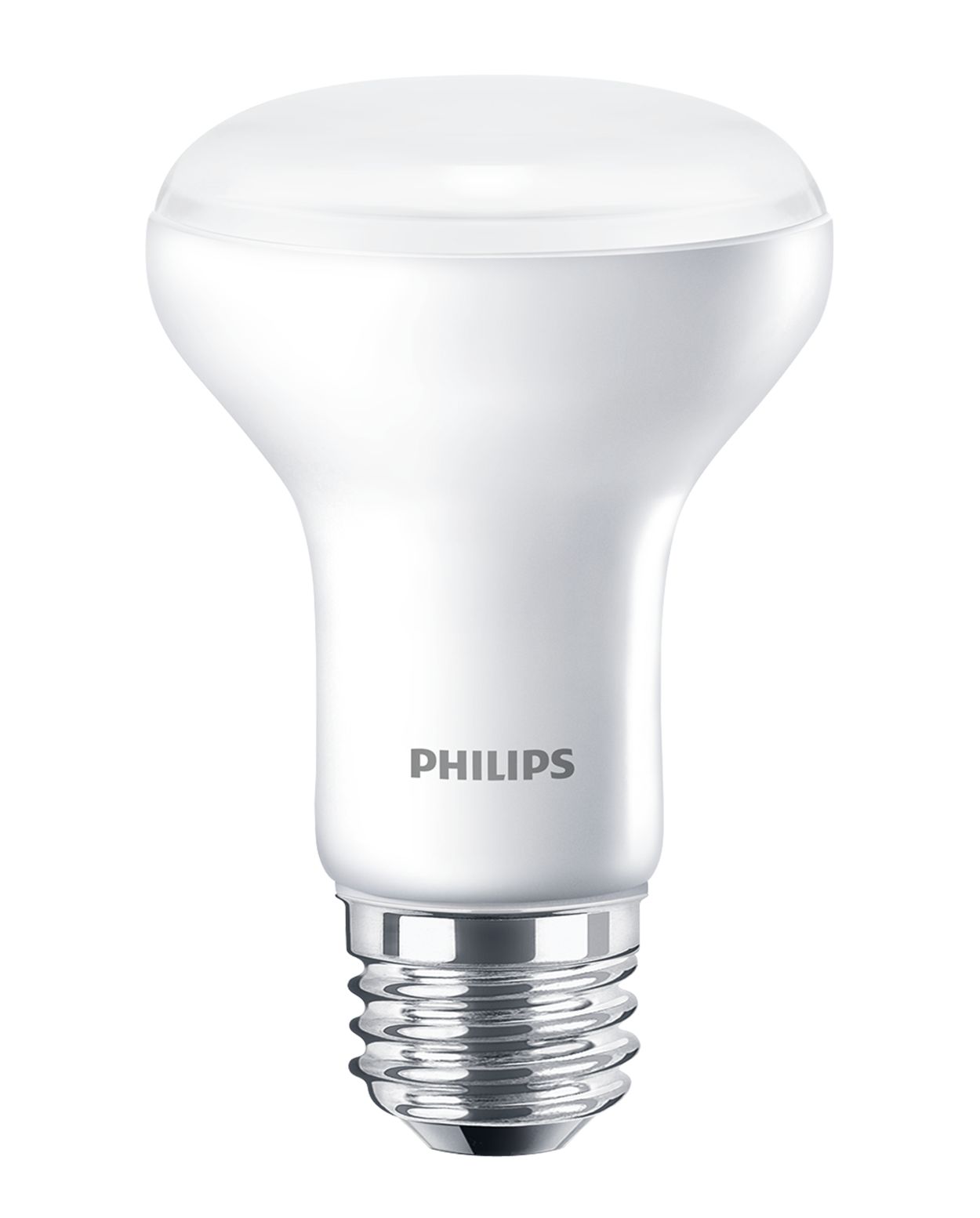

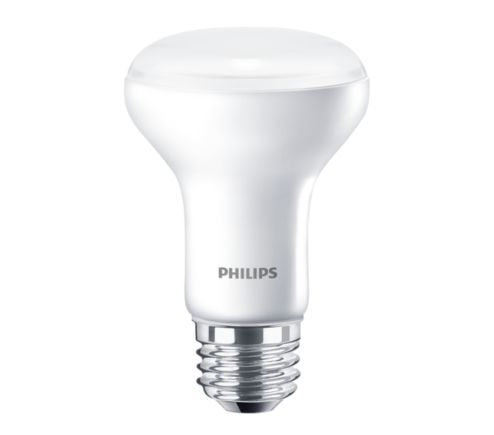

      LED R20

      5R20/MAS/927-22/P/E26/WG 6/1FB T20

      Order code: 456979

      Downloads

      Spec Sheet
      Size:712.0 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E26  [ Single Contact Medium Screw]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    15000 h
    Switching Cycle
    50000
    Tier
    MasterClass
    Light technical
    Color Code
    922-927  [ CCT of 2200K-2700K]
    Beam Angle (Nom)
    90 °
    Initial lumen (Nom)
    450 lm
    Color Designation
    Warm White (WW)
    Correlated Color Temperature (Nom)
    2200 K
    2700 K
    Luminous Efficacy (rated) (Nom)
    90.00 lm/W
    Color Consistency
    <4
    Color Rendering Index (Nom)
    90
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    60 Hz
    Power (Rated) (Nom)
    5 W
    Lamp Current (Nom)
    65 mA
    Wattage Equivalent
    50 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.7
    Voltage (Nom)
    120 V
    Temperature
    T-Case Maximum (Nom)
    167 °F
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Bulb Finish
    Frosted
    Bulb Material
    Plastic
    Bulb Shape
    R20  [ R 63mm]
    Approval and application
    Energy Consumption kWh/1000 h
    - kWh
    Energy Certifications
    Energy Star
    Product data
    Order product name
    5R20/MAS/927-22/P/E26/WG 6/1FB T20
    EAN/UPC - Product
    046677456979
    Order code
    456979
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929002008904
    Net Weight (Piece)
    0.077 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw R 63mm Frosted
    Single Contact Medium Screw R 63mm Frosted
    E26
    E26
    Performance Diagrams
    LEDBulbs BR30 120V 19-120W 1200lm 2700K E26 D
    LEDBulbs BR30 120V 19-120W 1200lm 2700K E26 D
    LEDBulbs BR30 120V 19-120W 1200lm 2700K E26 D
    LEDBulbs BR30 120V 19-120W 1200lm 2700K E26 D
    Photometrics
    LEDBulbs_R20 120V 5-45W 450lm 90D 2700-2200K E26
    LEDBulbs_R20 120V 5-45W 450lm 90D 2700-2200K E26
    LEDBulbs_R20 120V 5-45W 450lm 90D 2700-2200K E26
    LEDBulbs_R20 120V 5-45W 450lm 90D 2700-2200K E26
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LEDBulbs_R20 120V 5-45W 450lm 90D 2700-2200K E26 IES 5.1 kB
