    • Attractive, dimmable, and afforadlble LED BR30 lamp solution

      7.2BR30/COR/940/P/E26/DIM 6/1FB T20
      LED
      7.2BR30/COR/940/P/E26/DIM 6/1FB T20

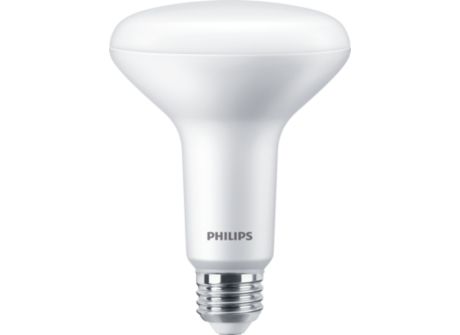

      LED BR30

      7.2BR30/COR/940/P/E26/DIM 6/1FB T20

      Downloads

      Spec Sheet
      Size:692.3 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    82 mA
    Warm-up time to 60% light
    0.5 s
    Voltage (Nom)
    120 V
    Power Factor (Fraction)
    0.7
    Wattage Equivalent
    65 W
    Line Frequency
    60 Hz
    Power Consumption
    7.2 W
    Input Frequency
    60 Hz
    Starting Time (Nom)
    0.5 s
    Approval and Application
    Energy Certifications
    Energy Star
    Energy Consumption kWh/1000 h
    - kWh
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    EAN/UPC - Case
    50046677545913
    Order code
    545913
    Numerator - Packs per outer box
    6
    Material number (12NC)
    929002032204
    Numerator - Quantity Per Pack
    1
    Order product name
    7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Controls and Dimming
    Dimmable
    Yes
    General Information
    Cap-Base
    E26  [Single Contact Medium Screw]
    Switching Cycle
    50,000
    Lighting Technology
    LED
    Nominal lifetime
    15,000 hour(s)
    Mechanical and Housing
    Bulb Shape
    BR30
    Bulb Finish
    Frosted
    Bulb Material
    Plastic
    Temperature
    T-Case Maximum (Nom)
    167 °F
    Light Technical
    Luminous Flux
    650 lumen
    Luminous Efficacy (rated) (Nom)
    90.00 lm/W
    Color rendering index (CRI)
    90
    Correlated Color Temperature (Nom)
    4000 K
    Beam Angle (Nom)
    90 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Designation
    Cool White (CW)
    Color Consistency
    <4
    Color Code
    940  [CCT of 4000K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw BR30 Frosted
    Single Contact Medium Screw BR30 Frosted
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Lumen Maintenance Diagram - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Life Expectancy Diagram - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Life Expectancy Diagram - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Photometrics
    Spectral Power Distribution Colour - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Spectral Power Distribution Colour - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Light Distribution Diagram - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Light Distribution Diagram - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 7.2BR30/COR/940/P/E26/DIM 6/1FB T20 IES 58.8 kB
