      12AR111/LED/930/S8/DIM/EC 12V 6/1FB
      LED

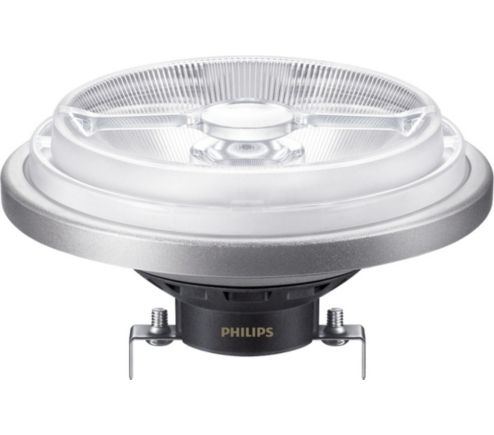

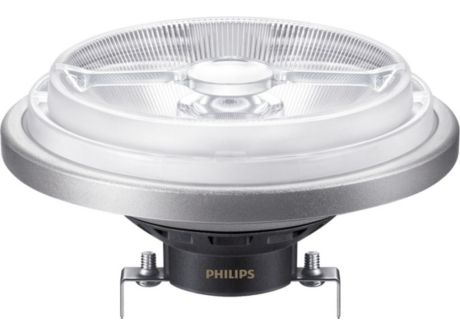

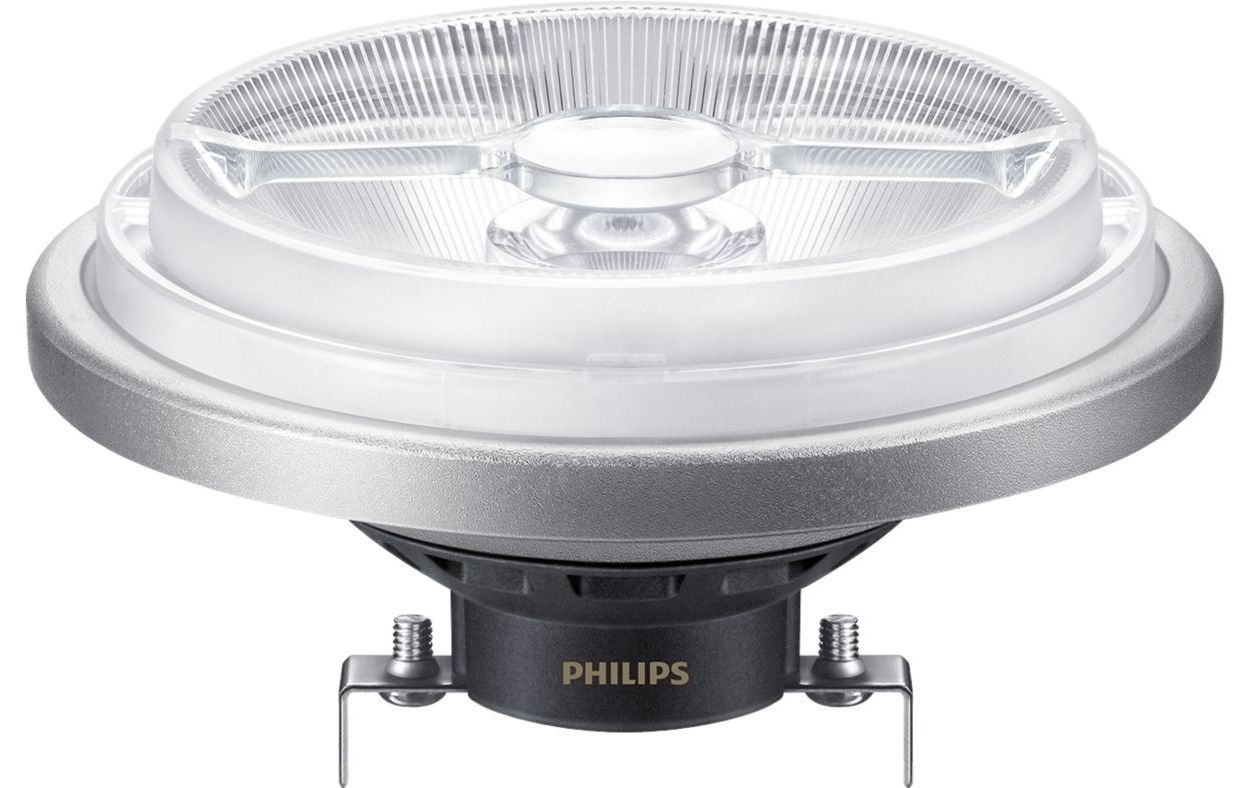

      12AR111/LED/930/S8/DIM/EC 12V 6/1FB
      LED AR111

      12AR111/LED/930/S8/DIM/EC 12V 6/1FB

      Order code: 552406

      Downloads

      Spec Sheet
      Size:601.7 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G53  [ G53]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    40000 h
    Switching Cycle
    50000
    Light technical
    Color Code
    930  [ CCT of 3000K]
    Beam Angle (Nom)
    8 °
    Initial lumen (Nom)
    680 lm
    Luminous Intensity (Nom)
    8000 cd
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    56.00 lm/W
    Color Consistency
    <4
    Color Rendering Index (Nom)
    97
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    - Hz
    Power (Rated) (Nom)
    12 W
    Lamp Current (Nom)
    1300 mA
    Wattage Equivalent
    50 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.7
    Voltage (Nom)
    ac electronic 12 V
    Temperature
    T-Case Maximum (Nom)
    158 °F
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Bulb Finish
    Clear
    Bulb Material
    Plastic
    Bulb Shape
    AR111
    Approval and application
    Suitable For Accent Lighting
    Yes
    Energy Consumption kWh/1000 h
    - kWh
    Energy Certifications
    No
    Product data
    Order product name
    12AR111/LED/930/S8/DIM/EC 12V 6/1FB
    EAN/UPC - Product
    046677552404
    Order code
    552406
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929002238504
    Net Weight (Piece)
    0.353 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G53 AR111 Clear
    G53 AR111 Clear
    G53
    G53
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    LEDspots 50W G53 AR111 930 8D
    LEDspots 50W G53 AR111 930 8D
    LEDspots 50W G53 AR111 930 8D
    LEDspots 50W G53 AR111 930 8D
    LEDspots 50W G53 AR111 930
    LEDspots 50W G53 AR111 930
    LEDspots 50W G53 AR111 930 8D
    LEDspots 50W G53 AR111 930 8D
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LEDspots 50W G53 AR111 930 8D IES 10.0 kB
