    • Affordable LED replacements for compact fluorescent 4-pin & 2-pin lamps

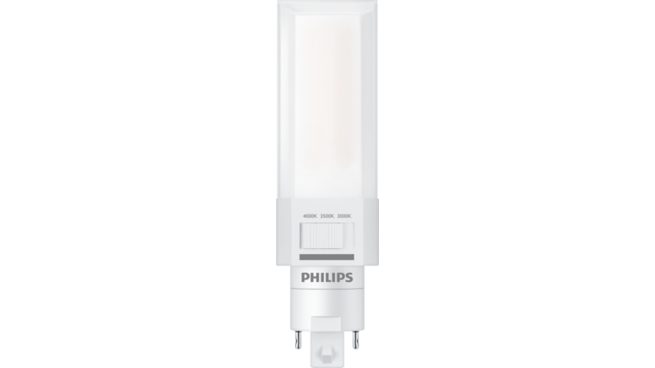

      11PL-C/T/COR/32H-3CCT/MF15/P/20/1
      LED
      11PL-C/T/COR/32H-3CCT/MF15/P/20/1
      PL-C/T

      11PL-C/T/COR/32H-3CCT/MF15/P/20/1

      Order code: 577916

      Downloads

      Spec Sheet
      Size:938.0 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G24Q  [ G24q]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    30000 h
    Switching Cycle
    50000
    Tier
    CorePro
    Light technical
    Color Code
    3000/3500/4000
    Beam Angle (Nom)
    120 °
    Initial lumen (Nom)
    1425/1450/1500 lm
    Color Designation
    3000/3500/4000
    Correlated Color Temperature (Nom)
    3000 K
    3500 K
    4000 K
    Luminous Efficacy (rated) (Nom)
    136.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    83
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    11 W
    Lamp Current (Max)
    98 mA
    Lamp Current (Min)
    39 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    UL Type
    Yes
    Power Factor (Nom)
    0.9
    Voltage (Nom)
    120-277 V
    Temperature
    T-Ambient (Max)
    113 °F
    T-Ambient (Min)
    -4 °F
    T-Storage (Range)
    -40 °C to 65 °C
    T-Storage (Max)
    149 °F
    T-Storage (Min)
    -40 °F
    T-Case Maximum (Nom)
    167 °F
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Bulb Finish
    Frosted
    Bulb Material
    Plastic
    Product Length
    7-7/8 in
    Bulb Shape
    Tube, single-ended
    Approval and application
    Energy Saving Product
    Yes
    Approbation Marks
    RoHS compliance
    UL certificate
    Application conditions
    Ambient temperature range
    -20 °C to 45 °C
    Product data
    Order product name
    11PL-C/T/COR/32H-3CCT/MF15/P/20/1
    EAN/UPC - Product
    046677577919
    Order code
    577916
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    20
    Material Nr. (12NC)
    929003477804
    Net Weight (Piece)
    0.209 lb
    Model Number
    9290034778

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G24q Tube, single-ended Frosted
    G24q Tube, single-ended Frosted
    Performance Diagrams
    LEDtube_PLCT_11W_30K_LumenVsTc-LMP
    LEDtube_PLCT_11W_30K_LumenVsTc-LMP
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    LifetimeVsTc
    LifetimeVsTc
    FailureRate
    FailureRate
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram
    Light Distribution Diagram
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES file IES 2.4 kB
