    • Affordable LED replacements for compact fluorescent 4-pin & 2-pin lamps

      8PL-C/T/COR/26V-3CCT/MF10/P/20/1
      LED

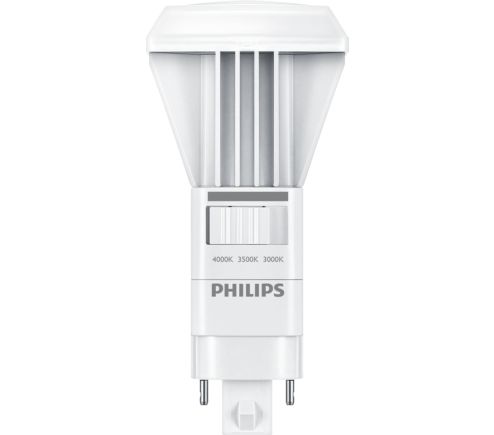

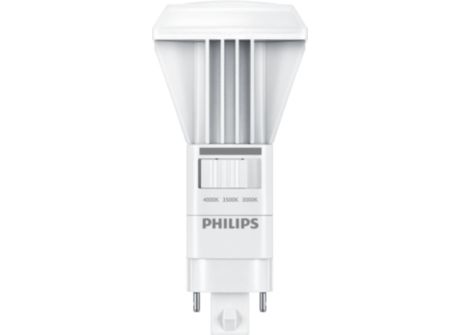

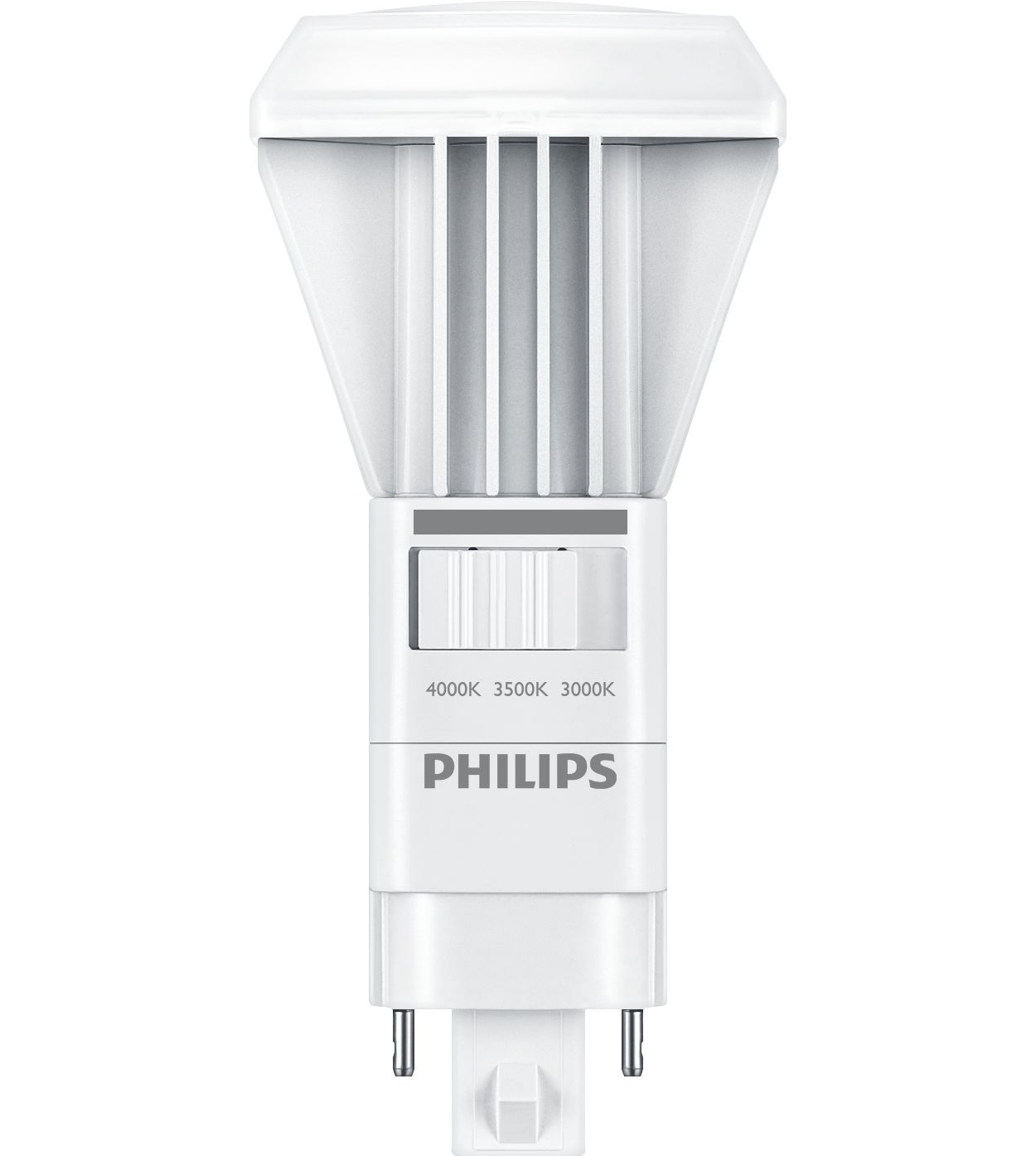

      8PL-C/T/COR/26V-3CCT/MF10/P/20/1
      PL-C/T

      8PL-C/T/COR/26V-3CCT/MF10/P/20/1

      Order code: 577908

      Downloads

      Spec Sheet
      Size:980.1 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G24Q  [ G24q]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    30000 h
    Switching Cycle
    50000X
    Technical Type
    LEDTECH-LOV
    Light technical
    Color Code
    3000/3500/4000
    Beam Angle (Nom)
    120 °
    Initial lumen (Nom)
    975/1000/1050 lm
    Color Designation
    3000/3500/4000
    Correlated Color Temperature (Nom)
    3000 K
    3500 K
    4000 K
    Luminous Efficacy (rated) (Nom)
    131.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    83
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    8 W
    Lamp Current (Max)
    75 mA
    Lamp Current (Min)
    30 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    UL Type
    Yes
    Power Factor (Nom)
    0.9
    Voltage (Nom)
    120-277 V
    Temperature
    T-Ambient (Max)
    45 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    65 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Nom)
    65 °C
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Bulb Finish
    Frosted
    Bulb Material
    Plastic
    Product Length
    4 in
    Bulb Shape
    Tube, single-ended
    Approval and application
    Energy Saving Product
    Yes
    Approbation Marks
    RoHS compliance
    UL certificate
    Product data
    Order product name
    8PL-C/T/COR/26V-3CCT/MF10/P/20/1
    EAN/UPC - Product
    046677577902
    Order code
    577908
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    20
    Material Nr. (12NC)
    929003477704
    Net Weight (Piece)
    0.105 kg
    Model Number
    9290034777

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G24q Tube, single-ended Frosted
    G24q Tube, single-ended Frosted
    Performance Diagrams
    LEDtube_PLCT_8W_30K_LumenVsTc-LMP
    LEDtube_PLCT_8W_30K_LumenVsTc-LMP
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    FailureRate
    FailureRate
    LEDtube_30K_4060_LifetimeVsTc-LED
    LEDtube_30K_4060_LifetimeVsTc-LED
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram
    Light Distribution Diagram
