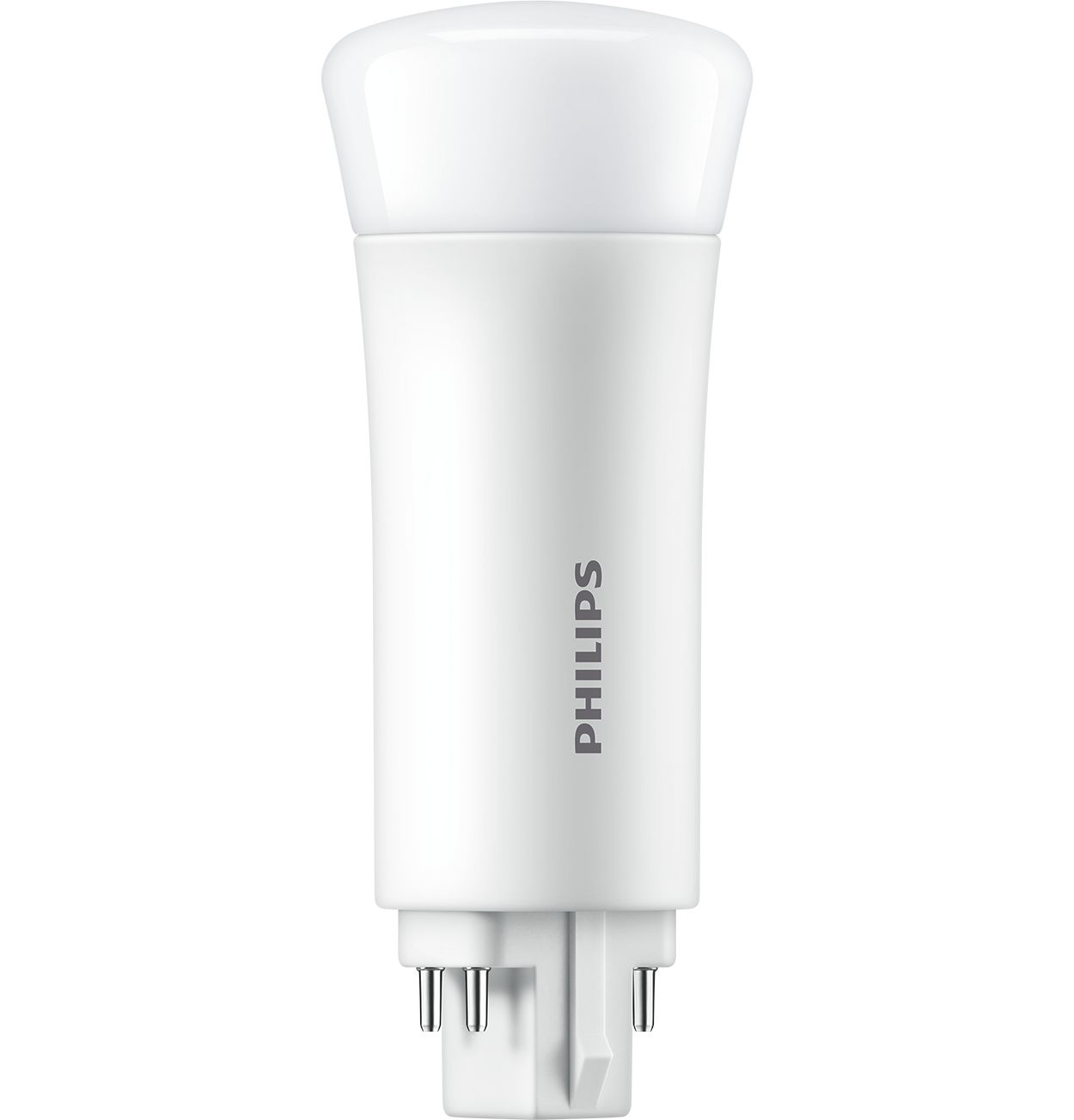

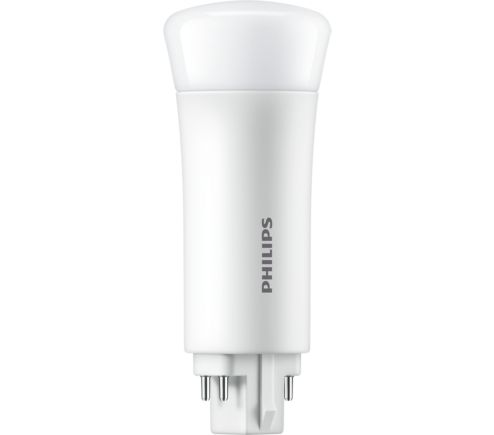

5.5PL-C/LED/13V/827/IF5/P/4P 20/1

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Voltage (Nom)	14-60 V
Power Factor (Fraction)	0.9
Wattage Equivalent	13 W
Line Frequency	25000-100000 Hz
Power Consumption	5.5 W
Input Frequency	25000-100000 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Energy Saving Product	Yes
Approval Marks	RoHS compliance	UL certificate
Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes

Product Data

Full product name	5.5PL-C/LED/13V/827/IF5/P/4P 20/1
EAN/UPC - Case	50046677532432
Order code	532432
Numerator - Packs per outer box	20
Material number (12NC)	929001885704
Numerator - Quantity Per Pack	1
Order product name	5.5PL-C/LED/13V/827/IF5/P/4P 20/1

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb Shape	Tube, single-ended
Product Length	3-15/16 inch
Bulb Finish	Frosted
Bulb Material	Plastic

General Information

Cap-Base	G24Q  [G24q]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	50,000 hour(s)

Temperature

T-Case Maximum (Nom)	158 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Luminous Flux	520 lumen
Luminous Efficacy (rated) (Nom)	94.00 lm/W
Color rendering index (CRI)	82
Correlated Color Temperature (Nom)	2700 K
Beam Angle (Nom)	150 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Warm White (WW)
Color Consistency	<6
Color Code	827  [CCT of 2700K]
