    • Affordable LED replacements for compact fluorescent 4-pin & 2-pin lamps

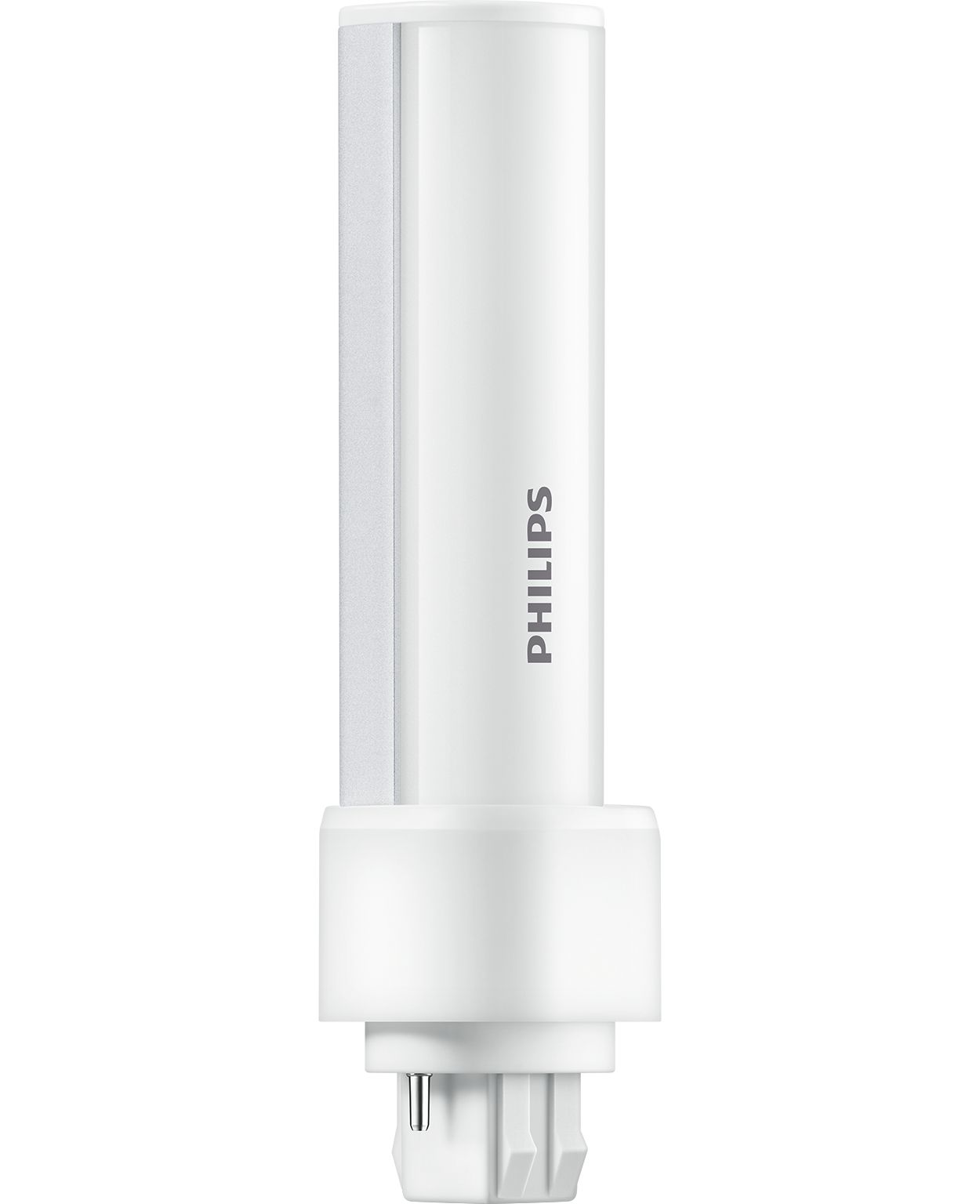

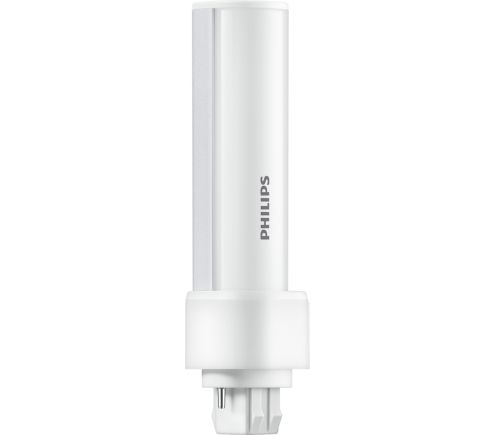

      5PL-C/LED/13H/840/IF5/P/2P 20/1
      LED
      5PL-C/LED/13H/840/IF5/P/2P 20/1
      PL-C/T

      5PL-C/LED/13H/840/IF5/P/2P 20/1

      Downloads

      Spec Sheet
      Size:716.3 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Warm-up time to 60% light
    0.5 s
    Voltage (Nom)
    120-277 V
    Power Factor (Fraction)
    0.9
    Wattage Equivalent
    13 W
    Line Frequency
    50 to 60 Hz
    Power Consumption
    5 W
    Input Frequency
    50 to 60 Hz
    Starting Time (Nom)
    0.5 s
    Approval and Application
    Energy Saving Product
    Yes
    Approval Marks
    UL certificate
    RoHS compliance
    Energy Consumption kWh/1000 h
    - kWh
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    5PL-C/LED/13H/840/IF5/P/2P 20/1
    EAN/UPC - Case
    50046677532340
    Order code
    532341
    Numerator - Packs per outer box
    20
    Material number (12NC)
    929001884804
    Numerator - Quantity Per Pack
    1
    Order product name
    5PL-C/LED/13H/840/IF5/P/2P 20/1
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    Tube, single-ended
    Product Length
    4-13/16 inch
    Bulb Finish
    Frosted
    Bulb Material
    Plastic
    General Information
    Cap-Base
    GX23-2  [GX23-2]
    Switching Cycle
    50,000
    Lighting Technology
    LED
    Nominal lifetime
    50,000 hour(s)
    Temperature
    T-Case Maximum (Nom)
    158 °F
    Ambient temperature range
    -20 °C to 45 °C
    Light Technical
    Luminous Flux
    580 lumen
    Luminous Efficacy (rated) (Nom)
    116.00 lm/W
    Color rendering index (CRI)
    82
    Correlated Color Temperature (Nom)
    4000 K
    Beam Angle (Nom)
    150 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Designation
    Cool White (CW)
    Color Consistency
    <6
    Color Code
    840  [CCT of 4000K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     GX23-2 Tube, single-ended Frosted
    GX23-2 Tube, single-ended Frosted
    GX23-2
    GX23-2
    Performance Diagrams
    Lumen Maintenance Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Lumen Maintenance Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Lumen Maintenance Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Lumen Maintenance Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Life Expectancy Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Life Expectancy Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Life Expectancy Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Life Expectancy Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Life Expectancy Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Life Expectancy Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Spectral Power Distribution Colour - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Light Distribution Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Light Distribution Diagram - 5PL-C/LED/13H/840/IF5/P/2P 20/1
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 5PL-C/LED/13H/840/IF5/P/2P 20/1 IES 10.1 kB
