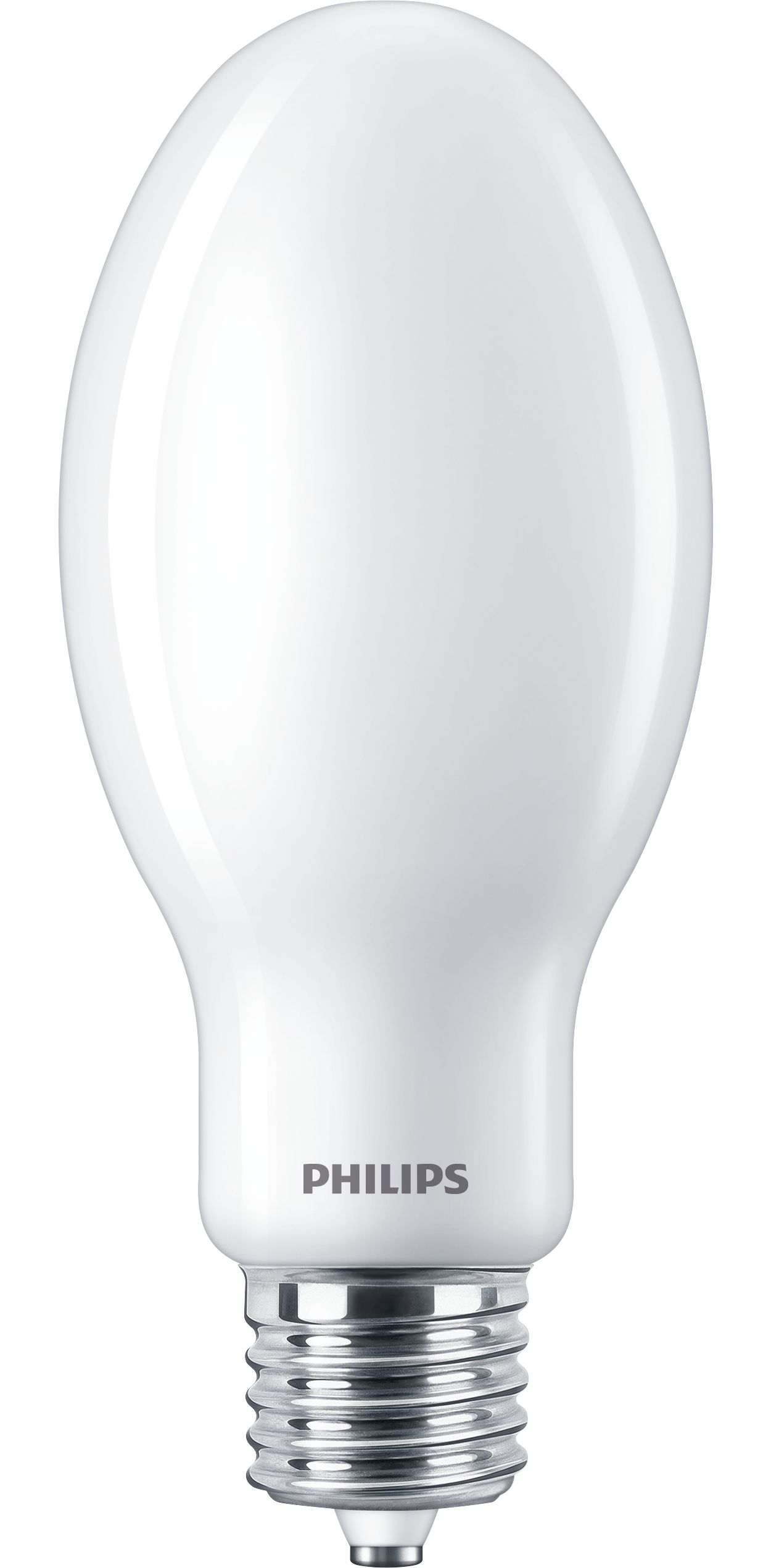

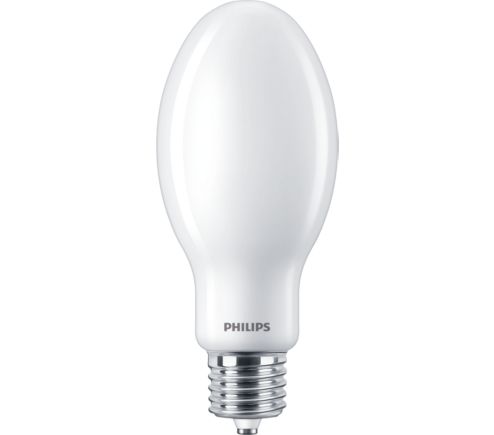

34GC/LED/850/ND EX39 BB 6/1

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	290 mA
Voltage (Nom)	120-277 V
Power Factor (Fraction)	0.9
Wattage Equivalent	150 W
Line Frequency	50 to 60 Hz
Power Consumption	34 W
Input Frequency	50 to 60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

EU RoHS compliant

Yes

Product Data

Full product name	34GC/LED/850/ND EX39 BB 6/1
EAN/UPC - Case	50046677578935
Order product name	34GC/LED/850/ND EX39 BB 6/1
Order code	578930
Numerator - Packs per outer box	6
Material number (12NC)	929003508504
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	ED90  [ED 90mm]
Bulb Finish	Frosted
Bulb Material	Glass

General Information

Cap-Base	EX39  [Exclusionary Mogul Screw]
Switching Cycle	15,000
Lighting Technology	LED
Nominal lifetime	25,000 hour(s)

Temperature

T-Case Maximum (Nom)	136 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Luminous Flux	5,000 lumen
Luminous Efficacy (rated) (Nom)	147.00 lm/W
Color rendering index (CRI)	80
Correlated Color Temperature (Nom)	5000 K
Beam Angle (Nom)	300 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Daylight
Color Consistency	<6
Color Code	850  [CCT of 5000K]
