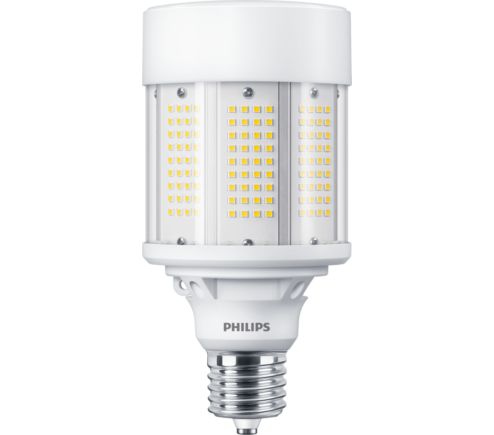

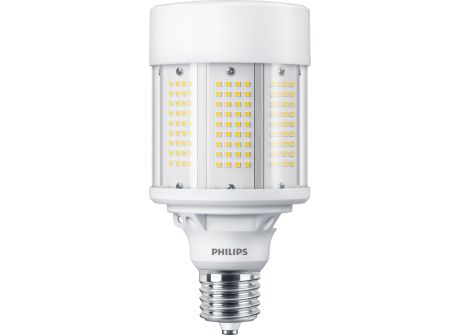

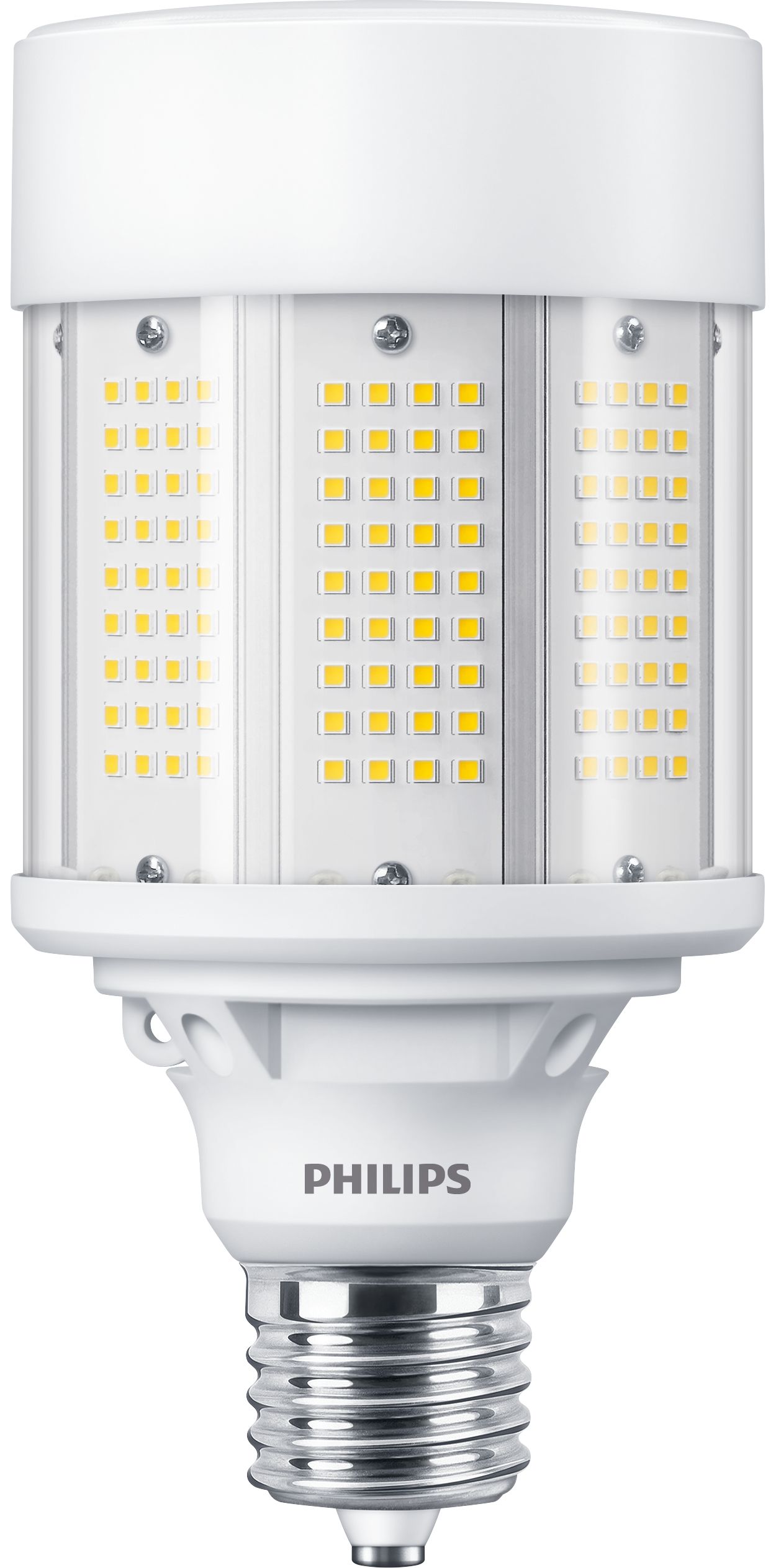

150CC/LED/840/LS EX39 G2 BB 277-480V 3/1

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	1.5 s
Lamp Current (Nom)	600 mA
Voltage (Nom)	277-480 V
Power Factor (Fraction)	0.9
Starting Time (Nom)	1.5 s
Line Frequency	50 to 60 Hz
Power Consumption	150 W
Input Frequency	50 to 60 Hz

Approval and Application

EU RoHS compliant

Yes

Product Data

Full product name	150CC/LED/840/LS EX39 G2 BB 277-480V 3/1
EAN/UPC - Case	50046677579024
Order product name	150CC/LED/840/LS EX39 G2 BB 277-480V 3/1
Order code	579029
Numerator - Packs per outer box	3
Material number (12NC)	929003507204
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape	Corncob
Bulb Finish	Clear
Bulb Material	Plastic

General Information

Cap-Base	EX39  [Exclusionary Mogul Screw]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	50,000 hour(s)

Temperature

T-Case Maximum (Nom)	101 °F
Ambient temperature range	-20 °C to 55 °C

Light Technical

Luminous Flux	23,500 lumen
Color rendering index (CRI)	80
Luminous Efficacy (rated) (Nom)	156 lm/W
Correlated Color Temperature (Nom)	4000 K
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Cool White (CW)
Color Consistency	ANSI 4000K quadrangle
Color Code	840  [CCT of 4000K]
