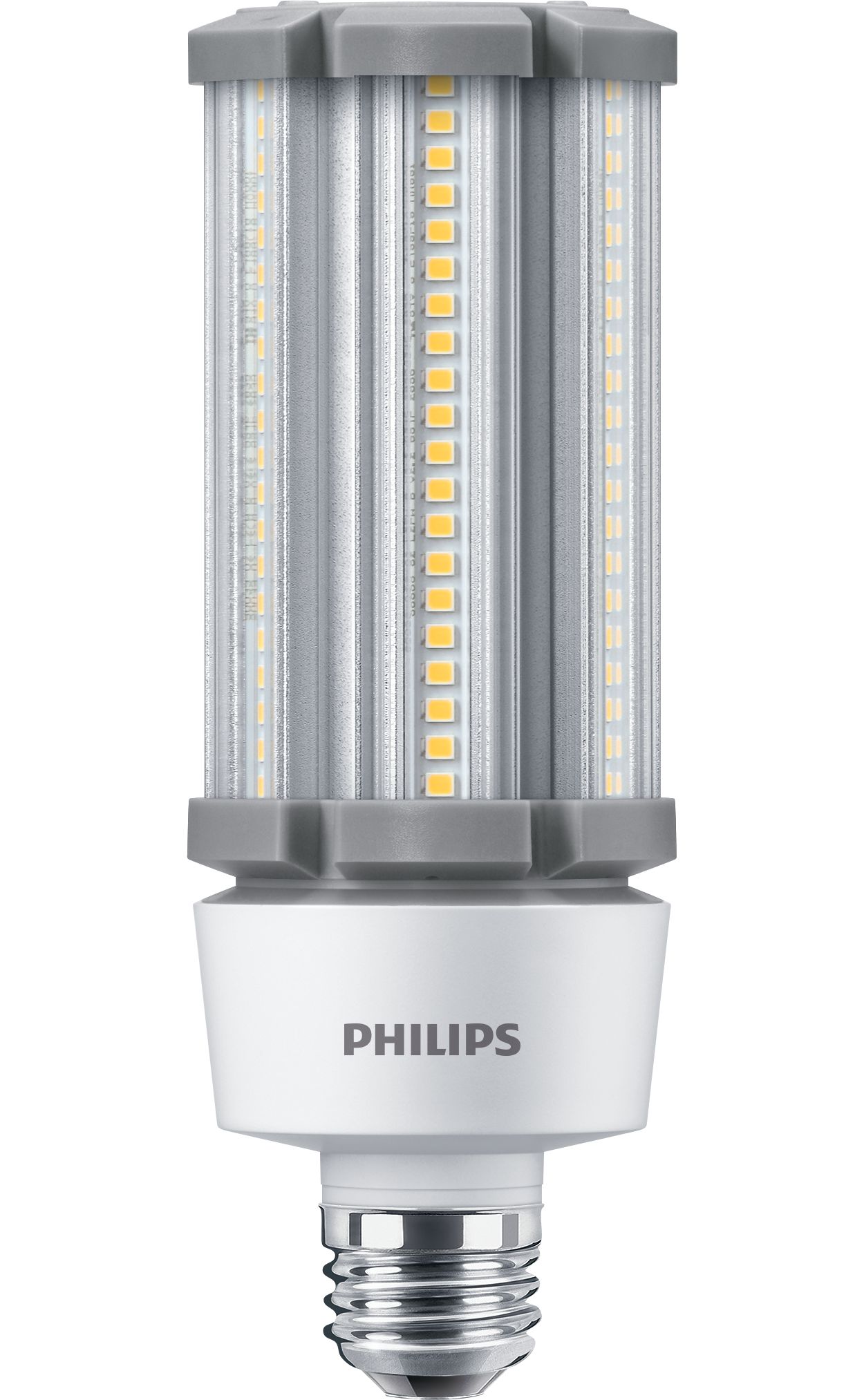

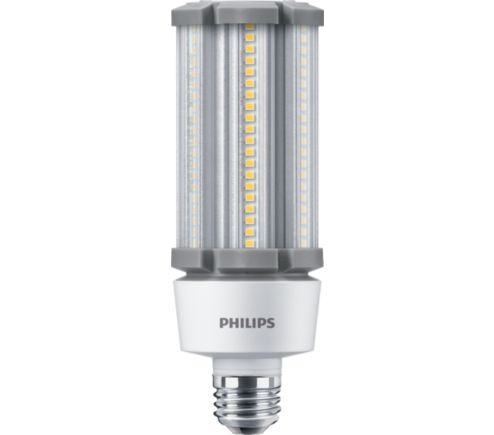

      27CC/LED/840/ND E26 G2 BB 6/1
      LED
      27CC/LED/840/ND E26 G2 BB 6/1
      LED Corn Cobs

      27CC/LED/840/ND E26 G2 BB 6/1

      Downloads

      Spec Sheet
      Size:756.3 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Warm-up time to 60% light
    1 s
    Lamp Current (Nom)
    300 mA
    Voltage (Nom)
    100-277 V
    Power Factor (Fraction)
    0.9
    Starting Time (Nom)
    1 s
    Line Frequency
    50 to 60 Hz
    Power Consumption
    27 W
    Input Frequency
    50 to 60 Hz
    Approval and Application
    Energy Consumption kWh/1000 h
    27 kWh
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    27CC/LED/840/ND E26 G2 BB 6/1
    EAN/UPC - Case
    50046677559675
    Order product name
    27CC/LED/840/ND E26 G2 BB 6/1
    Order code
    559674
    Numerator - Packs per outer box
    6
    Material number (12NC)
    929002395604
    Numerator - Quantity Per Pack
    1
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    Corncob
    Bulb Finish
    Clear
    Bulb Material
    Plastic
    General Information
    Cap-Base
    E26  [Single Contact Medium Screw]
    Switching Cycle
    50,000
    Lighting Technology
    LED
    Nominal lifetime
    50,000 hour(s)
    Temperature
    T-Case Maximum (Nom)
    140 °F
    Ambient temperature range
    -20 °C to 45 °C
    Light Technical
    Luminous Flux
    3,700 lumen
    Color rendering index (CRI)
    80
    Luminous Efficacy (rated) (Nom)
    137.00 lm/W
    Correlated Color Temperature (Nom)
    4000 K
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Designation
    Cool White (CW)
    Color Consistency
    ANSI 4000K quadrangle
    Color Code
    840  [CCT of 4000K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw Corncob Clear
    Single Contact Medium Screw Corncob Clear
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram - 27CC/LED/840/ND E26 G2 BB 6/1
    Lumen Maintenance Diagram - 27CC/LED/840/ND E26 G2 BB 6/1
    Life Expectancy Diagram - 27CC/LED/840/ND E26 G2 BB 6/1
    Life Expectancy Diagram - 27CC/LED/840/ND E26 G2 BB 6/1
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - 27CC/LED/840/ND E26 G2 BB 6/1
    Spectral Power Distribution Colour - 27CC/LED/840/ND E26 G2 BB 6/1
    Light Distribution Diagram - 27CC/LED/840/ND E26 G2 BB 6/1
    Light Distribution Diagram - 27CC/LED/840/ND E26 G2 BB 6/1
