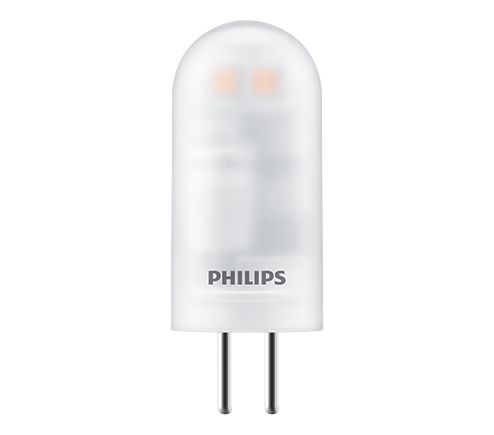

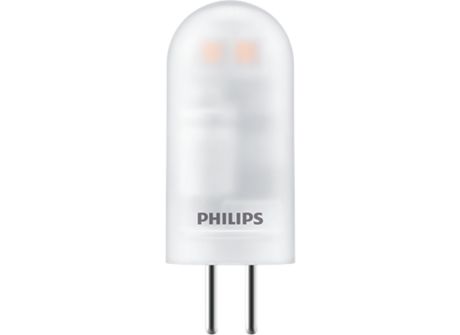

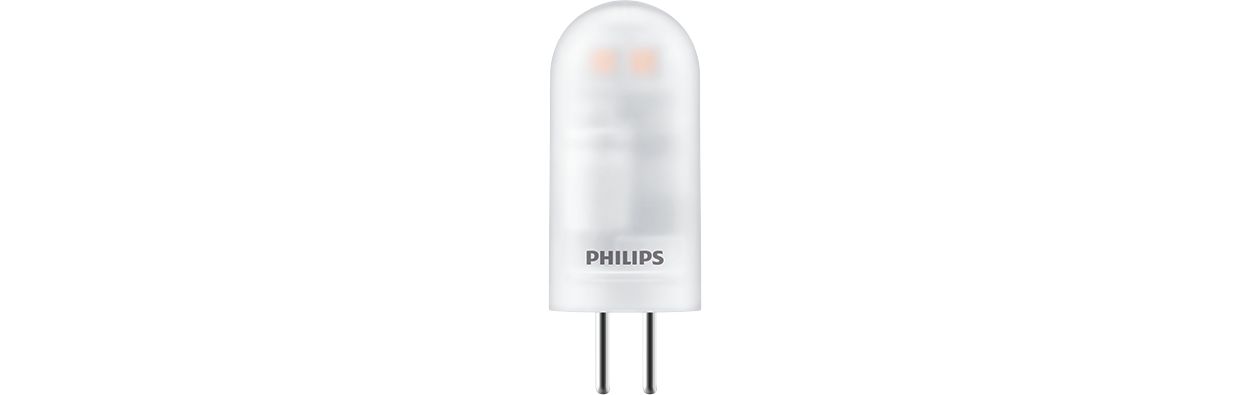

      1T3/G4/830/ND/12V 6/1PF
      LED
      1T3/G4/830/ND/12V 6/1PF
      LED Specialty Lamps

      1T3/G4/830/ND/12V 6/1PF

      Order code: 567180

      Downloads

      Spec Sheet
      Size:561.9 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G4  [ G4]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    15000 h
    Switching Cycle
    50000
    Light technical
    Color Code
    830  [ CCT of 3000K]
    Initial lumen (Nom)
    100 lm
    Color Designation
    White (WH)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    100.00 lm/W
    Color Consistency
    <6
    Color Rendering Index (Nom)
    80
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    - Hz
    Power (Rated) (Nom)
    1 W
    Lamp Current (Nom)
    140 mA
    Wattage Equivalent
    10 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.5
    Voltage (Nom)
    12 V
    Temperature
    T-Case Maximum (Nom)
    123.8 °F
    Controls and dimming
    Dimmable
    No
    Mechanical and housing
    Bulb Shape
    Capsule
    Approval and application
    Suitable For Accent Lighting
    No
    Energy Certifications
    No
    Product data
    Order product name
    1T3/G4/830/ND/12V 6/1PF
    EAN/UPC - Product
    046677567187
    Order code
    567180
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    929001844023
    Net Weight (Piece)
    0.009 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G4 Capsule Frosted
    G4 Capsule Frosted
    G4
    G4
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram
    Light Distribution Diagram
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES file IES 34.9 kB
