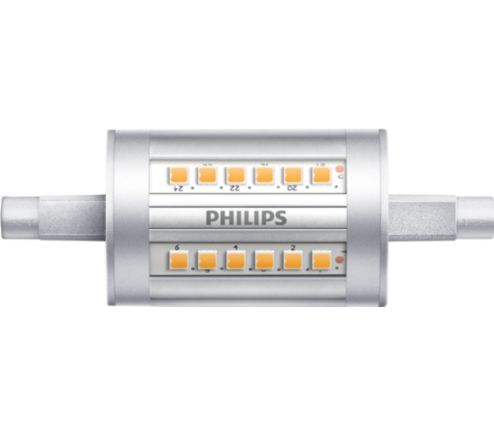

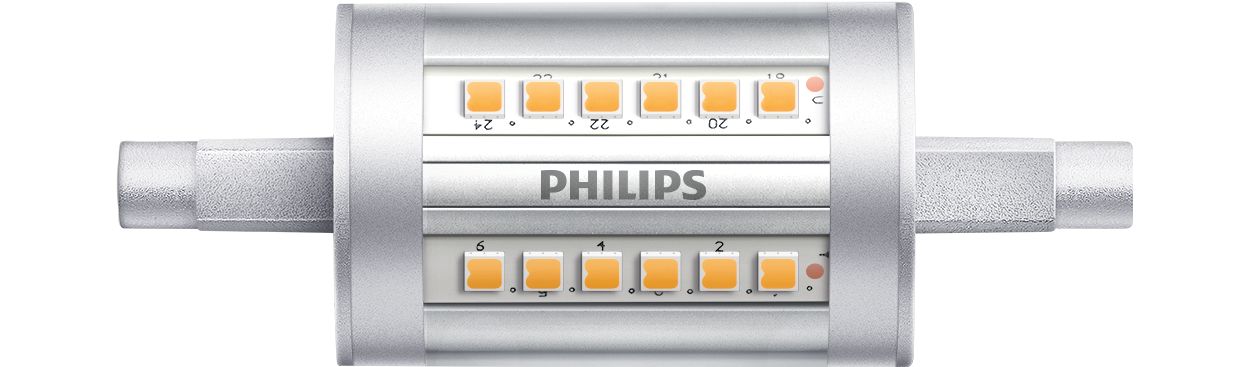

7.5R7S/PER/830/ND/120V 4/1PF

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	115 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.5
Wattage Equivalent	100 W
Starting Time (Nom)	0.5 s
Line Frequency	60 Hz
Power Consumption	7.5 W
Input Frequency	60 Hz

Approval and Application

Suitable For Accent Lighting	No
Energy Certifications	No
EU RoHS compliant	Yes

Product Data

Full product name	7.5R7S/PER/830/ND/120V 4/1PF
EAN/UPC - Case	50046677570915
Order product name	7.5R7S/PER/830/ND/120V 4/1PF
Order code	570911
Numerator - Packs per outer box	4
Material number (12NC)	929001357535
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape

Others

General Information

Cap-Base	R7S  [R7s]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)

Temperature

T-Case Maximum (Nom)

212 °F

Light Technical

Luminous Flux	800 lumen
Luminous Efficacy (rated) (Nom)	106.00 lm/W
Color rendering index (CRI)	80
Correlated Color Temperature (Nom)	3000 K
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	White (WH)
Color Consistency	<6
Color Code	830  [CCT of 3000K]
