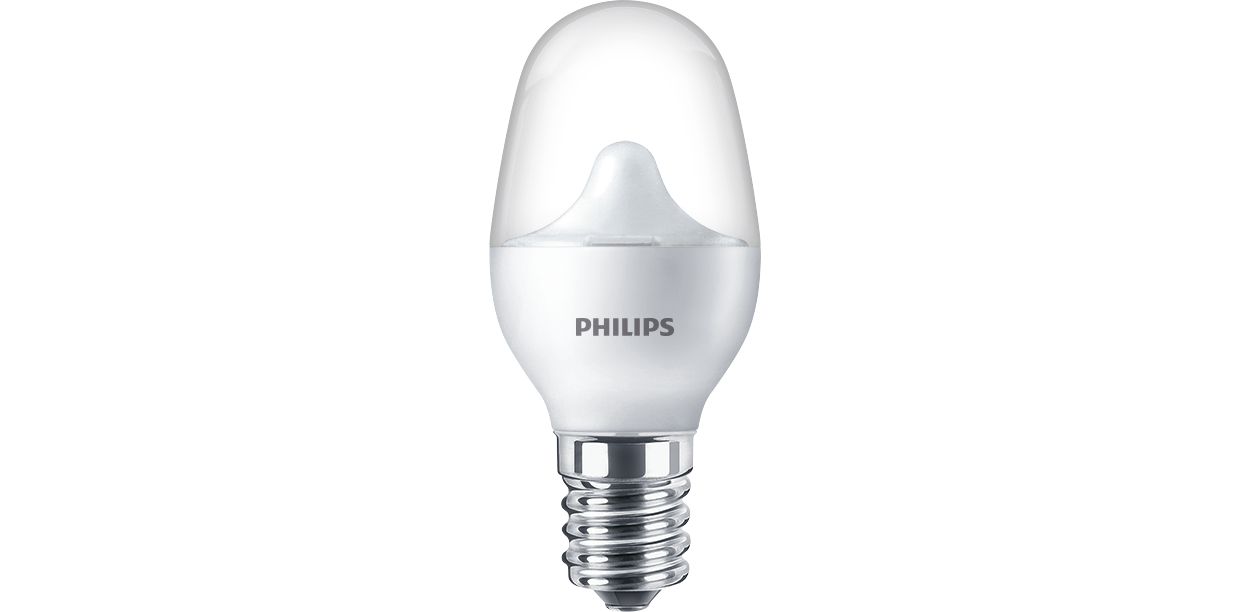

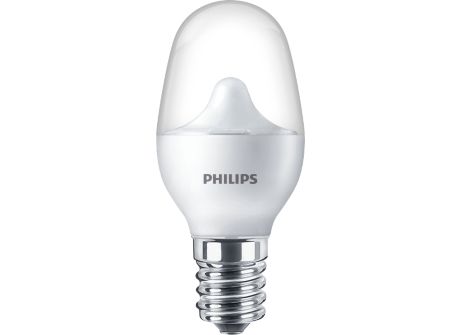

      0.5C7/LEDnight light/E12/MilkyND120V 2PF
      LED
      0.5C7/LEDnight light/E12/MilkyND120V 2PF
      LED Specialty Lamps

      0.5C7/LEDnight light/E12/MilkyND120V 2PF

      Downloads

      Spec Sheet
      Size:507.4 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Warm-up time to 60% light
    0.5 s
    Lamp Current (Nom)
    15 mA
    Voltage (Nom)
    120 V
    Power Factor (Fraction)
    0.2
    Starting Time (Nom)
    0.5 s
    Line Frequency
    60 Hz
    Power Consumption
    0.5 W
    Input Frequency
    60 Hz
    Approval and Application
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Order code
    574038
    EAN/UPC - Case
    50046677574036
    Order product name
    0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Numerator - Packs per outer box
    6
    Material number (12NC)
    929001224613
    Numerator - Quantity Per Pack
    1
    Controls and Dimming
    Dimmable
    No
    General Information
    Cap-Base
    E12  [Candelabra Screw]
    Switching Cycle
    20,000
    Lighting Technology
    LED
    Nominal lifetime
    15,000 hour(s)
    Mechanical and Housing
    Bulb Shape
    Others
    Bulb Finish
    Frosted
    Temperature
    T-Case Maximum (Nom)
    194 °F
    Ambient temperature range
    -20 °C to 45 °C
    Light Technical
    Luminous Flux
    30 lumen
    Luminous Efficacy (rated) (Nom)
    60 lm/W
    Color rendering index (CRI)
    80
    Correlated Color Temperature (Nom)
    2700 K
    Color Designation
    Warm White (WW)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Consistency
    ANSI
    Color Code
    827  [CCT of 2700K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Candelabra Screw Others Frosted
    Candelabra Screw Others Frosted
    E12
    E12
    Performance Diagrams
    Lumen Maintenance Diagram - 0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Lumen Maintenance Diagram - 0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Life Expectancy Diagram - 0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Life Expectancy Diagram - 0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram - 0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Light Distribution Diagram - 0.5C7/LEDnight light/E12/MilkyND120V 2PF
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 0.5C7/LEDnight light/E12/MilkyND120V 2PF IES 3.5 kB
