    • Mains-voltage linear R7S with very high light output

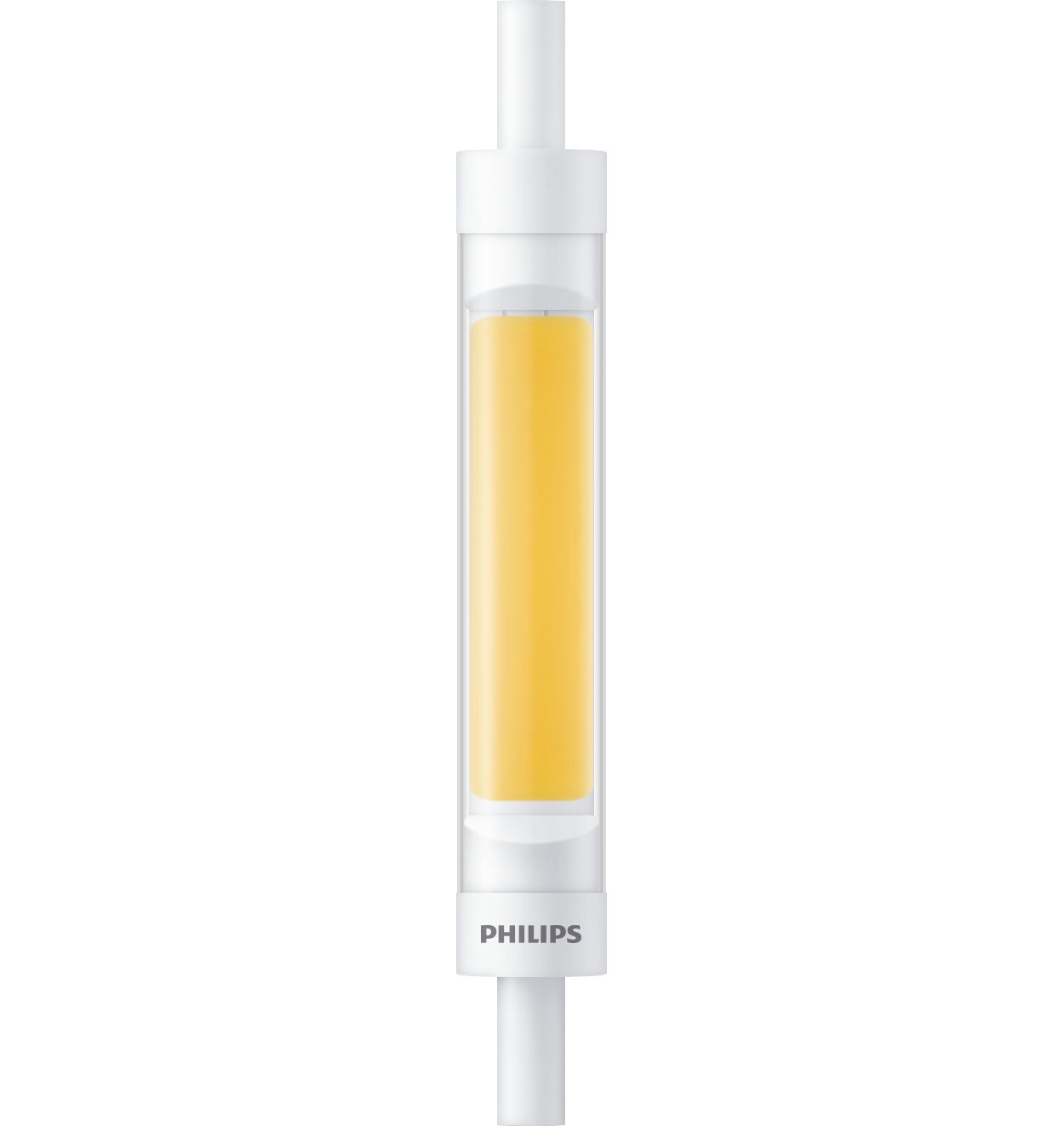

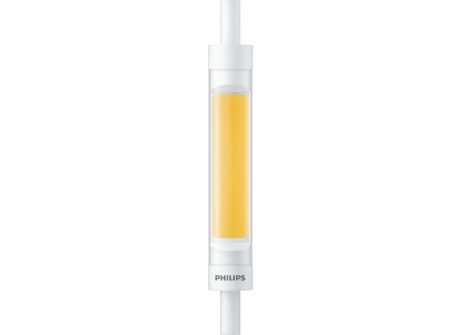

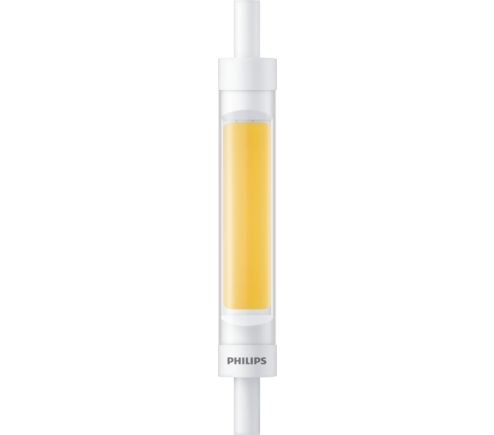

      CorePro R7S 118mm 7.2-60W 840
      LED
      CorePro R7S 118mm 7.2-60W 840
      CorePro LEDlinear MV

      CorePro R7S 118mm 7.2-60W 840

      Downloads

      Spec Sheet
      Size:751.3 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Warm-up time to 60% light
    0.5 s
    Lamp Current (Nom)
    40 mA
    Voltage (Nom)
    220-240 V
    Power Factor (Fraction)
    0.5
    Wattage Equivalent
    60 W
    Line Frequency
    50 to 60 Hz
    Power Consumption
    7.2 W
    Input Frequency
    50 to 60 Hz
    Starting Time (Nom)
    0.5 s
    Approval and Application
    Suitable For Accent Lighting
    No
    CE mark
    Yes
    Energy Efficiency Class
    E
    Energy Consumption kWh/1000 h
    8 kWh
    EPREL Registration Number
    624211
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    CorePro R7S 118mm 7.2-60W 840
    EAN/UPC - Case
    8719514304000
    Order code
    929002495102
    Numerator - Packs per outer box
    10
    Full product code
    871951430399700
    Material number (12NC)
    929002495102
    Numerator - Quantity Per Pack
    1
    Order product name
    CorePro R7S 118mm 7.2-60W 840
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    Linear
    Bulb Finish
    Clear
    General Information
    Cap-Base
    R7S  [R7s]
    Switching Cycle
    8,000
    Lighting Technology
    LED
    Flux measurement reference
    Sphere
    Nominal lifetime
    15,000 hour(s)
    Temperature
    T-Case Maximum (Nom)
    230 °F
    Light Technical
    Luminous Flux
    850 lumen
    Luminous Efficacy (rated) (Nom)
    118.00 lm/W
    Color rendering index (CRI)
    80
    Correlated Color Temperature (Nom)
    4000 K
    Color Designation
    Cool White (CW)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Consistency
    <6
    Color Code
    840  [CCT of 4000K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     R7s Linear Clear
    R7s Linear Clear
    R7s
    R7s
    Performance Diagrams
    Lumen Maintenance Diagram - CorePro R7S 118mm 7.2-60W 840
    Lumen Maintenance Diagram - CorePro R7S 118mm 7.2-60W 840
    Life Expectancy Diagram - CorePro R7S 118mm 7.2-60W 840
    Life Expectancy Diagram - CorePro R7S 118mm 7.2-60W 840
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - CorePro R7S 118mm 7.2-60W 840
    Spectral Power Distribution Colour - CorePro R7S 118mm 7.2-60W 840
    Light Distribution Diagram - CorePro R7S 118mm 7.2-60W 840
    Light Distribution Diagram - CorePro R7S 118mm 7.2-60W 840
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - CorePro R7S 118mm 7.2-60W 840 IES 5.5 kB
