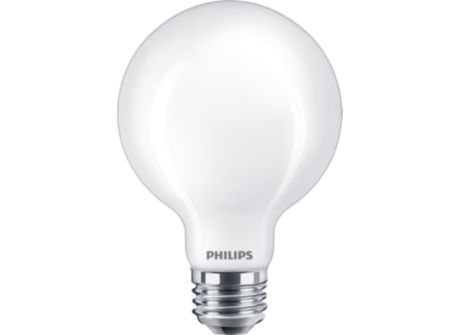

3.5G25/PER/UD/FR/G/E26/WGD 4/2PF T20

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.4 s
Lamp Current (Nom)	40 mA
Voltage (Nom)	120 V
Wattage Equivalent	40 W
Line Frequency	60 Hz
Power Consumption	3.5 W
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.7
Input Frequency	60 Hz

Approval and Application

Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	3.5G25/PER/UD/FR/G/E26/WGD 4/2PF T20
Order code	573352
EAN/UPC - Case	50046677573350
Material number (12NC)	929003085003
Numerator - Quantity Per Pack	1
Order product name	3.5G25/PER/UD/FR/G/E26/WGD 4/2PF T20
Numerator - Packs per outer box	4

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Bulb Shape	G25
Bulb Material	Glass
Bulb Finish	Frosted

Temperature

Ambient temperature range

-20 °C to 40 °C

Light Technical

Luminous Flux	350 lumen
Color Code	922-927  [CCT of 2200K-2700K]
Luminous Efficacy (rated) (Nom)	100 lm/W
Color rendering index (CRI)	95
Correlated Color Temperature (Nom)	2200 K	2700 K
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	922-927  [CCT of 2200K-2700K]
Beam Angle (Nom)	300 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
