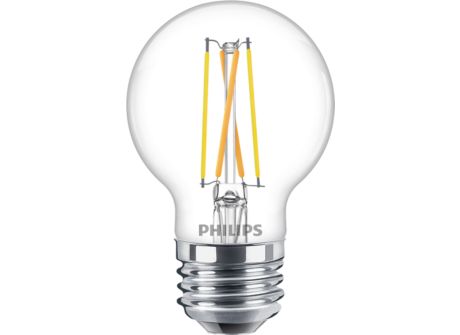

3.5G16.5/PER/UD/CL/G/E26/WGD 6/2PF T20

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	40 mA
Warm-up time to 60% light	0.4 s
Voltage (Nom)	120 V
Wattage Equivalent	40 W
Line Frequency	60 Hz
Power Consumption	3.5 W
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.7
Input Frequency	60 Hz

Approval and Application

Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	3.5G16.5/PER/UD/CL/G/E26/WGD 6/2PF T20
EAN/UPC - Product	50046677573299
EAN/UPC - Case	50046677573299
Order code	573295
Material number (12NC)	929003085103
Numerator - Quantity Per Pack	1
Order product name	3.5G16.5/PER/UD/CL/G/E26/WGD 6/2PF T20
Numerator - Packs per outer box	6

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Bulb Shape	G16.5  [G16.5]
Bulb Material	Glass
Bulb Finish	Clear

Temperature

Ambient temperature range

-20 °C to 40 °C

Light Technical

Luminous Flux	350 lumen
Color Code	922-927  [CCT of 2200K-2700K]
Color rendering index (CRI)	95
Correlated Color Temperature (Nom)	2200 K	2700 K
Luminous Efficacy (rated) (Nom)	100 lm/W
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	922-927  [CCT of 2200K-2700K]
Beam Angle (Nom)	300 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
