    • Energy saving elegance in a verstile design

      3.8G16.5PER927-922FRGE26WGX2PFT20
      LED
      3.8G16.5PER927-922FRGE26WGX2PFT20

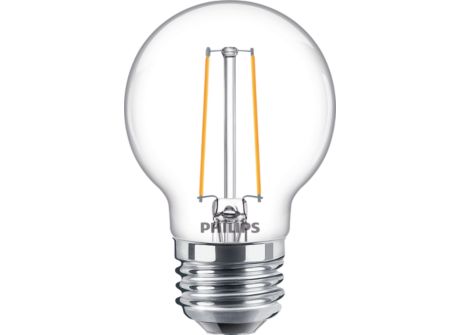

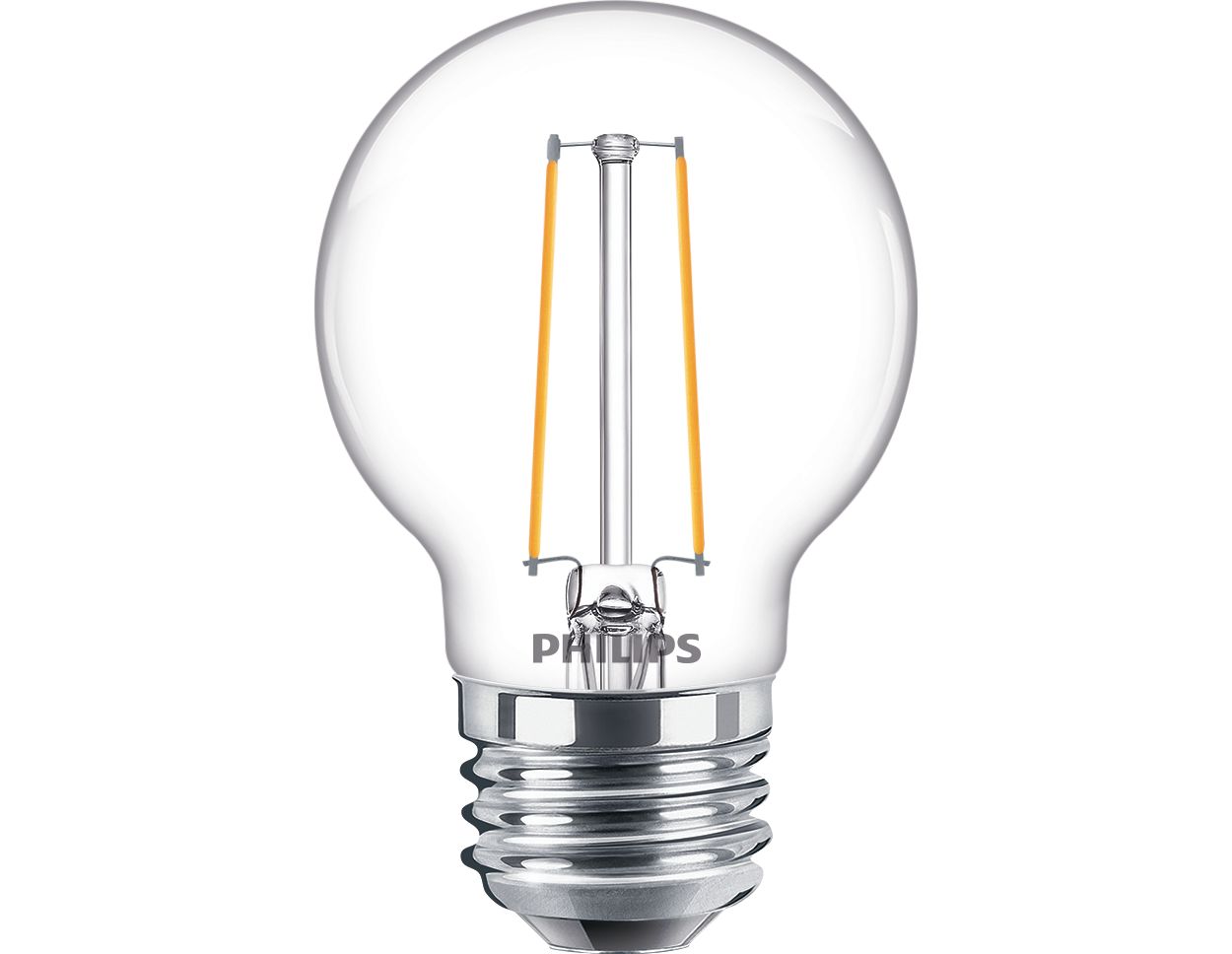

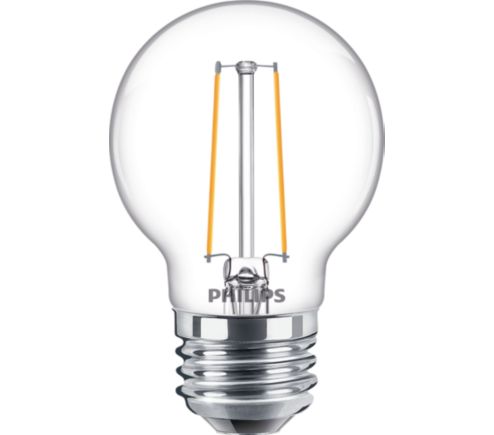

      LED G16.5

      3.8G16.5PER927-922FRGE26WGX2PFT20

      Downloads

      Spec Sheet
      Size:860.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Warm-up time to 60% light
    0.5 s
    Lamp Current (Nom)
    40 mA
    Voltage (Nom)
    120 V
    Power Factor (Fraction)
    0.7
    Wattage Equivalent
    40 W
    Line Frequency
    50 to 60 Hz
    Power Consumption
    3.8 W
    Input Frequency
    50 to 60 Hz
    Starting Time (Nom)
    0.5 s
    Approval and Application
    Energy Certifications
    Energy Star
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    3.8G16.5PER927-922FRGE26WGX2PFT20
    EAN/UPC - Case
    50046677564594
    Order code
    564591
    Numerator - Packs per outer box
    6
    Material number (12NC)
    929002205423
    Numerator - Quantity Per Pack
    1
    Order product name
    3.8G16.5PER927-922FRGE26WGX2PFT20
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    General Information
    Cap-Base
    E26  [Single Contact Medium Screw]
    Switching Cycle
    20,000
    Lighting Technology
    LED
    Nominal lifetime
    15,000 hour(s)
    Mechanical and Housing
    Bulb Shape
    G16.5  [G16.5]
    Bulb Finish
    Frosted
    Bulb Material
    Glass
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    Light Technical
    Luminous Flux
    350 lumen
    Luminous Efficacy (rated) (Nom)
    92 lm/W
    Color rendering index (CRI)
    90
    Correlated Color Temperature (Nom)
    2200 K
    2700 K
    Beam Angle (Nom)
    300 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Designation
    Warm Glow(WG)
    Color Consistency
    <4
    Color Code
    922-927  [CCT of 2200K-2700K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw G16.5 Frosted
    Single Contact Medium Screw G16.5 Frosted
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram - 3.8G16.5PER927-922FRGE26WGX2PFT20
    Lumen Maintenance Diagram - 3.8G16.5PER927-922FRGE26WGX2PFT20
    Life Expectancy Diagram - 3.8G16.5PER927-922FRGE26WGX2PFT20
    Life Expectancy Diagram - 3.8G16.5PER927-922FRGE26WGX2PFT20
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram - 3.8G16.5PER927-922FRGE26WGX2PFT20
    Light Distribution Diagram - 3.8G16.5PER927-922FRGE26WGX2PFT20
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 3.8G16.5PER927-922FRGE26WGX2PFT20 IES 652 B
