    • Create a vintage or modern look while saving money with LED technology

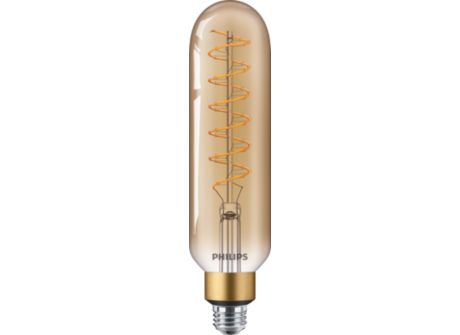

      7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
      LED
      7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
      LED Designer Deco

      7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT

      Downloads

      Spec Sheet
      Size:1.1 MB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Warm-up time to 60% light
    0.5 s
    Lamp Current (Nom)
    70 mA
    Voltage (Nom)
    120 V
    Wattage Equivalent
    40 W
    Line Frequency
    50 to 60 Hz
    Power Consumption
    7.5 W
    Starting Time (Nom)
    0.5 s
    Power Factor (Fraction)
    0.7
    Input Frequency
    50 to 60 Hz
    Approval and Application
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Order code
    575241
    EAN/UPC - Case
    50046677575248
    Material number (12NC)
    929001936513
    Numerator - Quantity Per Pack
    1
    Order product name
    7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Numerator - Packs per outer box
    2
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    General Information
    Cap-Base
    E26  [Single Contact Medium Screw]
    Switching Cycle
    20,000
    Rated Lifetime (Hours)
    15,000 hour(s)
    Nominal lifetime
    15,000 hour(s)
    Lighting Technology
    LED
    Mechanical and Housing
    Bulb Shape
    T20  [T 65mm]
    Bulb Material
    Glass
    Bulb Finish
    Amber
    Temperature
    Ambient temperature range
    -20 °C to 40 °C
    T-Case Maximum (Nom)
    113 °F
    Light Technical
    Luminous Flux
    400 lumen
    Color Code
    820  [CCT of 2000K]
    Luminous Efficacy (rated) (Nom)
    53 lm/W
    Color rendering index (CRI)
    80
    Correlated Color Temperature (Nom)
    2000 K
    Color Designation
    Flame
    Color Consistency
    <6
    Color Code
    820  [CCT of 2000K]
    Beam Angle (Nom)
    330 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw T 65mm Amber
    Single Contact Medium Screw T 65mm Amber
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Lumen Maintenance Diagram - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Life Expectancy Diagram - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Life Expectancy Diagram - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Light Distribution Diagram - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 7.5T20/VIN/820/CL/G/E26/amber/SP/DIM 1CT IES 3.5 kB
