    • Energy saving elegance that gives a beautiful sparkle of light

      2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
      LED

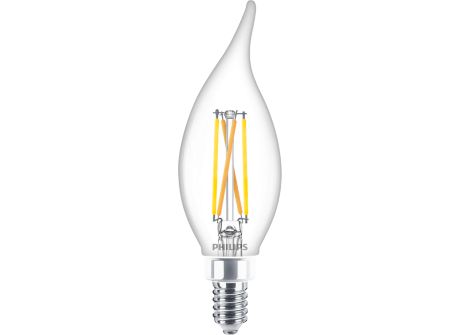

      2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
      LED BA11

      2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20

      Downloads

      Spec Sheet
      Size:877.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    25 mA
    Warm-up time to 60% light
    0.4 s
    Voltage (Nom)
    120 V
    Wattage Equivalent
    25 W
    Line Frequency
    60 Hz
    Power Consumption
    2.3 W
    Starting Time (Nom)
    0.5 s
    Power Factor (Fraction)
    0.7
    Input Frequency
    60 Hz
    Approval and Application
    Energy Certifications
    Energy Star
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Order code
    566653
    EAN/UPC - Case
    50046677566659
    Material number (12NC)
    929002991803
    Numerator - Quantity Per Pack
    1
    Order product name
    2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Numerator - Packs per outer box
    6
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    General Information
    Cap-Base
    E12  [Candelabra Screw]
    Switching Cycle
    20,000
    Rated Lifetime (Hours)
    15,000 hour(s)
    Nominal lifetime
    15,000 hour(s)
    Lighting Technology
    LED
    Mechanical and Housing
    Bulb Shape
    BA11
    Bulb Material
    Glass
    Bulb Finish
    Clear
    Temperature
    Ambient temperature range
    -20 °C to 40 °C
    Light Technical
    Luminous Flux
    185 lumen
    Color Code
    922-927  [CCT of 2200K-2700K]
    Luminous Efficacy (rated) (Nom)
    80 lm/W
    Color rendering index (CRI)
    95
    Correlated Color Temperature (Nom)
    2200 K
    2700 K
    Color Designation
    Warm Glow(WG)
    Color Consistency
    <4
    Color Code
    922-927  [CCT of 2200K-2700K]
    Beam Angle (Nom)
    300 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Candelabra Screw BA11 Clear
    Candelabra Screw BA11 Clear
    E12
    E12
    Performance Diagrams
    Lumen Maintenance Diagram - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Lumen Maintenance Diagram - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Life Expectancy Diagram - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Life Expectancy Diagram - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Light Distribution Diagram - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 2.3BA11/PER/UD/CL/G/E12/WGD 6/3PFT20 IES 2.7 kB
