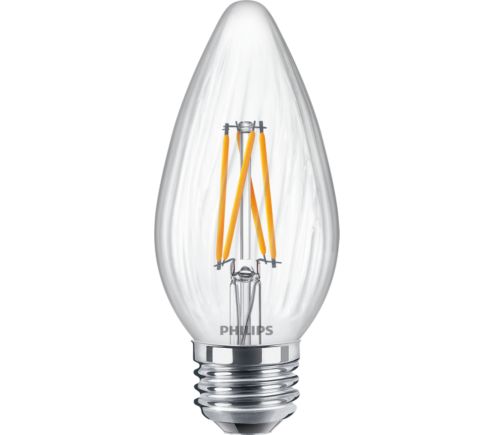

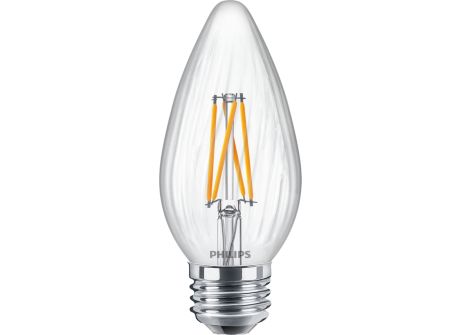

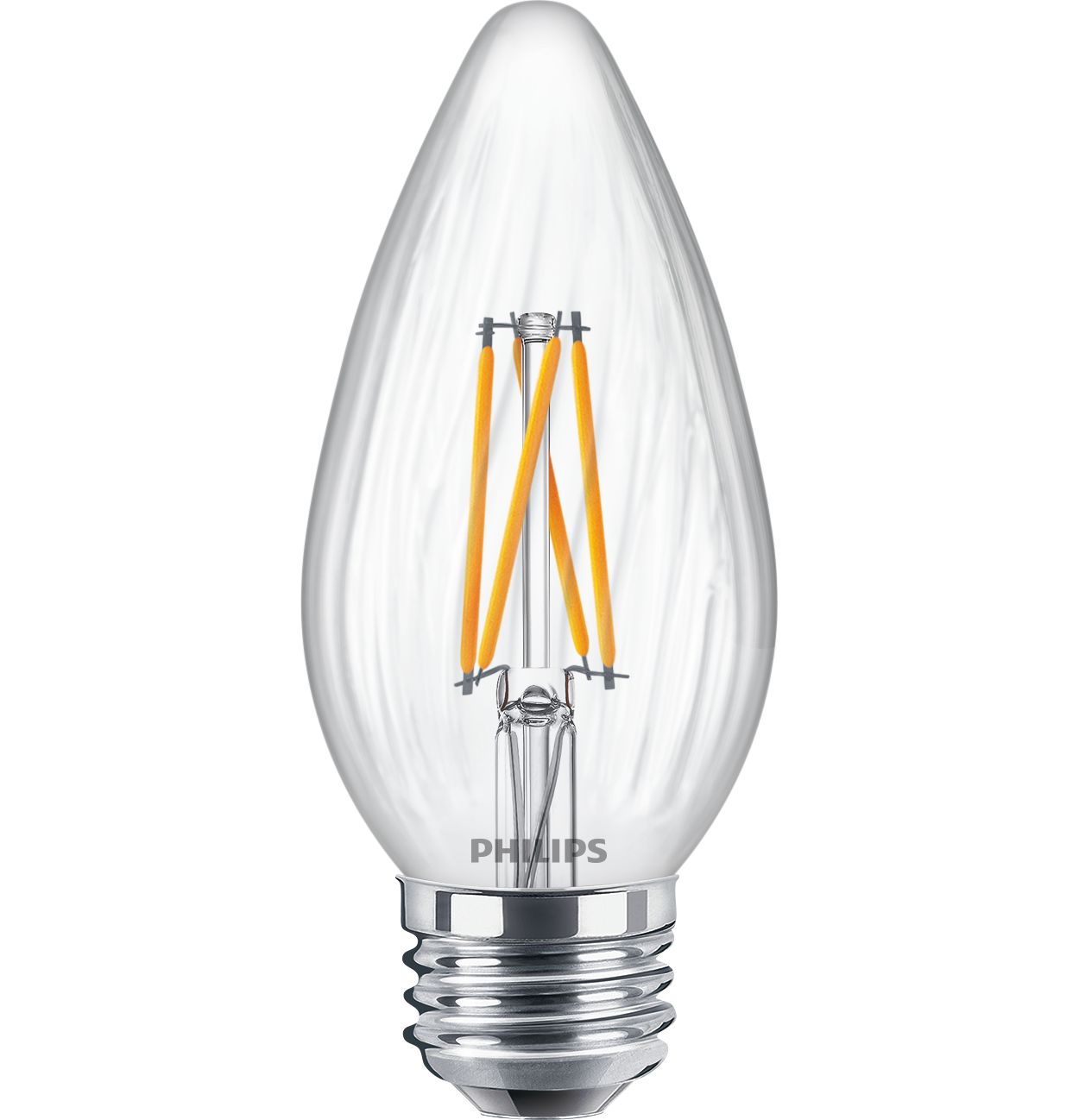

5.5F15/PER/927-922/CL/G/E26/WGX 1PF T20

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	60 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.75
Wattage Equivalent	60 W
Line Frequency	50 to 60 Hz
Power Consumption	5.5 W
Input Frequency	50 to 60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	5.5F15/PER/927-922/CL/G/E26/WGX 1PF T20
EAN/UPC - Case	50046677572667
Order code	572669
Numerator - Packs per outer box	6
Material number (12NC)	929002091593
Numerator - Quantity Per Pack	1
Order product name	5.5F15/PER/927-922/CL/G/E26/WGX 1PF T20

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)

Mechanical and Housing

Bulb Shape	F15 (F15)
Bulb Finish	Clear
Bulb Material	Glass

Temperature

T-Case Maximum (Nom)	140 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Luminous Flux	500 lumen
Luminous Efficacy (rated) (Nom)	90 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	2200 K	2700 K
Beam Angle (Nom)	300 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	922-927  [CCT of 2200K-2700K]
