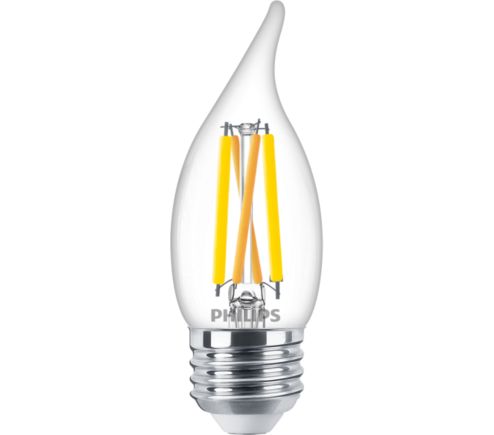

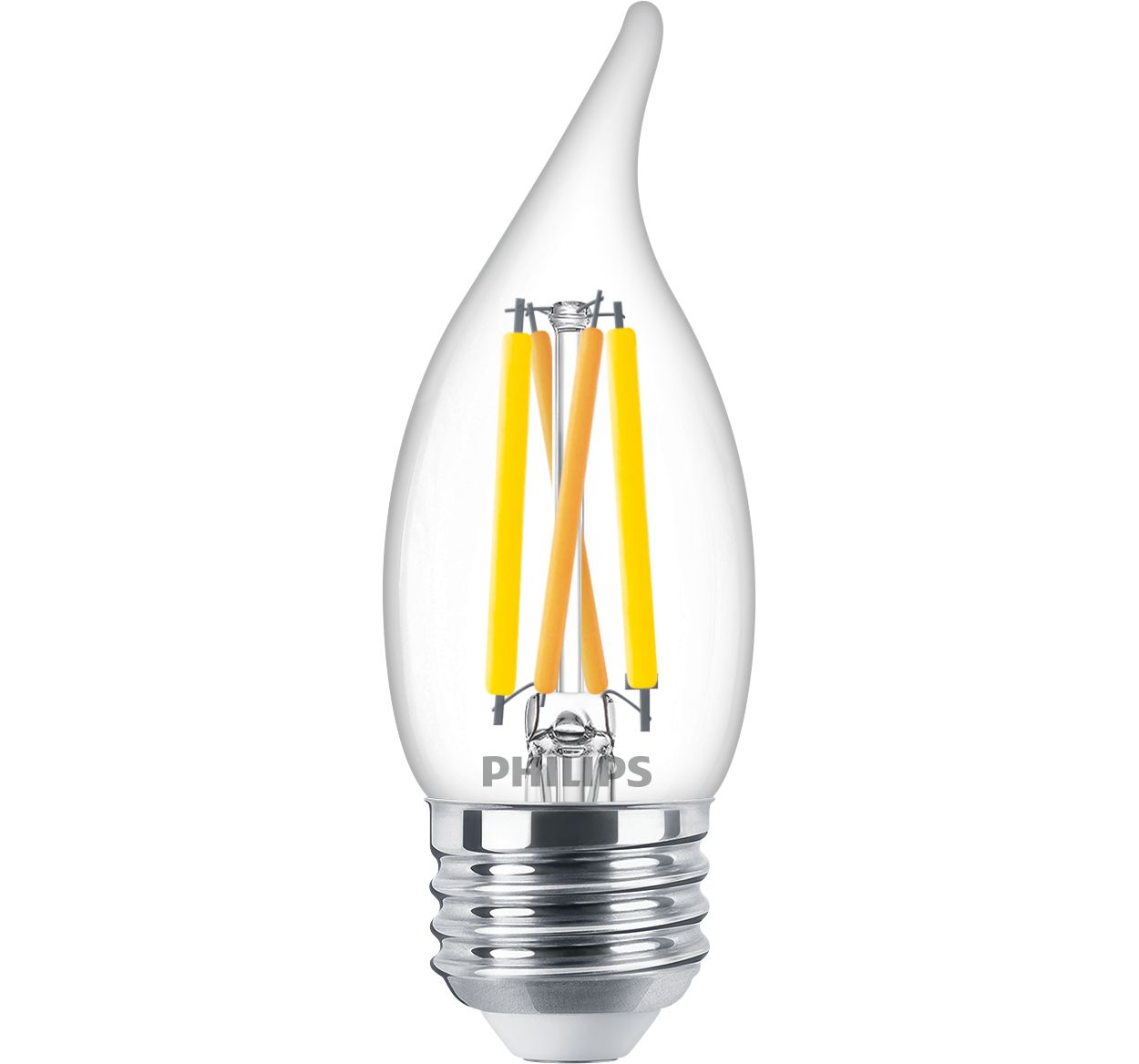

5BA11/PER/UD/CL/G/E26/WGD 6/3PF T20

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	55 mA
Warm-up time to 60% light	0.4 s
Voltage (Nom)	120 V
Line Frequency	60 Hz
Wattage Equivalent	60 W
Power Consumption	5 W
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.7
Input Frequency	60 Hz

Approval and Application

Energy Certifications	Energy Star
EU RoHS compliant	Yes

Product Data

Full product name	5BA11/PER/UD/CL/G/E26/WGD 6/3PF T20
EAN/UPC - Case	50046677566697
Order code	566695
Material number (12NC)	929002991103
Numerator - Quantity Per Pack	1
Order product name	5BA11/PER/UD/CL/G/E26/WGD 6/3PF T20
Numerator - Packs per outer box	6

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape	BA11
Bulb Material	Glass
Bulb Finish	Clear

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)
Lighting Technology	LED

Temperature

Ambient temperature range

-20 °C to 40 °C

Light Technical

Luminous Flux	500 lumen
Color Code	922-927  [CCT of 2200K-2700K]
Color rendering index (CRI)	95
Correlated Color Temperature (Nom)	2200 K	2700 K
Luminous Efficacy (rated) (Nom)	100 lm/W
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	922-927  [CCT of 2200K-2700K]
Beam Angle (Nom)	300 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
