    • Classic LED filament lamps for decorative lighting

      6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
      LED

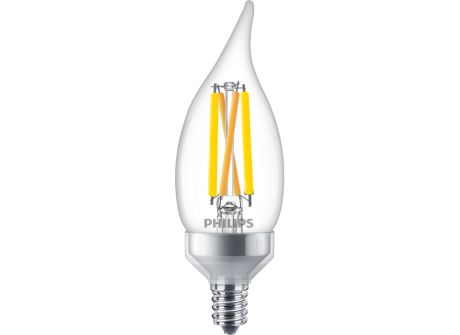

      6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
      Classic filament LED candles and lusters

      6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20

      Downloads

      Spec Sheet
      Size:899.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    65 mA
    Warm-up time to 60% light
    0.4 s
    Voltage (Nom)
    120 V
    Power Factor (Fraction)
    0.7
    Wattage Equivalent
    75 W
    Line Frequency
    60 Hz
    Power Consumption
    6.6 W
    Starting Time (Nom)
    0.5 s
    Input Frequency
    60 Hz
    Approval and Application
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    EAN/UPC - Case
    50046677564495
    Order code
    564492
    Numerator - Packs per outer box
    6
    Material number (12NC)
    929002986603
    Numerator - Quantity Per Pack
    1
    Order product name
    6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    General Information
    Cap-Base
    Universal
    Switching Cycle
    20,000
    Rated Lifetime (Hours)
    15,000 hour(s)
    Nominal lifetime
    15,000 hour(s)
    Lighting Technology
    LED
    Mechanical and Housing
    Bulb Shape
    BA11  [BA11 35mm]
    Bulb Material
    Glass
    Bulb Finish
    Clear
    Temperature
    Ambient temperature range
    -20 °C to 40 °C
    Light Technical
    Luminous Flux
    700 lumen
    Color Code
    922-927  [CCT of 2200K-2700K]
    Color rendering index (CRI)
    95
    Correlated Color Temperature (Nom)
    2200 K
    2700 K
    Luminous Efficacy (rated) (Nom)
    106 lm/W
    Color Designation
    Warm Glow(WG)
    LLMF At End Of Nominal Lifetime (Nom)
    0.7 %
    Color Consistency
    <4
    Color Code
    922-927  [CCT of 2200K-2700K]
    Beam Angle (Nom)
    300 degree(s)
    Installation Diagrams
     Universal BA11 35mm Clear
    Universal BA11 35mm Clear
    Performance Diagrams
    Lumen Maintenance Diagram - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Lumen Maintenance Diagram - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Life Expectancy Diagram - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Life Expectancy Diagram - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Spectral Power Distribution Colour - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Light Distribution Diagram - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Light Distribution Diagram - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20
    Downloads
    Leaflets
    Visuals
    Photometry/BIM Files
    • IES IES File - 6.6BA11/PER/UD/CL/G/E12+E26/WGD 3PF T20 IES 2.7 kB
