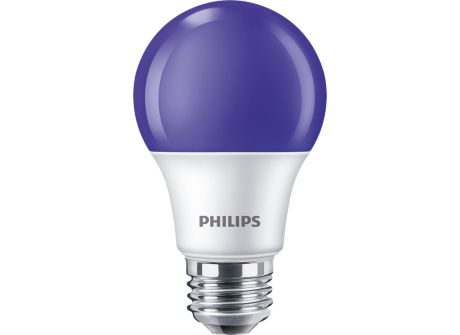

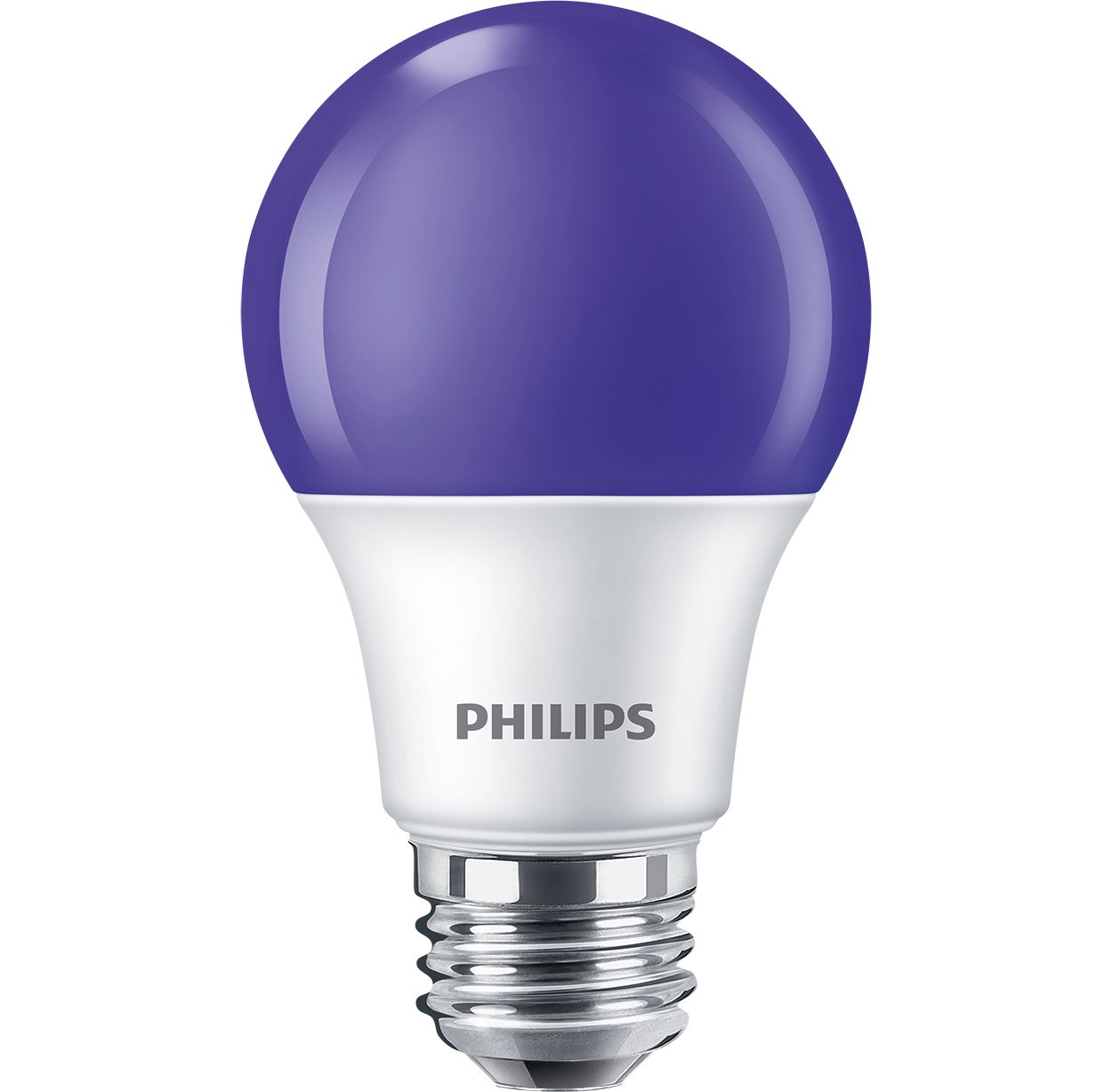

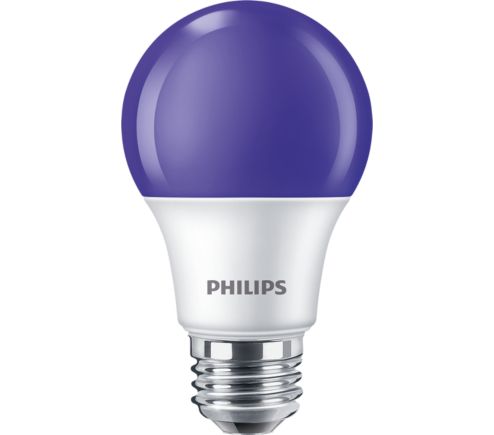

8A19/LED/PURPLE/ND 120V 4/1FB

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	115 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.5
Starting Time (Nom)	0.5 s
Line Frequency	60 Hz
Power Consumption	8 W
Input Frequency	60 Hz

Approval and Application

EU RoHS compliant

Yes

Product Data

Full product name	8A19/LED/PURPLE/ND 120V 4/1FB
EAN/UPC - Case	50046677580426
Order product name	8A19/LED/PURPLE/ND 120V 4/1FB
Order code	580423
Numerator - Packs per outer box	4
Material number (12NC)	929001998313
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Lighting Technology	LED
Nominal lifetime	10,950 hour(s)

Mechanical and Housing

Bulb Shape	A19  [A 19mm]
Bulb Finish	Purple
Bulb Material	Plastic

Temperature

T-Case Maximum (Nom)	176 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Beam Angle (Nom)	120 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
