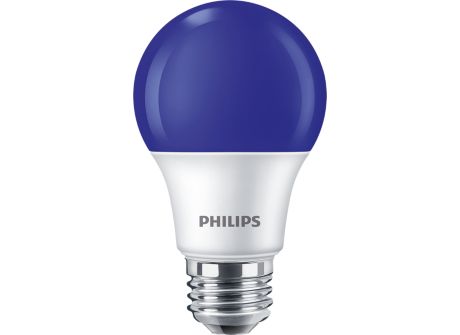

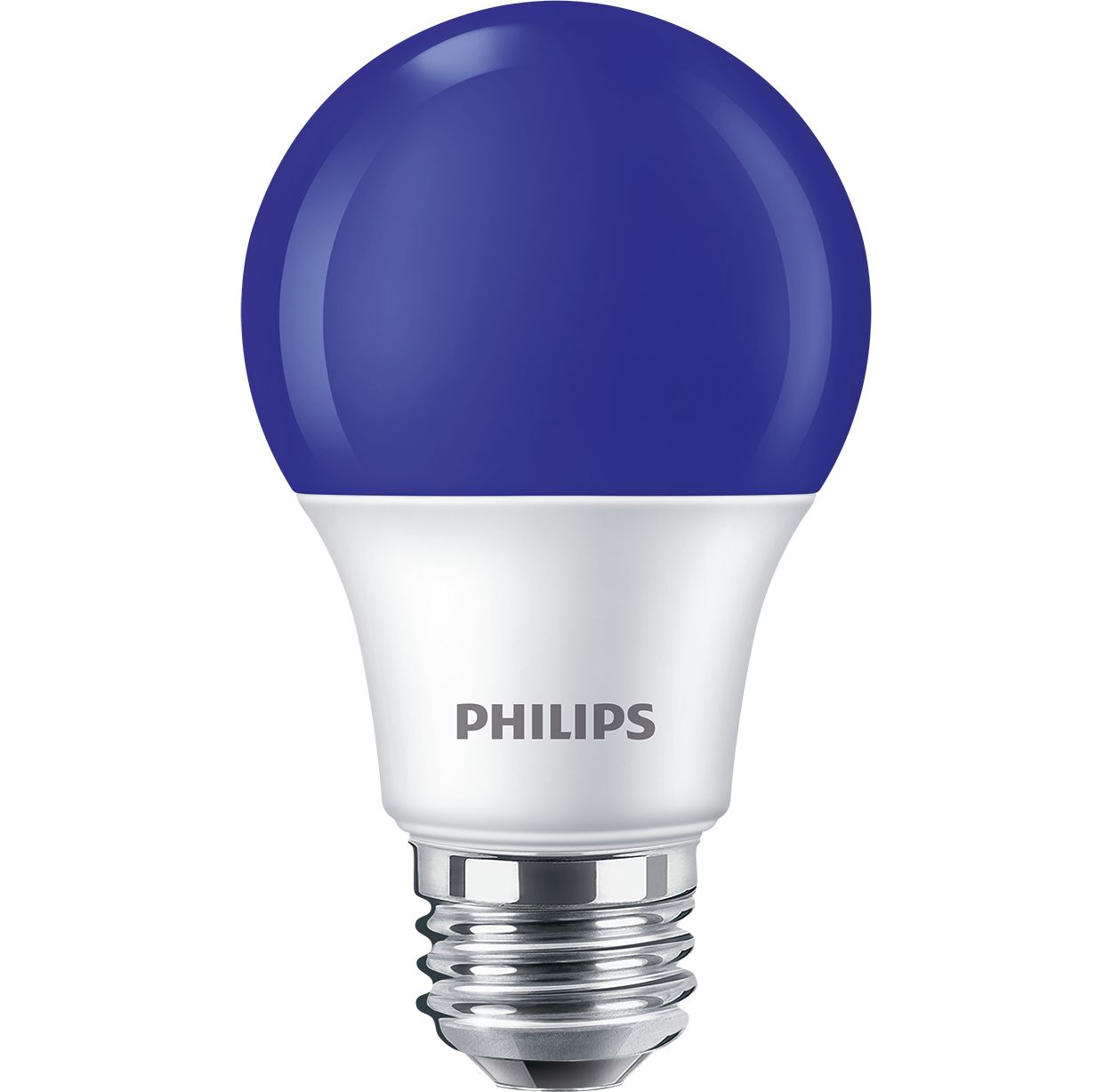

      8A19/LED/BLUE/P/ND 120V 4/1FB
      LED
      8A19/LED/BLUE/P/ND 120V 4/1FB

      8A19/LED/BLUE/P/ND 120V 4/1FB

      Order code: 463240

      Downloads

      Spec Sheet
      Size:651.4 kB

      See all downloads

    Specifications Show all

    General Information
    Base
    E26  [ Single Contact Medium Screw]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    10950 h
    Switching Cycle
    20000X
    Light Technical
    Beam Angle (Nom)
    120 °
    Correlated Color Temperature (Nom)
    - K
    Color Consistency
    -
    Color Rendering Index (Nom)
    -
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and Electrical
    Input Frequency
    60 Hz
    Power (Rated) (Nom)
    8 W
    Lamp Current (Nom)
    115 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.5
    Voltage (Nom)
    120 V
    Temperature
    T-Case Maximum (Nom)
    80 °C
    Controls and Dimming
    Dimmable
    No
    Approval and Application
    Energy Efficiency Label (EEL)
    Not applicable
    Energy Consumption kWh/1000 h
    - kWh
    Product Data
    Order product name
    8A19/LED/BLUE/P/ND 120V 4/1FB
    EAN/UPC - Product
    046677463243
    Order code
    463240
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    4
    Material Nr. (12NC)
    929001998005
    Net Weight (Piece)
    0.060 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw A19 (A19)
    Single Contact Medium Screw A19 (A19)
    E26
    E26
    Performance Diagrams
    10K
    10K
    10K
    10K
    Photometrics
    LEDbulb Color P 8W A19 E26 Blue
    LEDbulb Color P 8W A19 E26 Blue
    LEDbulb Color P 8W A19 E26 Blue
    LEDbulb Color P 8W A19 E26 Blue
    LEDbulb Color P A19 8W E26 Blue
    LEDbulb Color P A19 8W E26 Blue
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LEDbulb Color P 8W A19 E26 Blue IES 714 B
