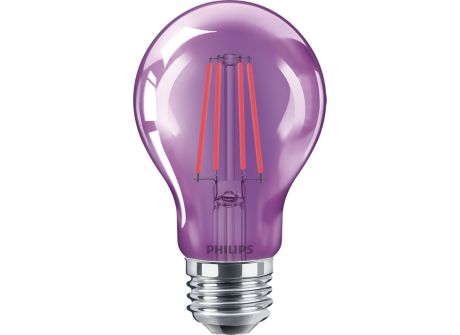

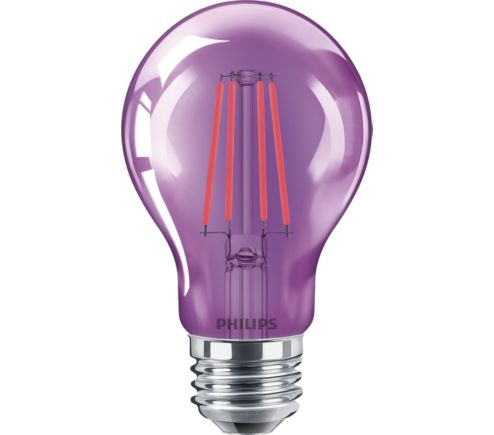

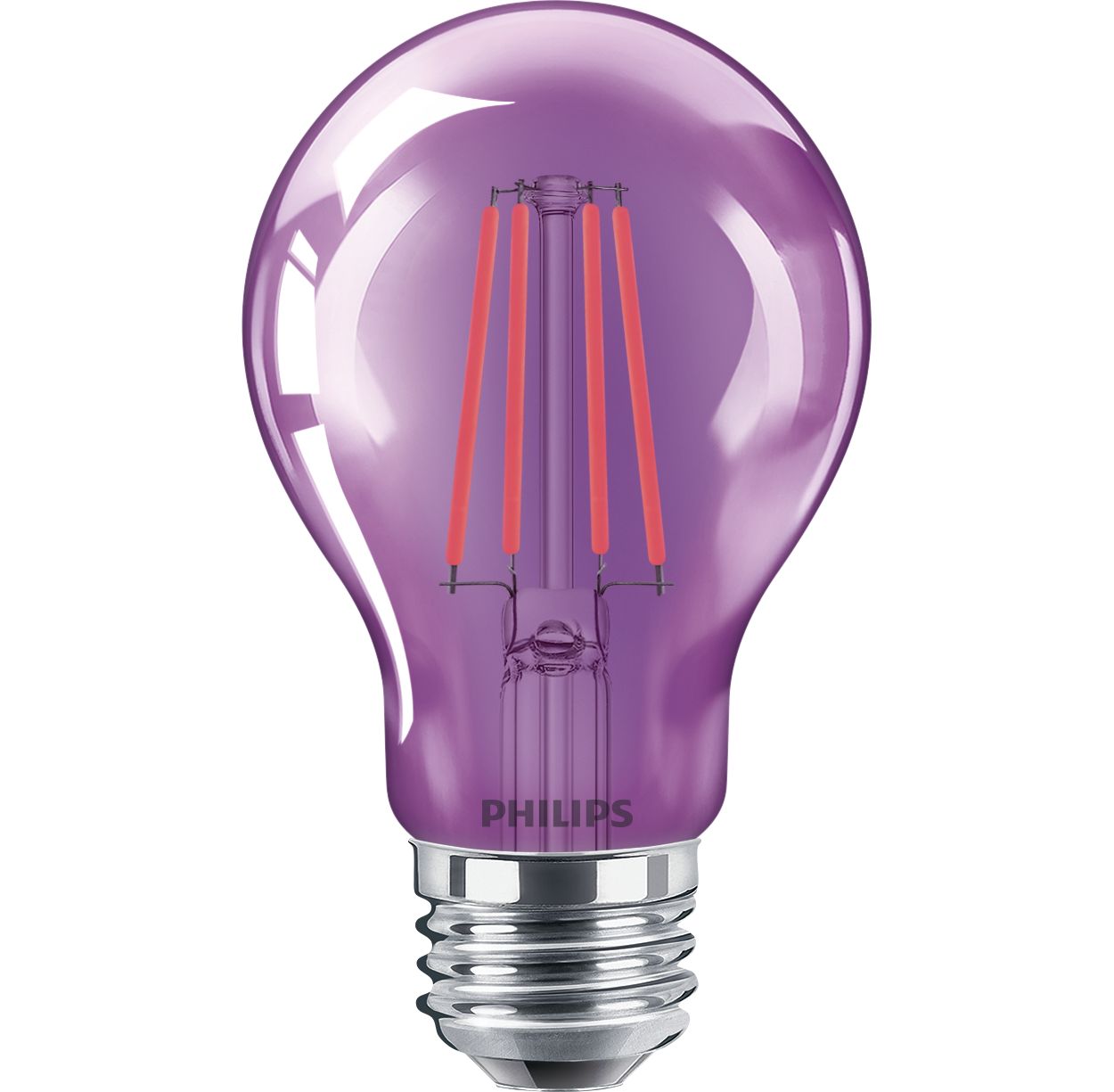

4A19/PER/PURPLE/G/E26/ND 4/1PF

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	55 mA
Voltage (Nom)	120 V
Power Factor (Fraction)	0.40
Wattage Equivalent	40 W
Line Frequency	60 Hz
Power Consumption	4 W
Starting Time (Nom)	0.5 s
Input Frequency	60 Hz

Approval and Application

EU RoHS compliant

Yes

Product Data

Full product name	4A19/PER/PURPLE/G/E26/ND 4/1PF
EAN/UPC - Product	046677568887
EAN/UPC - Case	50046677568882
Order code	568881
Numerator - Packs per outer box	4
Material number (12NC)	929001937553
Order product name	4A19/PER/PURPLE/G/E26/ND 4/1PF
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	20,000
Lighting Technology	LED
Rated Lifetime (Hours)	15,000 hour(s)
Nominal lifetime	15,000 hour(s)

Mechanical and Housing

Bulb Shape	A19  [A 19mm]
Bulb Finish	Purple
Bulb Material	Glass

Temperature

T-Case Maximum (Nom)	257 °F
Ambient temperature range	-20 °C to 45 °C

Light Technical

Beam Angle (Nom)	330 degree(s)
Color Designation	Purple
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Code	Purple
