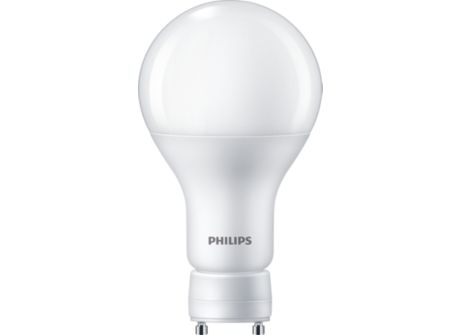

16A21/PER/930/P/GU24/DIM 4/1FB T20

Specifications Show all

General information

Base	GU24
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	15000 h
Switching Cycle	50000

Light technical

Color Code	930  [ CCT of 3000K]
Beam Angle (Nom)	250 °
Initial lumen (Nom)	1600 lm
Color Designation	White (WH)
Correlated Color Temperature (Nom)	3000 K
Luminous Efficacy (rated) (Nom)	100 lm/W
Color Consistency	<4
Color Rendering Index (Nom)	90
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and electrical

Input Frequency	60 Hz
Power (Rated) (Nom)	16 W
Lamp Current (Nom)	145 mA
Wattage Equivalent	100 W
Starting Time (Nom)	0.5 s
Warm Up Time to 60% Light (Nom)	0.5 s
UL Type	Yes
Power Factor (Nom)	0.7
Voltage (Nom)	120 V

Temperature

T-Ambient (Max)	113 °F
T-Ambient (Min)	-4 °F
T-Case Maximum (Nom)	194 °F

Controls and dimming

Dimmable

Only with specific dimmers

Mechanical and housing

Bulb Finish	Frosted
Bulb Shape	A21 (A21)

Approval and application

Energy Certifications

Energy Star

Product data

Order product name	16A21/PER/930/P/GU24/DIM 4/1FB T20
EAN/UPC - Product	046677558680
Order code	558684
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	4
Material Nr. (12NC)	929002327634
Net Weight (Piece)	0.212 lb
