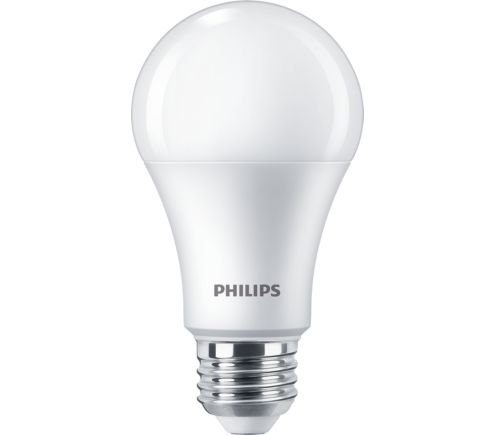

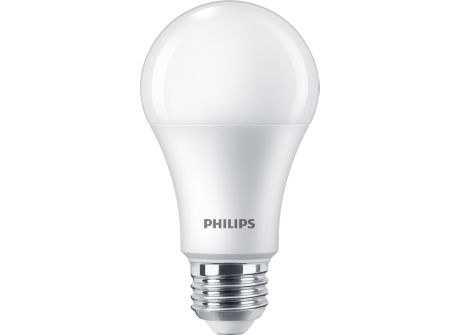

16A19/PER/927-22/P/E26/WG 6/1FB T20

Specifications Show all

Operating and Electrical

Lamp Current (Nom)	135 mA
Warm-up time to 60% light	0.5 s
Voltage (Nom)	120 V
Power Factor (Fraction)	0.7
Wattage Equivalent	100 W
Line Frequency	60 Hz
Power Consumption	16 W
Input Frequency	60 Hz
Starting Time (Nom)	0.5 s

Approval and Application

Energy Certifications	Energy Star
Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes

Product Data

Full product name	16A19/PER/927-22/P/E26/WG 6/1FB T20
EAN/UPC - Case	50046677561029
Order code	561027
Numerator - Packs per outer box	6
Material number (12NC)	929002285504
Numerator - Quantity Per Pack	1
Order product name	16A19/PER/927-22/P/E26/WG 6/1FB T20

Controls and Dimming

Dimmable

Yes

General Information

Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	50,000
Lighting Technology	LED
Nominal lifetime	15,000 hour(s)

Mechanical and Housing

Bulb Shape	A19  [A 19mm]
Bulb Finish	Frosted
Bulb Material	Plastic

Temperature

T-Case Maximum (Nom)

194 °F

Light Technical

Luminous Flux	1,600 lumen
Luminous Efficacy (rated) (Nom)	100.00 lm/W
Color rendering index (CRI)	90
Correlated Color Temperature (Nom)	2200 K	2700 K
Beam Angle (Nom)	250 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Designation	Warm Glow(WG)
Color Consistency	<4
Color Code	922-927  [CCT of 2200K-2700K]
