    • Conveniently transform a Recessed Troffer space with EvoKit generation 5

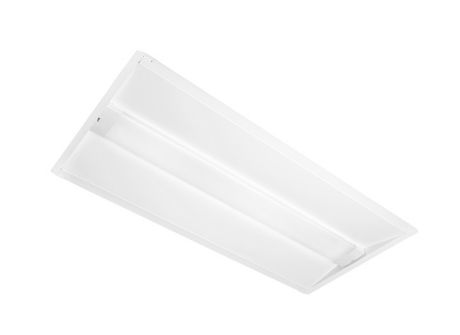

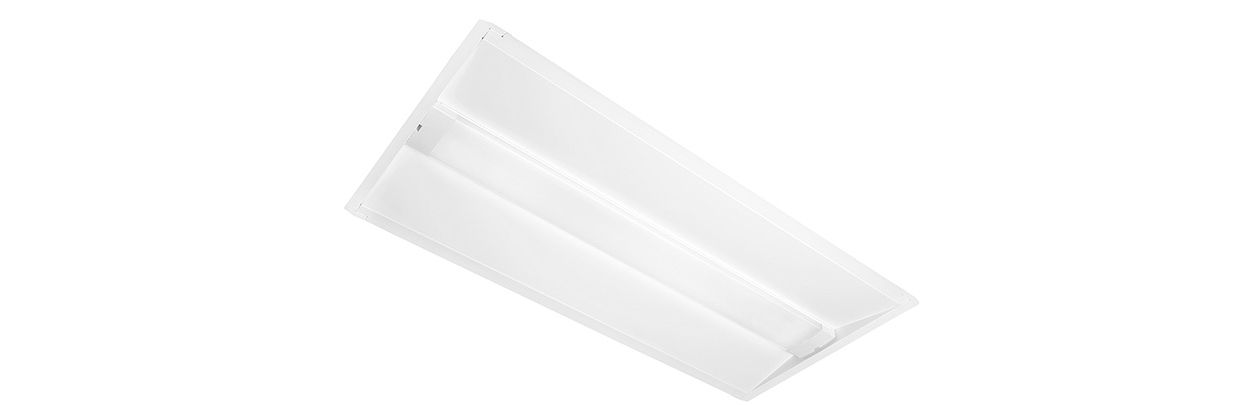

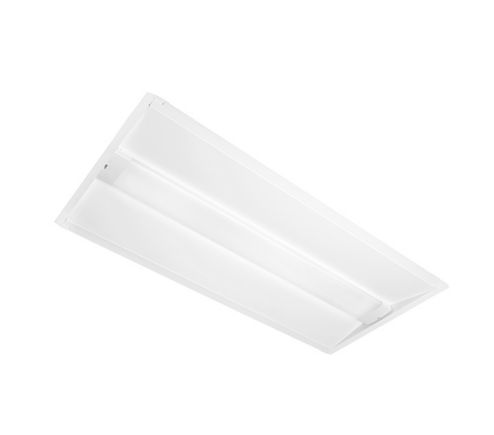

      EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
      LED
      EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
      EvoKit 2x4 HE Gen5

      EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5

      Downloads

      Spec Sheet
      Size:318.3 kB
      Specifications
      Size:1.1 MB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Conduit Connection
    7/8 inch knockout
    Voltages
    120/277 V
    Power Consumption
    31 W
    Product Data
    Full product name
    EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
    Catalog Number
    EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
    Catalog Number Description
    EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
    EAN/UPC - Case
    50781087166234
    Order product name
    EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
    Order code
    EvoKit HE 2x4 47L 31W 835 UNV SWZDT G5
    Numerator - Packs per outer box
    1
    Material number (12NC)
    929002718613
    Numerator - Quantity Per Pack
    1
    Mechanical and Housing
    Enclosure
    Metal and Plastic
    Shape
    Rectangular
    Fixture Size
    2 ft x 4 ft
    General Information
    Mounting
    Recessed
    Number Of Pieces
    1
    Lighting Technology
    LED
    Initial Performance (IEC Compliant)
    Luminaire Lumens
    4700 lumen
    Light Technical
    Luminous Flux
    4,700 lumen
    Luminous Efficacy (rated) (Nom)
    152 lm/W
    Color rendering index (CRI)
    80
    Correlated Color Temperature (Nom)
    3500 K
    Downloads
    Leaflets
    Visuals
    Specification Sheets
