    • Halogen reflector lamps – proven reliability

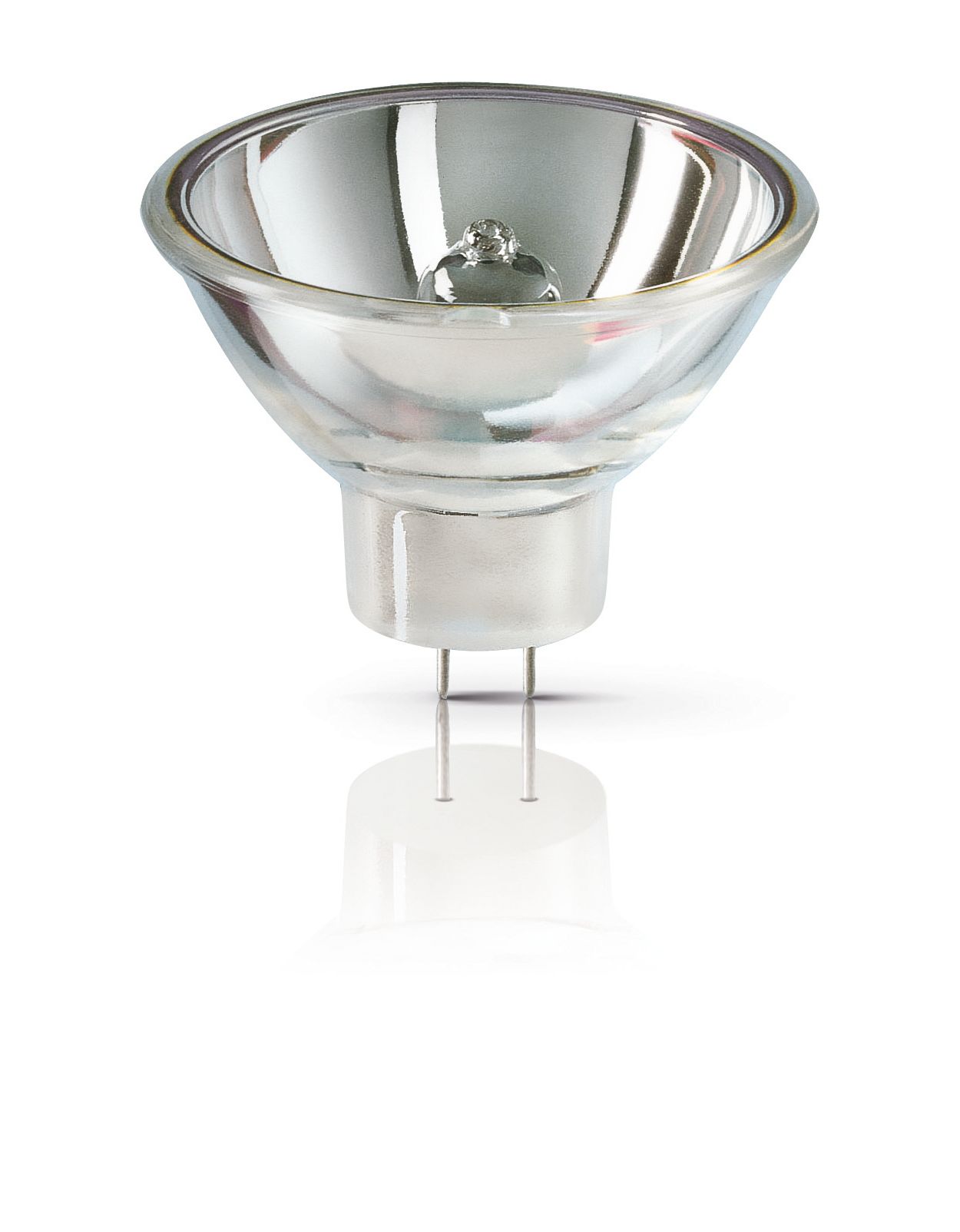

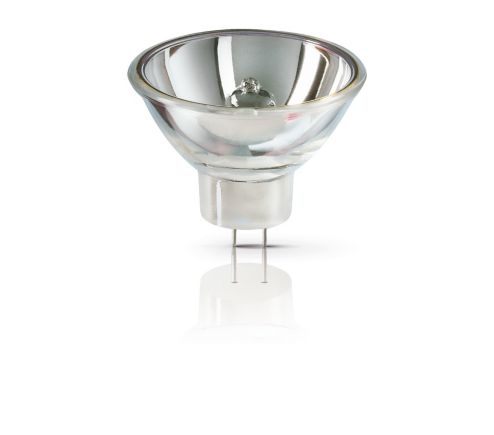

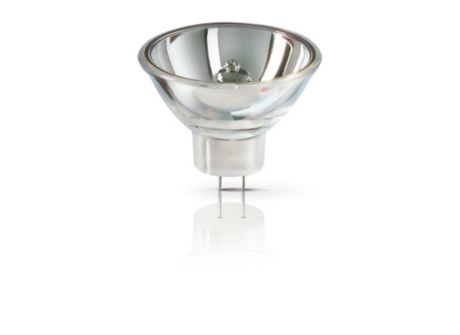

      JCR 15V 150W H5 24 PACK
      JCR 15V 150W H5 24 PACK
      Halogen reflector

      JCR 15V 150W H5 24 PACK

      Order code: 249235

      Downloads

      Spec Sheet
      Size:287.8 kB

      See all downloads

    Specifications Show all

    General information
    Base
    GZ6.35  [ GZ6.35]
    Philips Code
    NA  [ -]
    ANSI Code
    -
    LIF Code
    -
    Operating Position
    Base Down +/- 90 D  [ Base Down +/- 90 D]
    Main Application
    Fiber optic illumination
    Life to 50% Failures (Nom)
    500 h
    J Code
    JCR15V150W5H
    Light technical
    Correlated Color Temperature (Nom)
    3100 K
    Color Rendering Index (Nom)
    100
    Operating and electrical
    Power (Rated) (Nom)
    150 W
    Voltage (Nom)
    15 V
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Cap-Base Information
    na  [ -]
    Bulb Material
    Quartz-UV Open
    Reflector Finish
    Smooth
    Filament Shape
    -
    Filament Dimensions WxH
    -
    Bulb Shape
    R-16  [ R-16]
    Luminaire design requirements
    Bulb Temperature (Max)
    1652 °F
    Pinch Temperature (Max)
    662 °F
    Pinch Temperature (Max)-DUP(do not use)
    662 °F
    Working Distance WD
    1-7/16 in
    Product data
    Order product name
    JCR 15V 150W H5 24 PACK
    EAN/UPC - Product
    8711500413291
    Order code
    249235
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    24
    Material Nr. (12NC)
    924793618594
    Net Weight (Piece)
    0.055 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    GX5.3, GY5.3, GZ6.35
    GX5.3, GY5.3, GZ6.35
    GZ6.35
    GZ6.35
    OpPos_s90.eps-Operating position
    OpPos_s90.eps-Operating position
