    • Halogen non-reflector lamps – high-quality light and easy to use

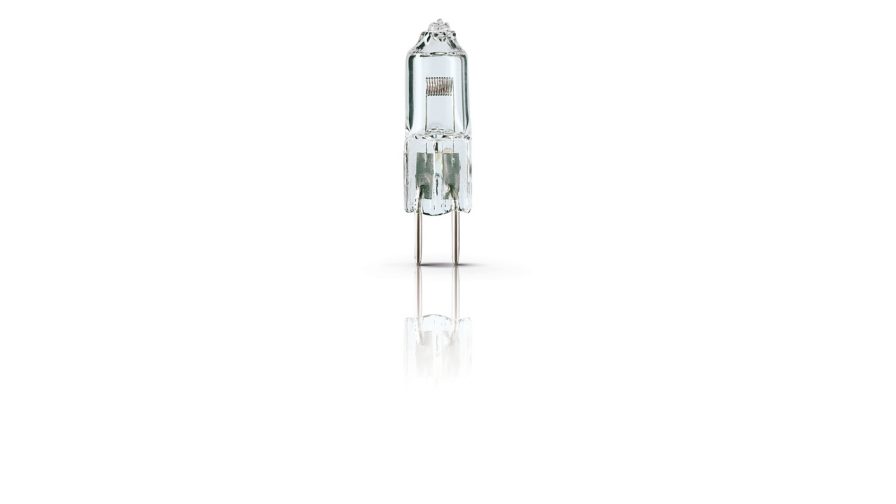

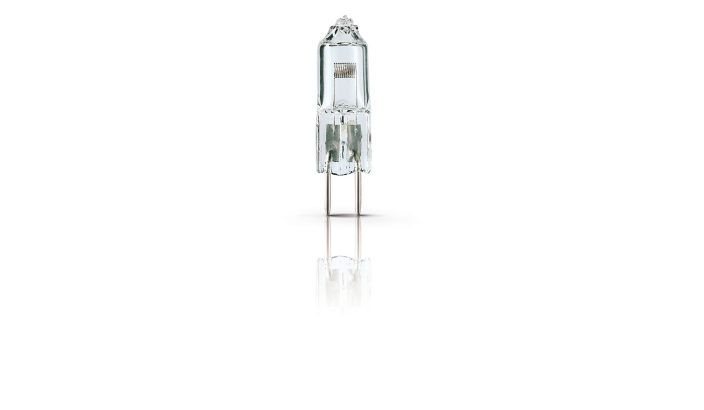

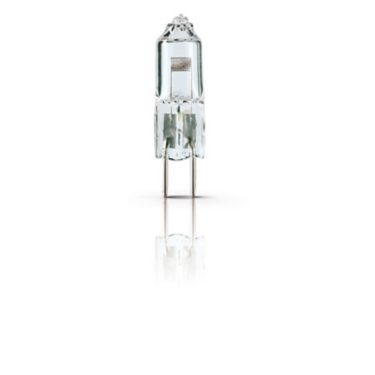

      EVA 100W 12V 100PK
      EVA 100W 12V 100PK
      Halogen non-reflector

      EVA 100W 12V 100PK

      Order code: 256768

      Downloads

      Spec Sheet
      Size:172.8 kB

      See all downloads

    Specifications Show all

    General information
    Base
    GY6.35  [ GY6.35]
    Philips Code
    7724
    ANSI Code
    EVA
    LIF Code
    M28
    Operating Position
    Base Down +/- 90 D  [ Base Down +/- 90 D]
    Main Application
    Projection
    Life to 50% Failures (Nom)
    2000 h
    Light technical
    Luminous Flux (Rated) (Nom)
    2800 lm
    Correlated Color Temperature (Nom)
    3300 K
    Color Rendering Index (Nom)
    100
    Operating and electrical
    Power (Rated) (Nom)
    100 W
    Voltage (Nom)
    12 V
    Mechanical and housing
    Bulb Material
    Quartz-UV Open
    Filament Shape
    Flat
    Filament Dimensions WxH
    5x3.1
    Luminaire design requirements
    Bulb Temperature (Max)
    1652 °F
    Pinch Temperature (Max)
    662 °F
    Pinch Temperature (Max)-DUP(do not use)
    662 °F
    Product data
    Order product name
    7724 EVA 100W GY6.35 12V
    EAN/UPC - Product
    8711500409850
    Order code
    256768
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    100
    Material Nr. (12NC)
    923872517103
    Net Weight (Piece)
    0.007 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G6.35, GY6.35
    G6.35, GY6.35
    GY6.35
    GY6.35
    OpPos_s90.eps-Operating position
    OpPos_s90.eps-Operating position
