    • MASTER Actinic BL TL-D Secura – the most effective way to eliminate insects, and HACCP-approved

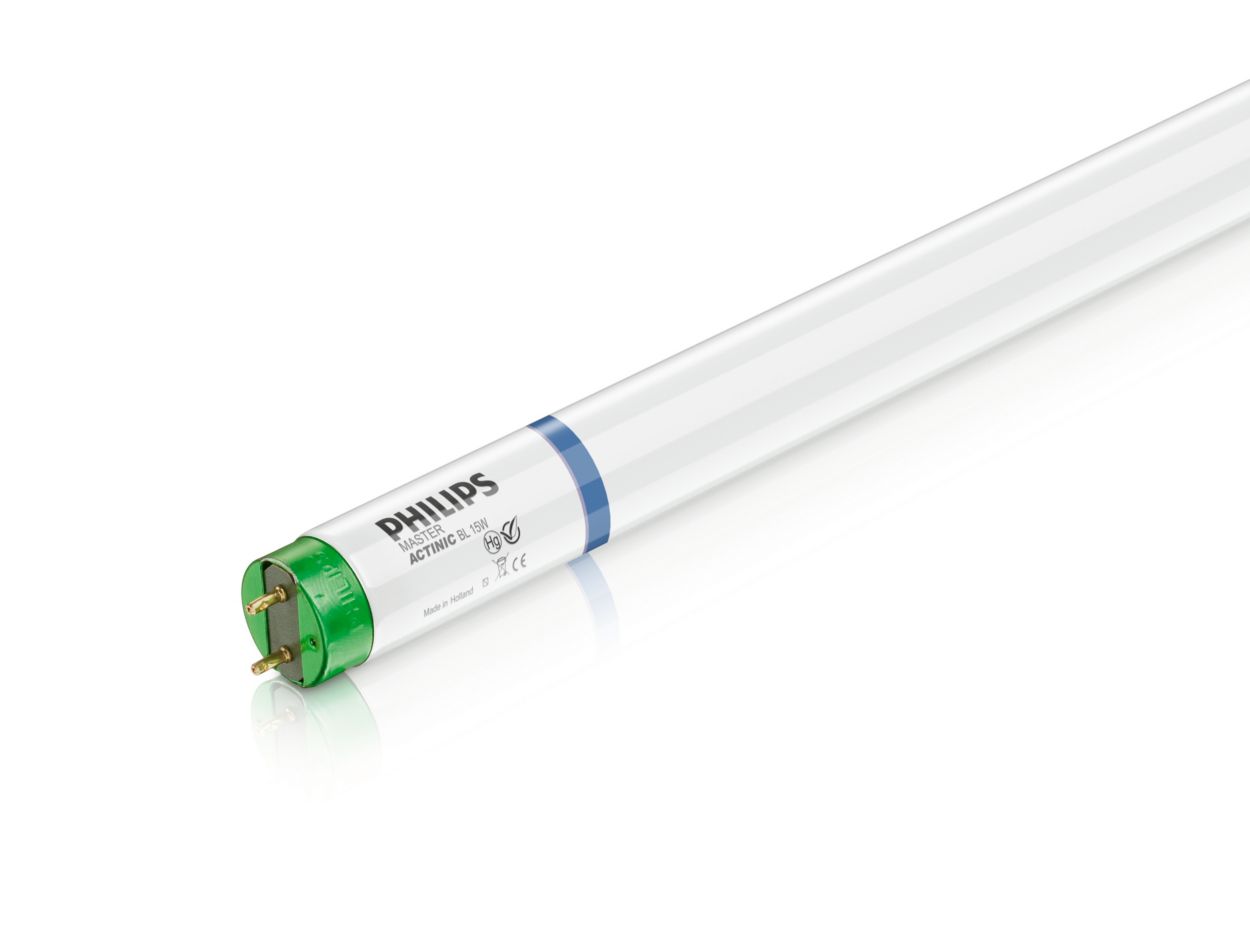

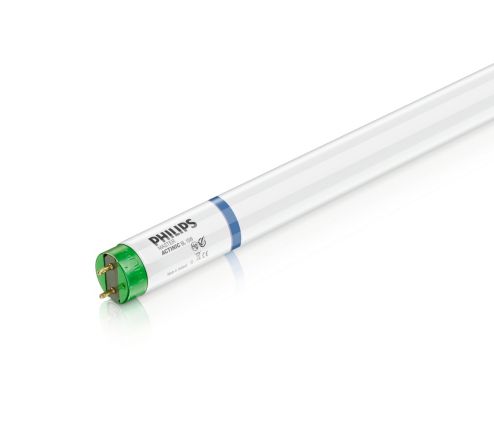

      Master Actinic BL TL-D 15W/10 Secura
      Master Actinic BL TL-D 15W/10 Secura
      MASTER Actinic BL TL-D Secura

      Master Actinic BL TL-D 15W/10 Secura

      Order code: 285783

      Downloads

      Spec Sheet
      Size:386.6 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G13  [ Medium Bi-Pin Fluorescent]
    Main Application
    Insect traps
    Life to 50% Failures (Nom)
    13000 h
    Useful Life (Nom)
    12000 h
    Light technical
    Color Code
    10
    Color Designation
    Actinic
    Chromaticity Coordinate X (Nom)
    225
    Chromaticity Coordinate Y (Nom)
    215
    UV Depreciation at 2000 h
    7 %
    UV Depreciation at 5000 h
    14 %
    UV Depreciation at 8000 h
    18 %
    Operating and electrical
    Power (Rated) (Nom)
    15.5 W
    Lamp Current (Nom)
    0.335 A
    Voltage (Nom)
    55 V
    Mechanical and housing
    Bulb Shape
    T8  [ T8]
    Approval and application
    Mercury (Hg) Content (Nom)
    3.0 mg
    UV
    UV-B/UV-A (IEC)
    0.2 %
    UV-A Radiation 100Hr (IEC)
    3.15 W
    Product data
    Order product name
    MASTER Actinic BL TL-D 15W/10 Secura
    EAN/UPC - Product
    8718291196082
    Order code
    285783
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    25
    Material Nr. (12NC)
    928022701003
    Net Weight (Piece)
    0.192 lb
    Installation Diagrams
    TL-D G13
    TL-D G13
    G13
    G13
    Photometrics
    XDPB_XUBTLD_10-Spectral power distribution B/W
    XDPB_XUBTLD_10-Spectral power distribution B/W
    XDPO_XUBTLD_10-Spectral power distribution Colour
    XDPO_XUBTLD_10-Spectral power distribution Colour
