    • Actinic BL TL(-K)/TL-D(-K) – optimized for Electronic Fly Killers

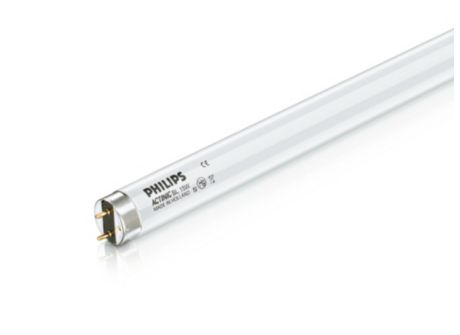

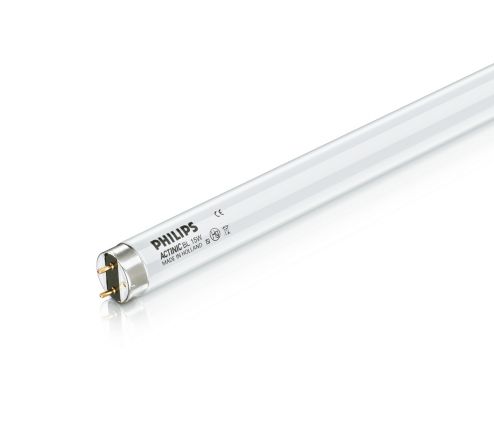

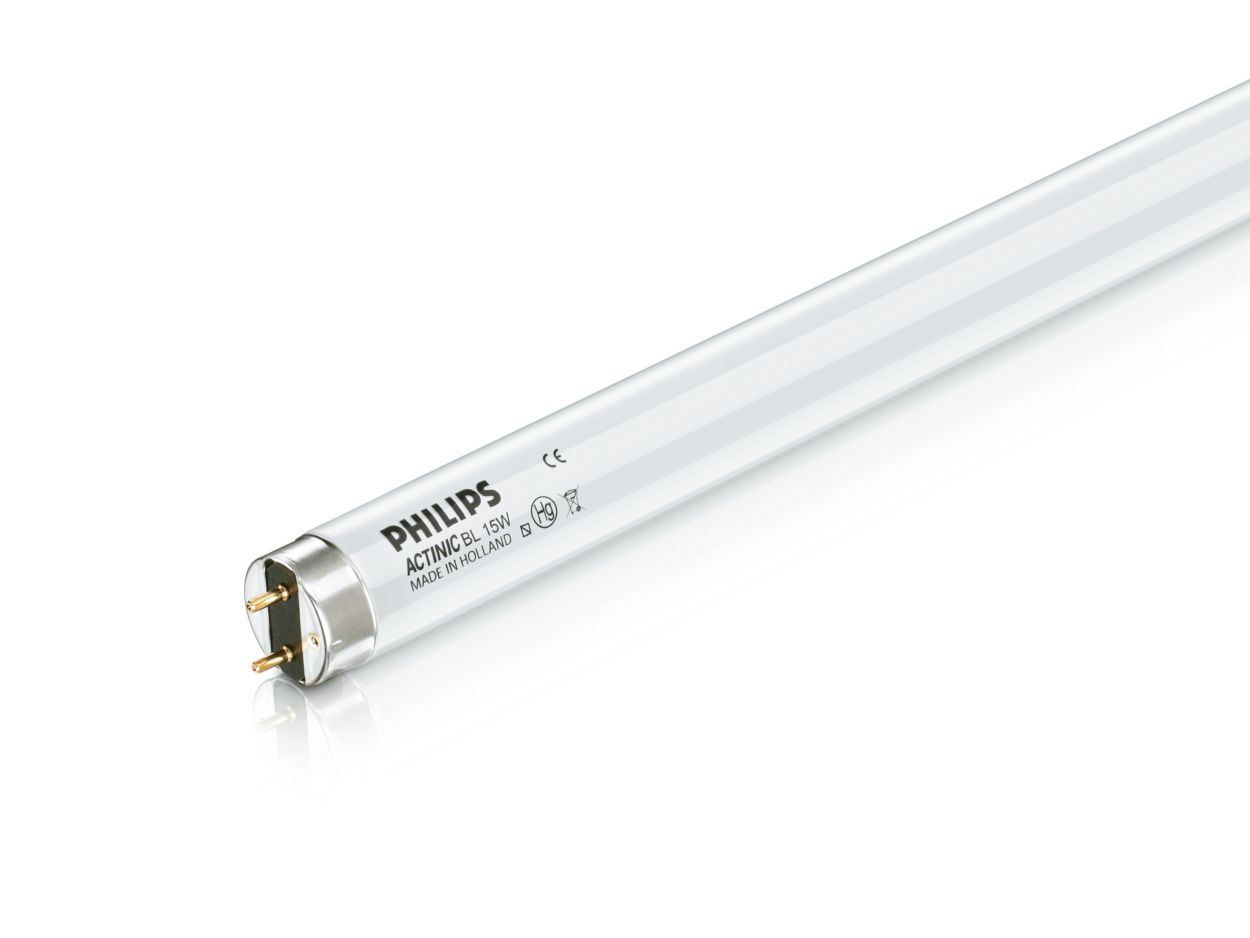

      Actinic BL TL-D 18W/10 1SL/25
      Actinic BL TL-D 18W/10 1SL/25
      Actinic BL TL(-K)/TL-D(-K)

      Actinic BL TL-D 18W/10 1SL/25

      Order code: 286708

      Downloads

      Spec Sheet
      Size:388.8 kB

      See all downloads

    Specifications Show all

    General information
    Base
    G13  [ Medium Bi-Pin Fluorescent]
    Main Application
    Insect traps
    Life to 50% Failures (Nom)
    13000 h
    Useful Life (Nom)
    9000 h
    Light technical
    Color Code
    10
    Color Designation
    Actinic
    Chromaticity Coordinate X (Nom)
    222
    Chromaticity Coordinate Y (Nom)
    210
    UV Depreciation at 2000 h
    8 %
    UV Depreciation at 5000 h
    12 %
    UV Depreciation at 8000 h
    16 %
    Operating and electrical
    Power (Rated) (Nom)
    18 W
    Lamp Current (Nom)
    0.36 A
    Voltage (Nom)
    59 V
    Mechanical and housing
    Bulb Shape
    T8  [ T8]
    Approval and application
    Mercury (Hg) Content (Nom)
    5.0 mg
    UV
    UV-B/UV-A (IEC)
    0.2 %
    UV-A Radiation 100Hr (IEC)
    5.0 W
    Product data
    Order product name
    Actinic BL TL-D 18W/10 1SL/25
    EAN/UPC - Product
    8711500263254
    Order code
    286708
    Numerator - Quantity Per Pack
    1
    Local code description
    Actinic BL TL-D 18W/10 1SL/25
    Numerator - Packs per outer box
    25
    Material Nr. (12NC)
    928048001003
    Net Weight (Piece)
    0.157 lb
    Installation Diagrams
    TL-D G13
    TL-D G13
    G13
    G13
    Photometrics
    XDPB_XUBTLD_10-Spectral power distribution B/W
    XDPB_XUBTLD_10-Spectral power distribution B/W
    XDPO_XUBTLD_10-Spectral power distribution Colour
    XDPO_XUBTLD_10-Spectral power distribution Colour
