    • MSD Platinum – The power to light your creativity

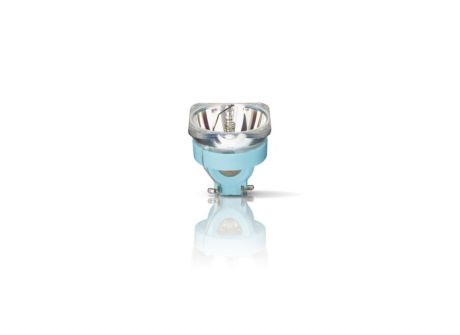

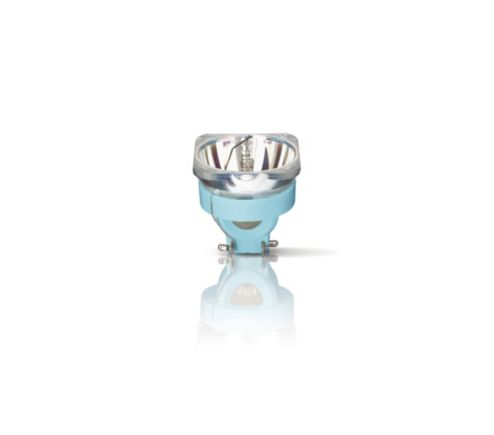

      MSD Platinum 17 RA 1CT/8
      MSD Platinum 17 RA 1CT/8
      MSD Platinum (Touring/Stage)

      MSD Platinum 17 RA 1CT/8

      Order code: 259176

      Downloads

      Spec Sheet
      Size:2.6 MB

      See all downloads

    Specifications Show all

    General information
    Base
    -  [ -]
    Operating Position
    Universal  [ Universal]
    Main Application
    Stage/Touring
    Life to 50% Failures (Nom)
    1500 h
    System Description
    Reflector-E20.9
    Light technical
    Color Code
    2
    Initial lumen (Nom)
    15250 lm
    Chromaticity Coordinate X (Nom)
    307
    Chromaticity Coordinate Y (Nom)
    316
    Correlated Color Temperature (Nom)
    7000 K
    Color Rendering Index (Nom)
    85
    Operating and electrical
    Power (Rated) (Nom)
    350.0 W
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Cap-Base Information
    na  [ -]
    Luminaire design requirements
    Bulb Temperature (Max)
    1616 °F
    Pinch Temperature (Max)
    662 °F
    Pinch Temperature (Max)-DUP(do not use)
    662 °F
    Product data
    Order product name
    MSD Platinum 17 RA 1CT/8
    EAN/UPC - Product
    8718291767794
    Order code
    259176
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    8
    Material Nr. (12NC)
    928197305314
    Net Weight (Piece)
    0.265 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    MSD Platinum 17 RA
    MSD Platinum 17 RA
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Photometrics
