    • MSR Platinum 35 ST – The best choice for studio/theater lighting

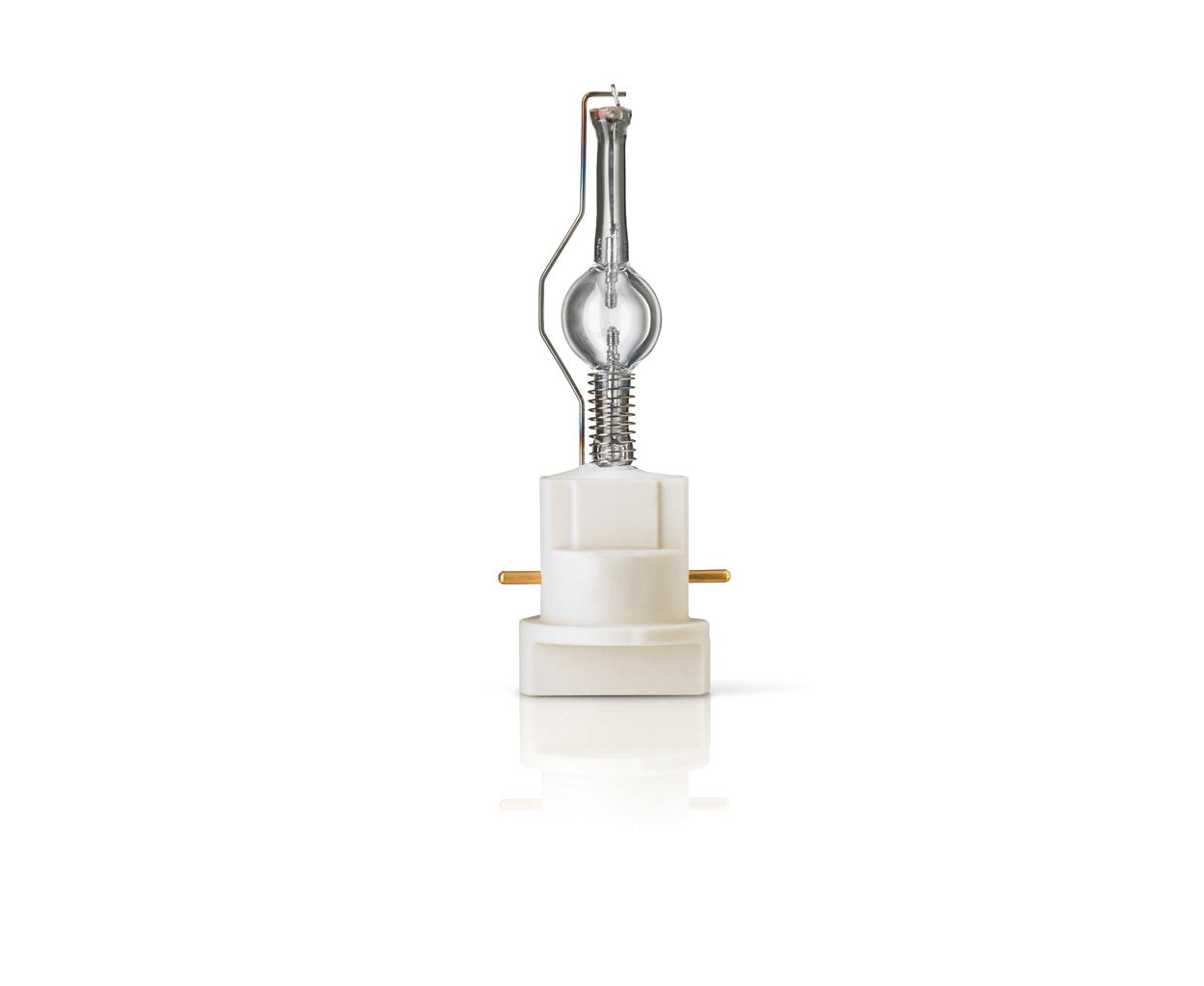

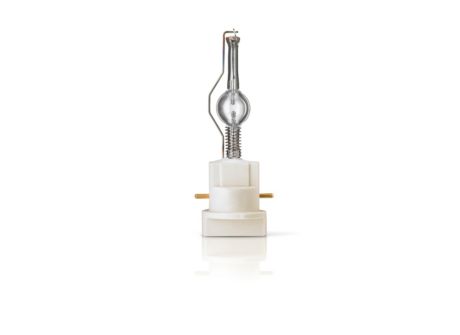

      MSR Platinum 35 ST
      MSR Platinum 35 ST
      MSR Platinum (Studio)

      MSR Platinum 35 ST

      Order code: 293159

      Downloads

      Spec Sheet
      Size:222.0 kB

      See all downloads

    Specifications Show all

    General information
    Base
    PGJX36  [ PGJX36]
    Operating Position
    Universal  [ Universal]
    Main Application
    Studio/Theatre/TV
    Life to 50% Failures (Nom)
    750 h
    System Description
    na  [ -]
    Light technical
    Color Code
    -  [ Not Specified]
    Initial lumen (Nom)
    56700 lm
    Correlated Color Temperature (Nom)
    6000 K
    Chromaticity Coordinate X (SO) (Nom)
    0.316
    Chromaticity Coordinate Y (SO) (Nom)
    0.336
    Color Rendering Index (SO) (Nom)
    80
    Luminous Flux (SO) (Nom)
    24000 lm
    Luminous Efficacy (rated) (Nom)
    72 lm/W
    Color Rendering Index (Nom)
    75
    Operating and electrical
    Power (Rated) (Nom)
    804 W
    Lamp Current (Nom)
    11.5 A
    Ignition Supply Voltage (Min)
    220 V
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Cap-Base Information
    PGJX36
    Luminaire design requirements
    Bulb Temperature (Max)
    1742 °F
    Pinch Temperature (Max)
    842 °F
    Pinch Temperature (Max)-DUP(do not use)
    842 °F
    Pinch Temperature (Min)
    482 °F
    Pinch Temperature (Min)-DUP(do not use)
    482 °F
    Product data
    Order product name
    MSR Platinum 35 ST
    EAN/UPC - Product
    8718291704065
    Order code
    293159
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    16
    Material Nr. (12NC)
    928194505114
    Net Weight (Piece)
    0.117 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    MSR Platinum 35 (ST)
    MSR Platinum 35 (ST)
    PGJX36
    PGJX36
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Photometrics
    XDPO_XDMSR_0006-Spectral power distribution Colour
    XDPO_XDMSR_0006-Spectral power distribution Colour
