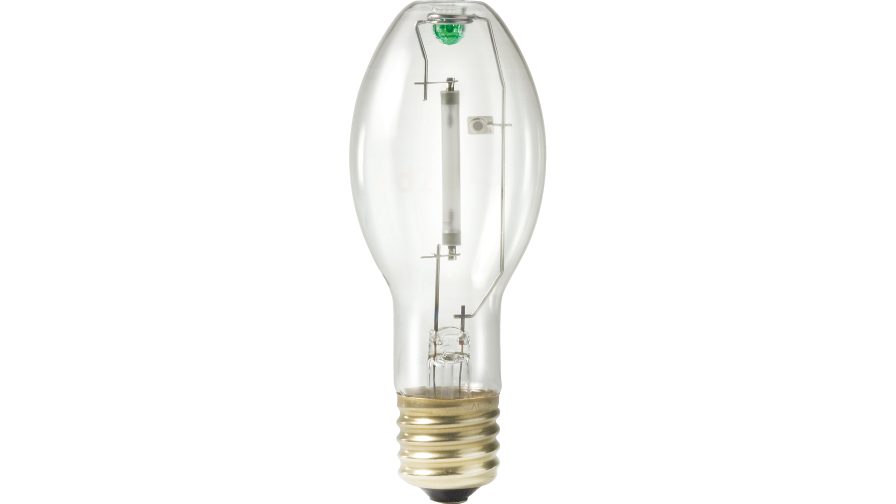

C150S55/ALTO 12PK

Specifications Show all

General information

Base	E39  [ Single Contact Mogul Screw]
Operating Position	Universal  [ Universal]
Main Application	General and Street Lighting
ANSI Code HID	S55
Features	ALTO® (ALTO)
Footnotes HID 1	C150S55 and C150S56 lamps are not electrically interchangeable. Different ballasts are required for the proper operation of each lamp type. ANSI type S55 ballast is for the 55-volt (normal) lamp and the ANSI type S56 ballast is for the 100 volt (nominal) lamp. (370)

Light technical

Luminous Flux (Rated) (Min)	14400 lm
Luminous Flux (Rated) (Nom)	16000 lm
Design Mean Lumens	14220 lm
Chromaticity Coordinate X (Nom)	514
Chromaticity Coordinate Y (Nom)	424
Correlated Color Temperature (Nom)	2100 K
Luminous Efficacy (Rated) (Min)	96 lm/W
Luminous Efficacy (rated) (Nom)	106 lm/W
Color Rendering Index (Nom)	17

Operating and electrical

Power (Rated) (Nom)	150.6 W
Lamp Current (Nom)	3.2 A
Ignition Supply Voltage (Max)	110 V
Re-Ignition Time (Min) (Max)	2 min
Ignition Time (Max)	5 s
Voltage (Max)	62 V
Voltage (Min)	48 V
Voltage (Nom)	55 V

Mechanical and housing

Bulb Finish	Clear
Cap-Base Information	Brass  [ Brass Cap]
Bulb Material	Hard Glass
Bulb Shape	ED-23 1/2

Approval and application

Mercury (Hg) Content (Max)

17 mg

Luminaire design requirements

Bulb Temperature (Max)	752 °F
Cap-Base Temperature (Max)	410 °F
Cap-Base Temperature (Max)-DUP(do not use)	410 °F

Product data

Order product name	SON 150W E39 ED75 CL SL/12
EAN/UPC - Product	046677467234
Order code	467233
Numerator - Quantity Per Pack	1
Local code description	SON 150W E39 ED75 CL SL/12
Numerator - Packs per outer box	12
Material Nr. (12NC)	928601139790
Net Weight (Piece)	0.273 lb
