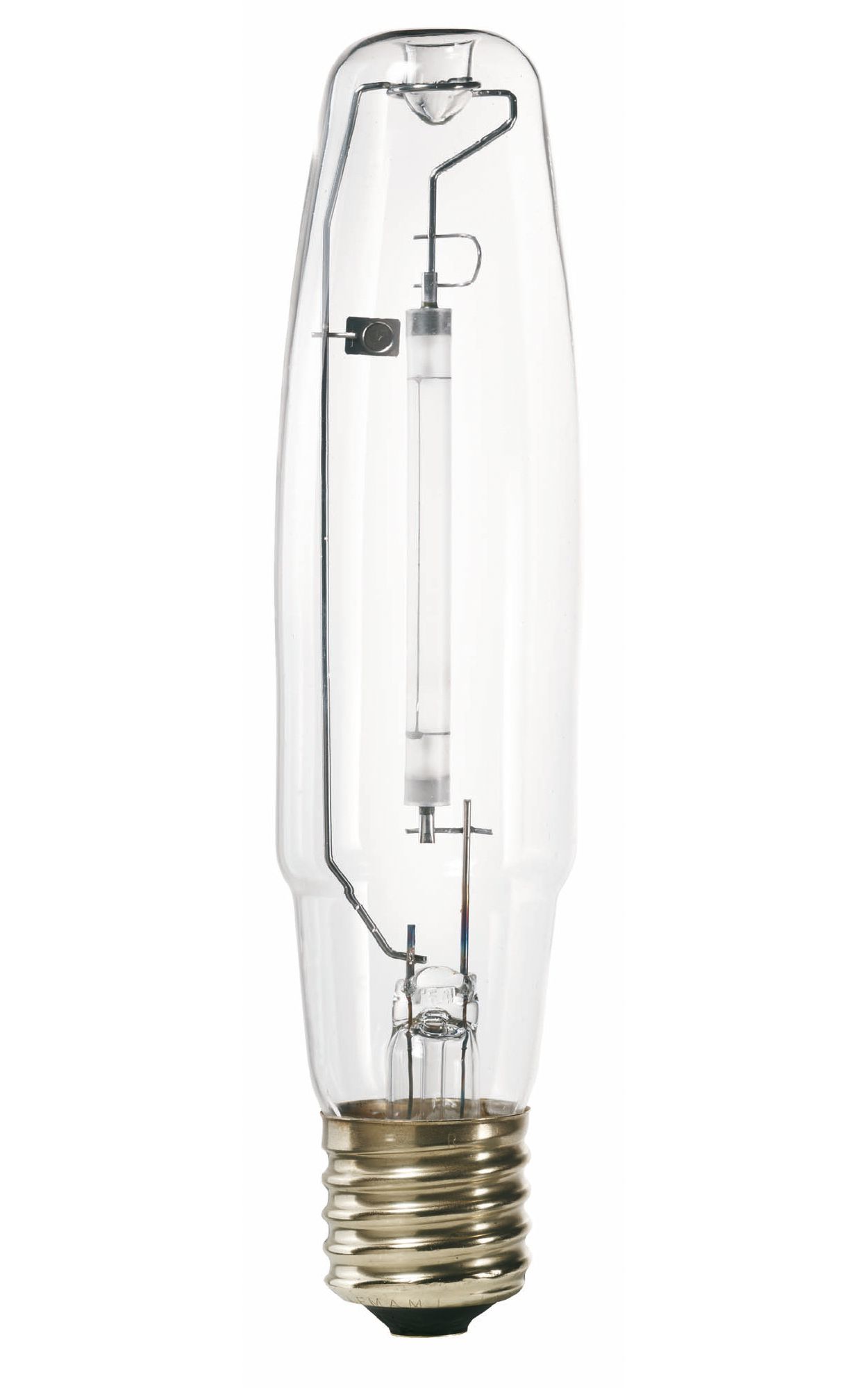

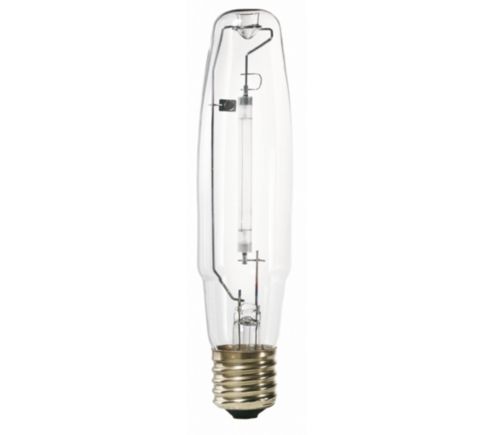

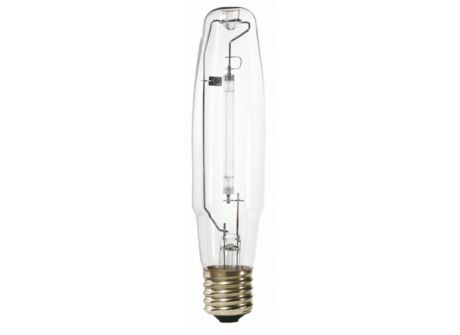

C250S50/ALTO 12PK

Specifications Show all

General information

Base	E39  [ Single Contact Mogul Screw]
Operating Position	Universal  [ Universal]
Main Application	General and Street Lighting
ANSI Code HID	S50
Features	ALTO® (ALTO)

Light technical

Luminous Flux (Rated) (Min)	25600 lm
Luminous Flux (Rated) (Nom)	28500 lm
Design Mean Lumens	24300 lm
Chromaticity Coordinate X (Nom)	523
Chromaticity Coordinate Y (Nom)	412
Correlated Color Temperature (Nom)	2100 K
Luminous Efficacy (Rated) (Min)	102 lm/W
Luminous Efficacy (rated) (Nom)	114 lm/W
Color Rendering Index (Nom)	26

Operating and electrical

Power (Rated) (Nom)	251 W
Lamp Current (Nom)	3.0 A
Ignition Supply Voltage (Max)	198 V
Re-Ignition Time (Min) (Max)	2 min
Ignition Time (Max)	5 s
Voltage (Max)	110 V
Voltage (Min)	79 V
Voltage (Nom)	95 V

Mechanical and housing

Bulb Finish	Clear
Cap-Base Information	Brass  [ Brass Cap]
Bulb Material	Hard Glass
Bulb Shape	ED18  [ ED18]

Approval and application

Mercury (Hg) Content (Max)

23.5 mg

UV

Pet (Niosh) (Nom)	710.67 h/500lx
Damage Factor D/fc (Nom)	0.04

Luminaire design requirements

Bulb Temperature (Max)	752 °F
Cap-Base Temperature (Max)	410 °F
Cap-Base Temperature (Max)-DUP(do not use)	410 °F

Product data

Order product name	SON 250W E39 ED58 CL SL/12
EAN/UPC - Product	046677467210
Order code	467217
Numerator - Quantity Per Pack	1
Local code description	SON 250W E39 ED58 CL SL/12
Numerator - Packs per outer box	12
Material Nr. (12NC)	928601139490
Net Weight (Piece)	0.368 lb
