      C250S50/ALTO NC HPS 12PK
      C250S50/ALTO NC HPS 12PK

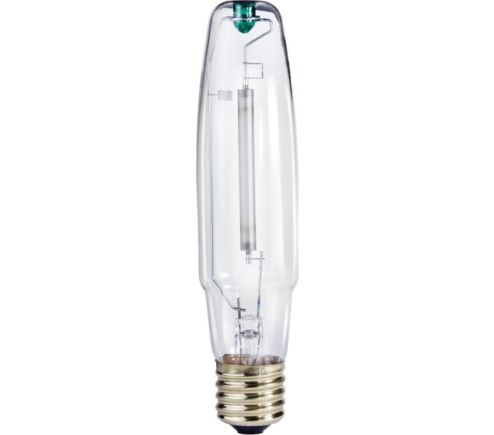

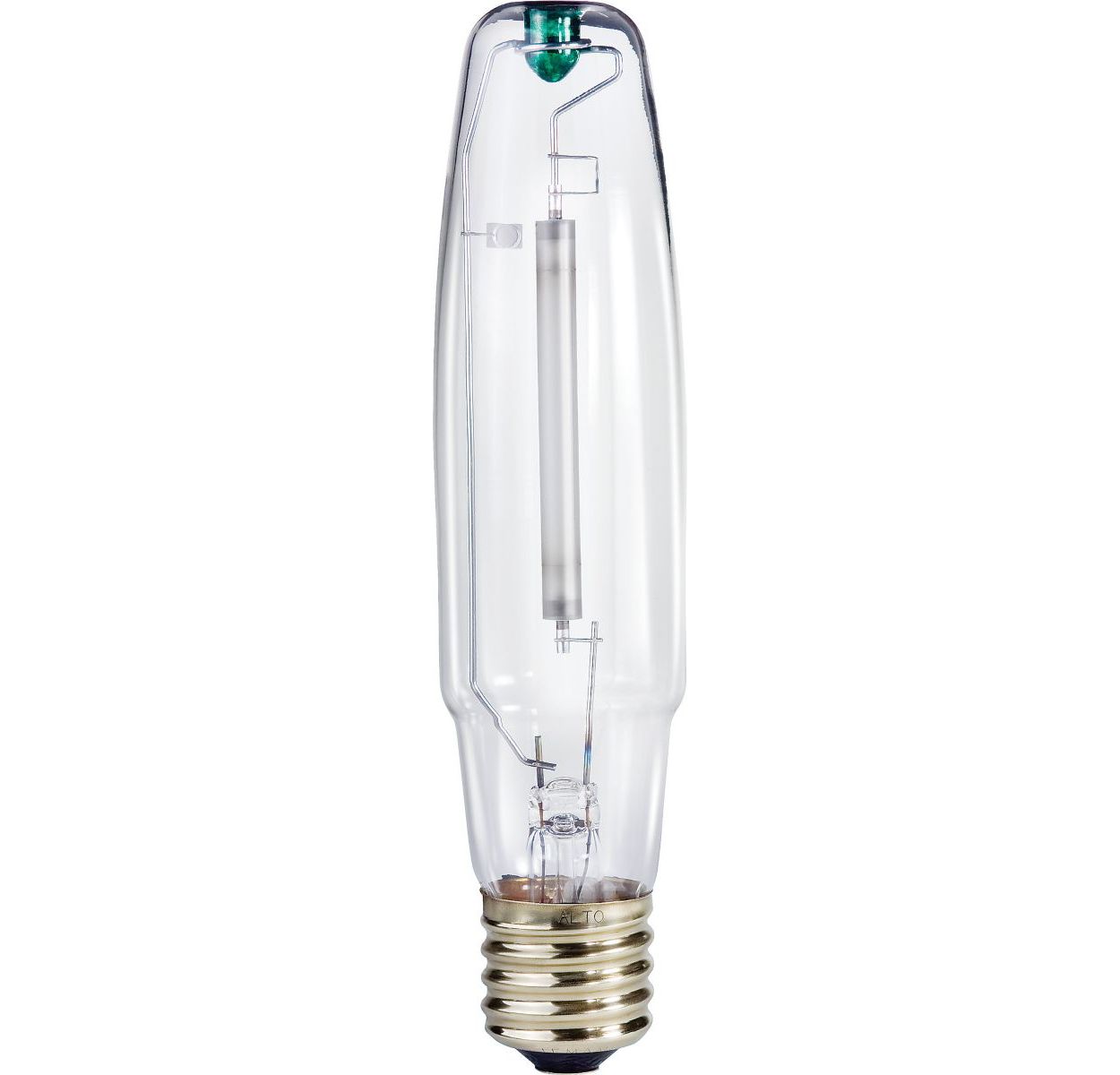

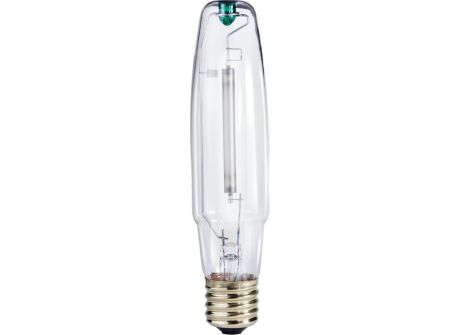

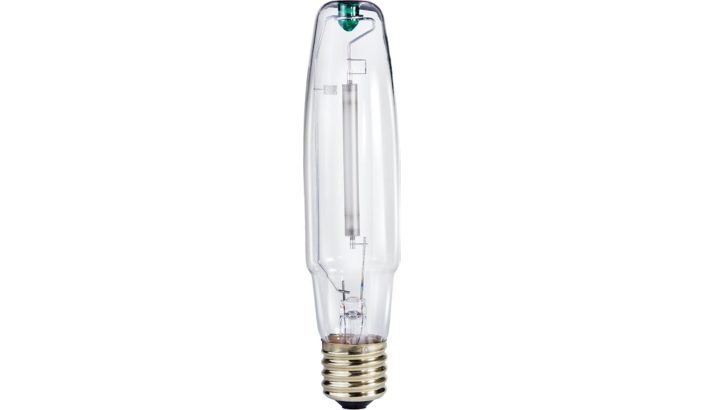

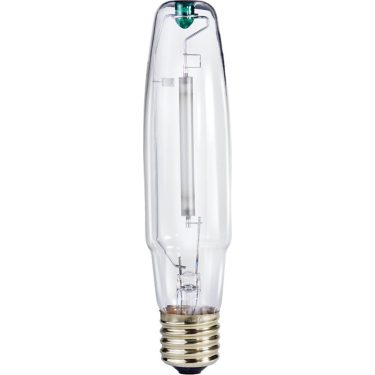

      Ceramalux ALTO Non-Cycling

      C250S50/ALTO NC HPS 12PK

      Order code: 467340

      Downloads

      Spec Sheet
      Size:360.1 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E39  [ Single Contact Mogul Screw]
    Operating Position
    Universal  [ Universal]
    Main Application
    Street Lighting (S)
    ANSI Code HID
    S50
    Features
    ALTO® Non-Cycling
    Light technical
    Luminous Flux (Rated) (Min)
    25600 lm
    Luminous Flux (Rated) (Nom)
    28500 lm
    Design Mean Lumens
    25650 lm
    Chromaticity Coordinate X (Nom)
    0.523
    Chromaticity Coordinate Y (Nom)
    0.415
    Correlated Color Temperature (Nom)
    2100 K
    Luminous Efficacy (Rated) (Min)
    102 lm/W
    Luminous Efficacy (rated) (Nom)
    114 lm/W
    Color Rendering Index (Nom)
    21
    Operating and electrical
    Power (Rated) (Nom)
    251 W
    Lamp Current (Nom)
    1.8 A
    Ignition Supply Voltage (Max)
    198 V
    Re-Ignition Time (Min) (Max)
    2 min
    Ignition Time (Max)
    5 s
    Voltage (Max)
    120 V
    Voltage (Min)
    90 V
    Voltage (Nom)
    100 V
    Mechanical and housing
    Bulb Finish
    Clear
    Cap-Base Information
    Nic/Brass
    Bulb Material
    Hard Glass
    Bulb Shape
    ED18  [ ED18]
    Approval and application
    Picogram Per Lumen Hour
    4.4 pg/lm.h
    Mercury (Hg) Content (Nom)
    3.36 mg
    Luminaire design requirements
    Bulb Temperature (Max)
    752 °F
    Cap-Base Temperature (Max)
    410 °F
    Cap-Base Temperature (Max)-DUP(do not use)
    410 °F
    Product data
    Order product name
    C250S50/ALTO NC HPS 12PK
    EAN/UPC - Product
    046677467340
    Order code
    467340
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    928601156190
    Net Weight (Piece)
    0.353 lb
    Installation Diagrams
     250 W Single Contact Mogul Screw
    250 W Single Contact Mogul Screw
    E39
    E39
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
