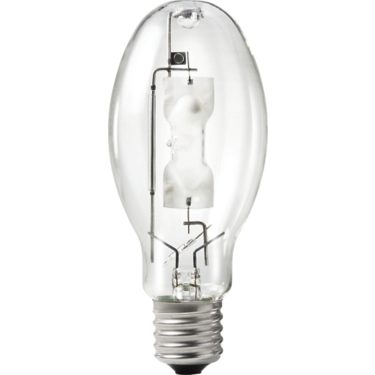

MS175/BU/PS 12PK

Specifications Show all

General information

Base	E39  [ Single Contact Mogul Screw]
Operating Position	Base Up +/- 15 D  [ Base Up +/- 15 D]
Main Application	General Lighting (G)
Life to 50% Failures (Nom)	15000 h
ANSI Code HID	M152/M137/E
System Description	Pulse Start

Light technical

Color Code	635  [ CCT of 3500K]
Luminous Flux (Rated) (Min)	14400 lm
Luminous Flux (Rated) (Nom)	16000 lm
Color Designation	White (WH)
Design Mean Lumens	11200 lm
Chromaticity Coordinate X (Nom)	395
Chromaticity Coordinate Y (Nom)	390
Luminous Efficacy (Rated) (Min)	82.3 lm/W
Luminous Efficacy (rated) (Nom)	91 lm/W
Color Rendering Index (Nom)	62

Operating and electrical

Lamp Current (Nom)	1.5 A
Ignition Supply Voltage (Min)	254 V
Re-Ignition Time (Min) (Max)	10 min
Ignition Time (Max)	120 s
Voltage (Max)	147 V
Voltage (Min)	117 V
Voltage (Nom)	132 V

Mechanical and housing

Bulb Finish	Clear
Cap-Base Information	Nic/Brass
Bulb Material	Hard Glass
Bulb Shape	ED28  [ ED28]

Approval and application

Mercury (Hg) Content (Nom)

23.5 mg

UV

Pet (Niosh) (Nom)	54.8 h/500lx
Damage Factor D/fc (Nom)	0.48

Luminaire design requirements

Bulb Temperature (Max)	752 °F
Cap-Base Temperature (Max)	410 °F
Cap-Base Temperature (Max)-DUP(do not use)	410 °F

Product data

Order product name	MS175/BU/PS 12PK
EAN/UPC - Product	046677276621
Order code	276626
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	12
Material Nr. (12NC)	928601152103
Net Weight (Piece)	0.002 lb
