    • MasterColor CDM ED17 Protected

      MHC150/U/MP/3K ALTO 12PK
      MHC150/U/MP/3K ALTO 12PK

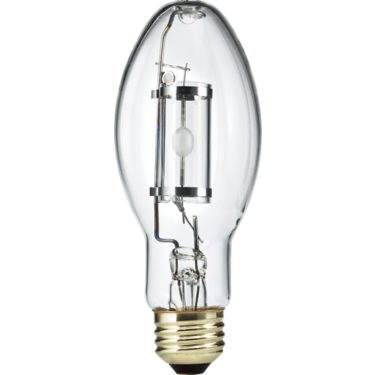

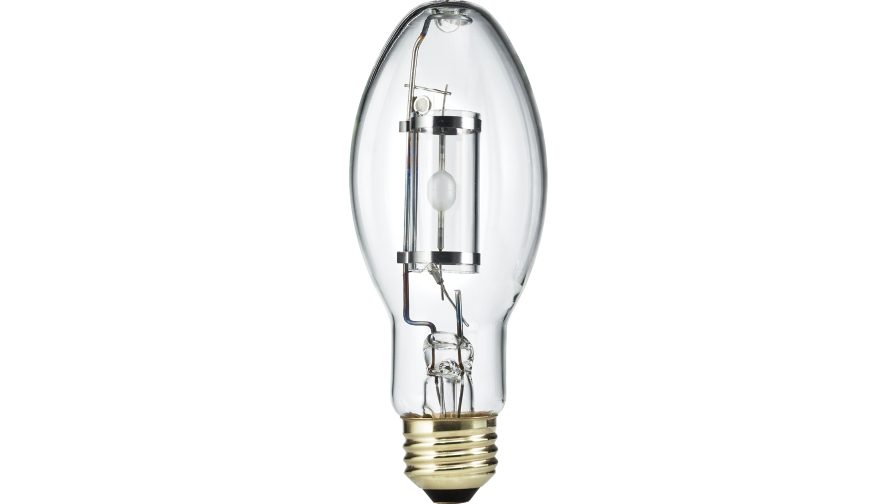

      MasterColor CDM ED17 Protected

      MHC150/U/MP/3K ALTO 12PK

      Order code: 134635

      Downloads

      Spec Sheet
      Size:369.8 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E26  [ Single Contact Medium Screw]
    Operating Position
    Universal  [ Universal]
    Main Application
    General Lighting (G)
    Life to 50% Failures (Nom)
    16000 h
    ANSI Code HID
    M142/M102/O
    Features
    ALTO® + FadeBlock™
    Light technical
    Color Code
    830  [ CCT of 3000K]
    Luminous Flux (Rated) (Min)
    11600 lm
    Luminous Flux (Rated) (Nom)
    12900 lm
    Color Designation
    Warm White (WW)
    Lumen Maintenance - 40% Life
    70 %
    Lumen Maintenance - 10% Life
    85 %
    Design Mean Lumens
    9030 lm
    Chromaticity Coordinate X (Max)
    0.443
    Chromaticity Coordinate X (Min)
    0.425
    Chromaticity Coordinate X (Nom)
    0.434
    Chromaticity Coordinate Y (Max)
    0.398
    Chromaticity Coordinate Y (Min)
    0.386
    Chromaticity Coordinate Y (Nom)
    0.392
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (Rated) (Min)
    77.4 lm/W
    Luminous Efficacy (rated) (Nom)
    86 lm/W
    Color Rendering Index (Min)
    80
    Color Rendering Index (Nom)
    83
    Operating and electrical
    Lamp Current (Nom)
    1.8 A
    Ignition Supply Voltage (Min)
    235 V
    Re-Ignition Time (Min) (Max)
    12 min
    Ignition Time (Max)
    10 s
    Voltage (Max)
    105 V
    Voltage (Min)
    85 V
    Voltage (Nom)
    95 V
    Mechanical and housing
    Bulb Finish
    Clear
    Cap-Base Information
    Brass  [ Brass Cap]
    Bulb Material
    Hard Glass
    Bulb Shape
    ED17P  [ ED17P]
    Approval and application
    Picogram Per Lumen Hour
    98.3 pg/lm.h
    Mercury (Hg) Content (Max)
    14.85 mg
    UV
    Pet (Niosh) (Nom)
    302.9 h/500lx
    Damage Factor D/fc (Nom)
    0.19
    Luminaire design requirements
    Bulb Temperature (Max)
    752 °F
    Cap-Base Temperature (Max)
    374 °F
    Cap-Base Temperature (Max)-DUP(do not use)
    374 °F
    Product data
    Order product name
    MHC150/U/MP/3K ALTO 12PK
    EAN/UPC - Product
    046677134631
    Order code
    134635
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    928601171501
    Net Weight (Piece)
    0.002 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    E26 ED-17, ED-17P
    E26 ED-17, ED-17P
    E26
    E26
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Performance Diagrams
    LDRU_D-MHC-P_0001-Lamp performance during run-up
    LDRU_D-MHC-P_0001-Lamp performance during run-up
    LDLE_D-MHC-P_0001-Life expectancy diagram
    LDLE_D-MHC-P_0001-Life expectancy diagram
