    • Direct retrofit and long life with immediate energy savings

      CDM330/C/U/O/4K EA 130V 6/1
      CDM330/C/U/O/4K EA 130V 6/1

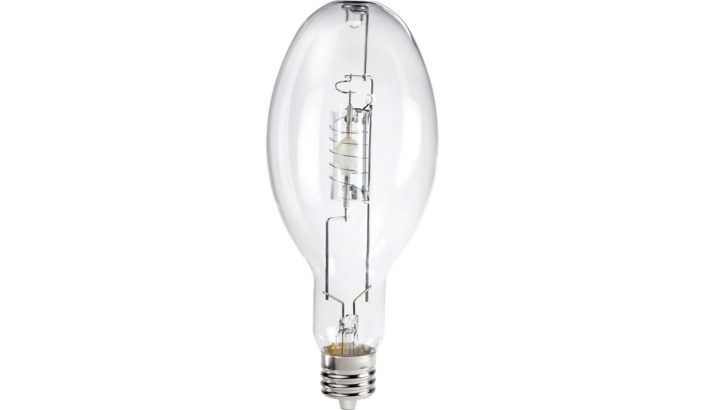

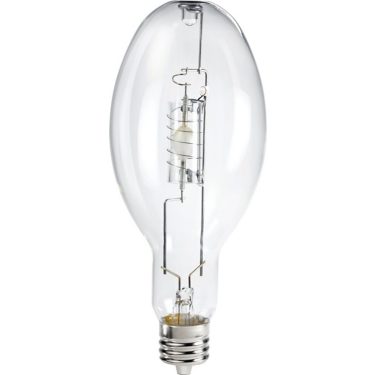

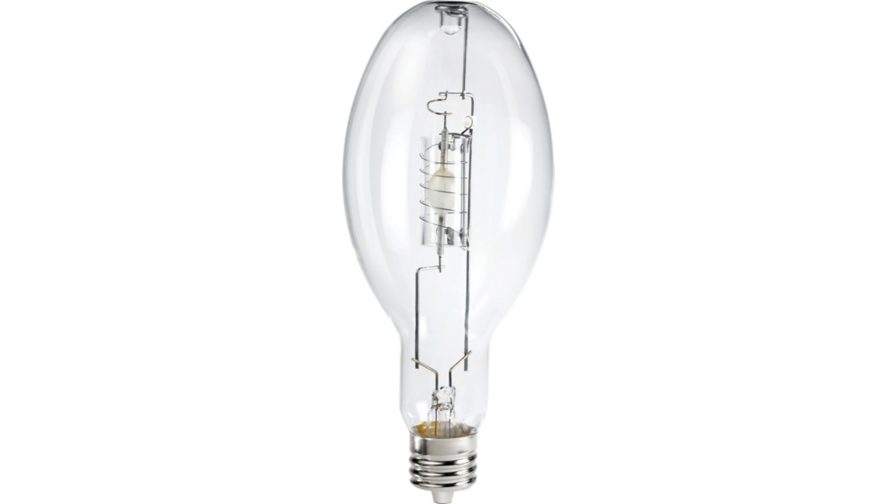

      Energy Advantage CDM Lamps with Allstart Technology

      CDM330/C/U/O/4K EA 130V 6/1

      Order code: 236935

      Downloads

      Spec Sheet
      Size:343.6 kB

      See all downloads

    Specifications Show all

    General information
    Base
    EX39  [ Exclusionary Mogul Screw]
    Operating Position
    Universal  [ Universal]
    Life to 50% Failures (Nom)
    24000 h
    ANSI Code HID
    C185/O
    Features
    Energy Advantage AllStart
    Light technical
    Color Code
    940  [ CCT of 4000K]
    Luminous Flux (Rated) (Min)
    28000 lm
    Luminous Flux (Rated) (Nom)
    31000 lm
    Color Designation
    4000 Kelvin
    Lumen Maintenance - 40% Life
    80 %
    Lumen Maintenance - 10% Life
    90 %
    Saturated Red (R9)
    75
    Design Mean Lumens
    23250 lm
    Chromaticity Coordinate X (Max)
    0.402
    Chromaticity Coordinate X (Min)
    0.370
    Chromaticity Coordinate X (Nom)
    0.386
    Chromaticity Coordinate Y (Max)
    0.404
    Chromaticity Coordinate Y (Min)
    0.364
    Chromaticity Coordinate Y (Nom)
    0.390
    Correlated Color Temperature (Nom)
    3950 K
    Luminous Efficacy (Rated) (Min)
    85 lm/W
    Luminous Efficacy (rated) (Nom)
    94 lm/W
    Color Rendering Index (Min)
    -
    Color Rendering Index (Nom)
    86
    Operating and electrical
    Lamp Current (Nom)
    3.02 A
    Ignition Supply Voltage (Min)
    280 V
    Re-Ignition Time (Min) (Nom)
    15 min
    Ignition Time (Max)
    120 s
    Voltage (Max)
    140 V
    Voltage (Min)
    120 V
    Voltage (Nom)
    130 V
    Mechanical and housing
    Bulb Finish
    Coated glass
    Overall Length (Max)
    11.5 in
    Bulb Shape
    ED37  [ ED37]
    Approval and application
    Picogram Per Lumen Hour
    90 pg/lm.h
    Mercury (Hg) Content (Max)
    50 mg
    UV
    Pet (Niosh) (Nom)
    42.88 h/500lx
    Damage Factor D/fc (Nom)
    0.32
    Luminaire design requirements
    Bulb Temperature (Max)
    325 °F
    Cap-Base Temperature (Nom)
    266 °F
    Product data
    Order product name
    330W ED37 CO Allstart 1SL
    EAN/UPC - Product
    046677236939
    Order code
    236935
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    928601166803
    Net Weight (Piece)
    0.002 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    EX39, ED-37
    EX39, ED-37
    EX39
    EX39
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Performance Diagrams
    LDSL_D-CDM-AL_0006-Service Lifetime
    LDSL_D-CDM-AL_0006-Service Lifetime
