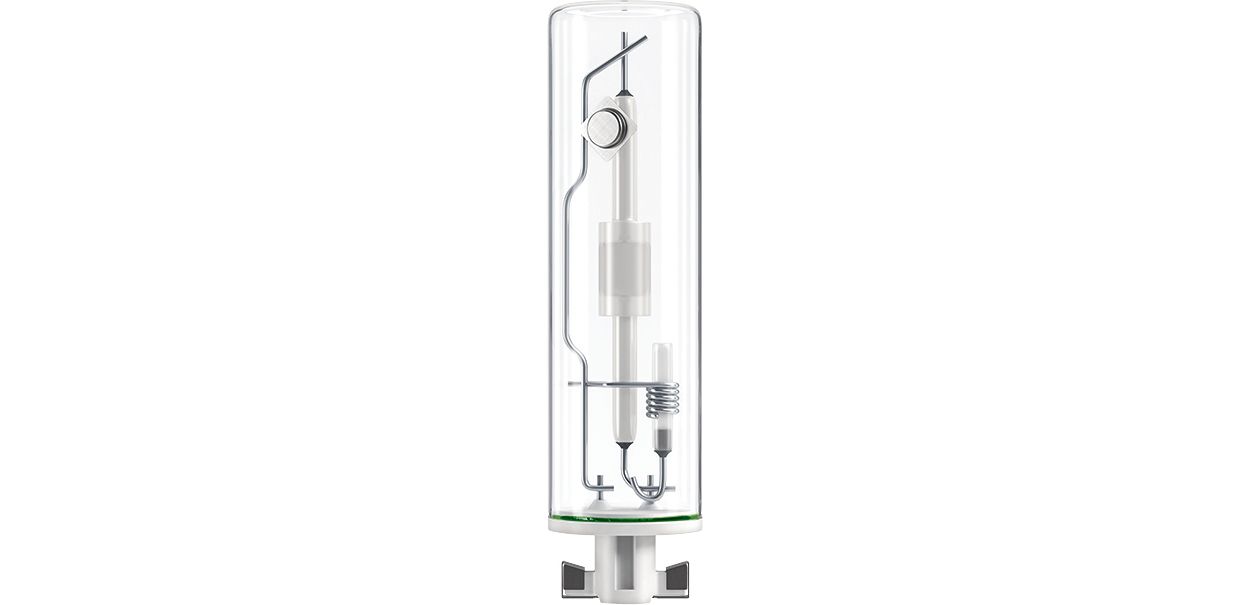

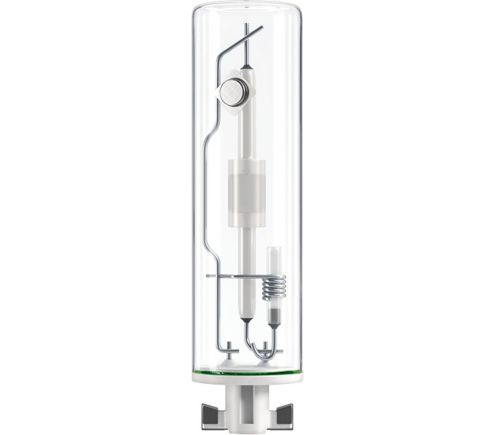

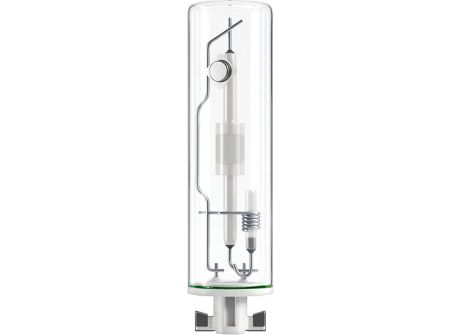

      MASTERColor CDM-Tm Elite Mini 35W/930 GU6.5
      MASTERColor CDM-Tm Elite Mini 35W/930 GU6.5
      MasterColor CDM-Tm Elite Mini GU6.5

      MASTERColor CDM-Tm Elite Mini 35W/930 GU6.5

      Downloads

      Spec Sheet
      Size:400.8 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Voltage (Nom)
    87 V
    Power Consumption
    39.1 W
    Voltage (Nom)
    87 V
    Approval and Application
    Mercury (Hg) Content (Nom)
    4.7 mg
    Energy Consumption kWh/1000 h
    43 kWh
    Product Data
    Full product name
    MASTERColor CDM-Tm Elite Mini 35W/930 GU6.5
    EAN/UPC - Case
    50046677418798
    Order product name
    MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Order code
    418798
    Numerator - Packs per outer box
    12
    Material number (12NC)
    928187405115
    Numerator - Quantity Per Pack
    1
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Bulb Shape
    T13.3  [T 13.3mm]
    Bulb Finish
    Clear
    General Information
    Cap-Base
    GU6.5  [GU6.5]
    Operating Position
    UNIVERSAL  [Any or Universal (U)]
    Light Technical
    Chromaticity Coordinate X (Nom)
    0.435
    Chromaticity Coordinate Y (Nom)
    0.396
    Luminous Efficacy (rated) (Nom)
    3,950 lm/W
    Color rendering index (CRI)
    90
    Correlated Color Temperature (Nom)
    3000 K
    Color Designation
    Warm White (WW)
    Color Code
    930  [CCT of 3000K]
    Installation Diagrams
     GU6.5 T 13.3mm Clear CCT of 3000K
    GU6.5 T 13.3mm Clear CCT of 3000K
    GU6.5
    GU6.5
    any
    any
    Performance Diagrams
    Lamp Performance During Run-up - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Lamp Performance During Run-up - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Lumen Maintenance Diagram - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Lumen Maintenance Diagram - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Life Expectancy Diagram - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Photometrics
    Spectral Power Distribution Colour - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Spectral Power Distribution Colour - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Light Distribution Diagram - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
    Light Distribution Diagram - MASTERC CDM-Tm Elite Mini 35W/930 GU6.5
