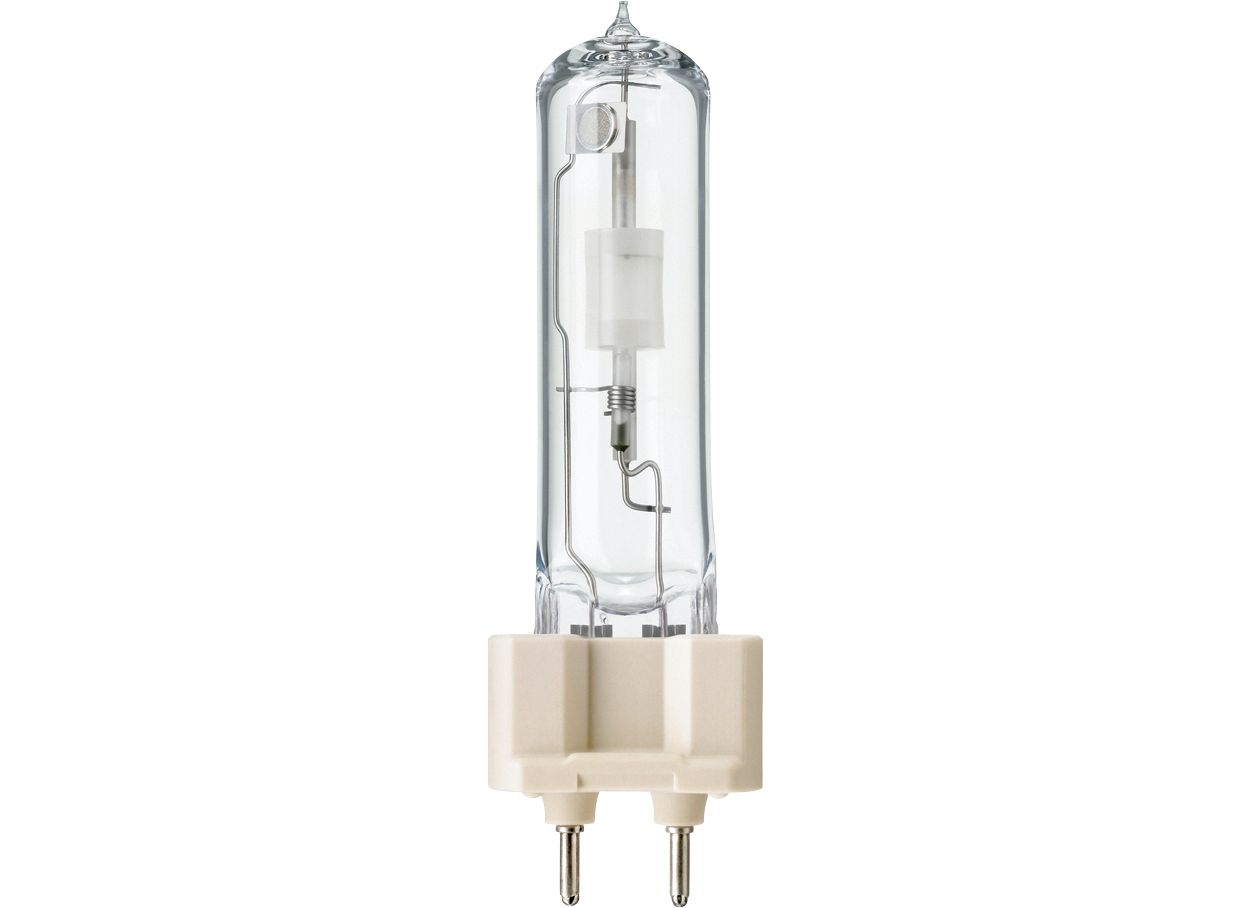

      MasterColor CDM-T 70W/830 G12 T6 CL
      MasterColor CDM-T 70W/830 G12 T6 CL
      MasterColor CDM-T T6

      MasterColor CDM-T 70W/830 G12 T6 CL

      Downloads

      Spec Sheet
      Size:2.5 MB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Voltage (Nom)
    88 V
    Power Consumption
    73.2 W
    Voltage (Nom)
    88 V
    Approval and Application
    Mercury (Hg) Content (Nom)
    4.6 mg
    Energy Consumption kWh/1000 h
    80 kWh
    Product Data
    Full product name
    MasterColor CDM-T 70W/830 G12 T6 CL
    EAN/UPC - Case
    50046677223378
    Order product name
    CDM-T 70W/830 G12 T6 CL
    Order code
    223370
    Numerator - Packs per outer box
    12
    Material number (12NC)
    928082305115
    Numerator - Quantity Per Pack
    1
    Controls and Dimming
    Dimmable
    No
    General Information
    Cap-Base
    G12  [G12]
    Operating Position
    UNIVERSAL  [Any or Universal (U)]
    Mechanical and Housing
    Bulb Shape
    T19  [T 19mm]
    Bulb Finish
    Clear
    Light Technical
    Chromaticity Coordinate Y (Nom)
    0.395
    Chromaticity Coordinate X (Nom)
    0.432
    Luminous Efficacy (rated) (Nom)
    85 lm/W
    Color rendering index (CRI)
    84
    Correlated Color Temperature (Nom)
    3000 K
    Color Designation
    Warm White (WW)
    Color Code
    830  [CCT of 3000K]
    Installation Diagrams
     G12 T 19mm Clear CCT of 3000K
    G12 T 19mm Clear CCT of 3000K
    G12
    G12
    any
    any
    Performance Diagrams
    Lamp Performance During Run-up - CDM-T 70W/830 G12 T6 CL
    Lamp Performance During Run-up - CDM-T 70W/830 G12 T6 CL
    Lumen Maintenance Diagram - CDM-T 70W/830 G12 T6 CL
    Lumen Maintenance Diagram - CDM-T 70W/830 G12 T6 CL
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - CDM-T 70W/830 G12 T6 CL
    Life Expectancy Diagram - CDM-T 70W/830 G12 T6 CL
    Photometrics
    Spectral Power Distribution Colour - CDM-T 70W/830 G12 T6 CL
    Spectral Power Distribution Colour - CDM-T 70W/830 G12 T6 CL
    Light Distribution Diagram - CDM-T 70W/830 G12 T6 CL
    Light Distribution Diagram - CDM-T 70W/830 G12 T6 CL
