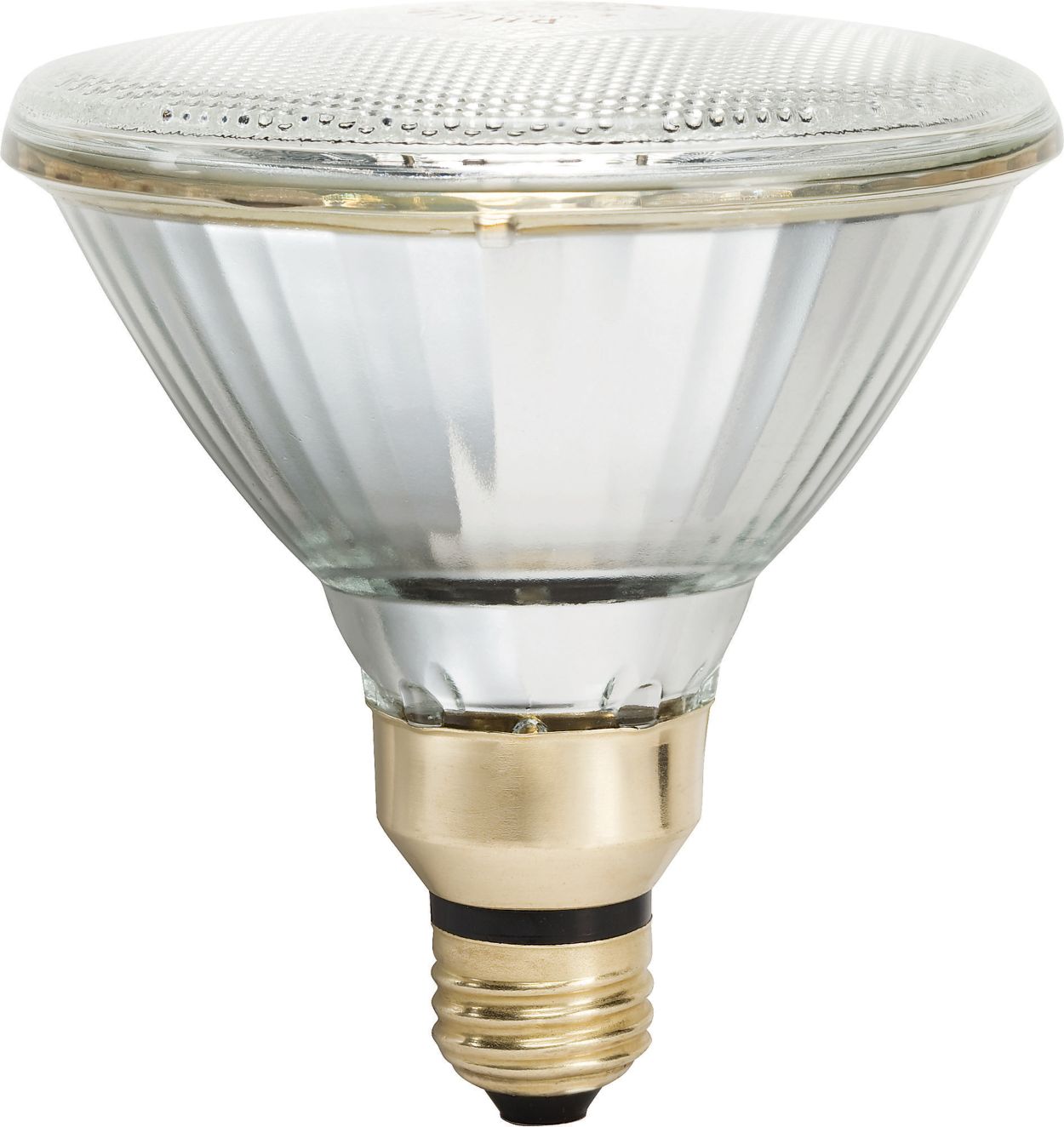

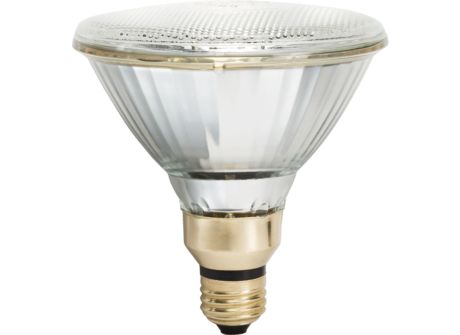

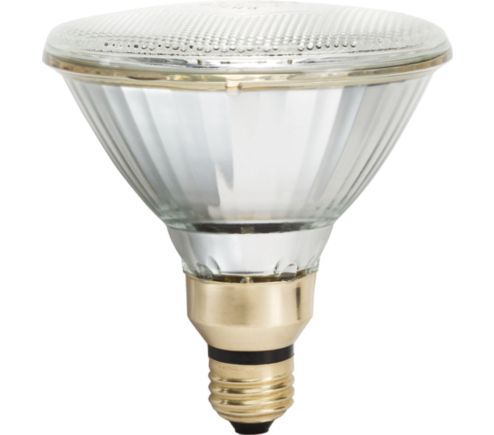

MasterColor CDM100/PAR38/FL/3K ALTO ELITE 12PK

Specifications Show all

General information

Base	E26  [ Single Contact Medium Screw]
Operating Position	Universal  [ Universal]
Life to 50% Failures (Nom)	16000 h
ANSI Code HID	C90/O

Light technical

Beam Angle (Max)	31 °
Beam Angle (Min)	19
Color Code	830  [ CCT of 3000K]
Beam Angle (Nom)	25 °
Luminous Flux (Rated) (Nom)	6800 lm
Luminous Intensity (Nom)	20000 cd
Beam Description	Flood  [ Flood]
Color Designation	Warm White (WW)
Chromaticity Coordinate X (Nom)	0.430
Chromaticity Coordinate Y (Nom)	0.402
Correlated Color Temperature (Nom)	3000 K
Color Rendering Index (Nom)	92

Operating and electrical

Power (Rated) (Nom)	100 W
Lamp Current (EM) (Nom)	1.1 A
Ignition Supply Voltage (Min)	235 V
Re-Ignition Time (Min) (Max)	8 min
Ignition Time (Max)	10 s
Voltage (Max)	110 V
Voltage (Min)	85 V
Voltage (Nom)	90 V

Controls and dimming

Dimmable	No
Run-Up Time 90% (Max)	2 min

Mechanical and housing

Bulb Finish	Clear
Bulb Shape	PAR38  [ PAR 4.75 inch/121mm]

Luminaire design requirements

Bulb Temperature (Max)	662 °F
Cap-Base Temperature (Max)	374 °F
Cap-Base Temperature (Max)-DUP(do not use)	374 °F

Product data

Order product name	MasterColor CDM100/PAR38/FL/3K ALTO ELITE 12PK
EAN/UPC - Product	046677456511
Order code	456517
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	12
Material Nr. (12NC)	928494030901
Net Weight (Piece)	0.677 lb
