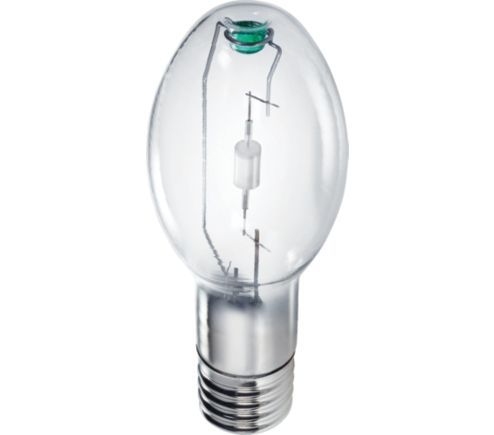

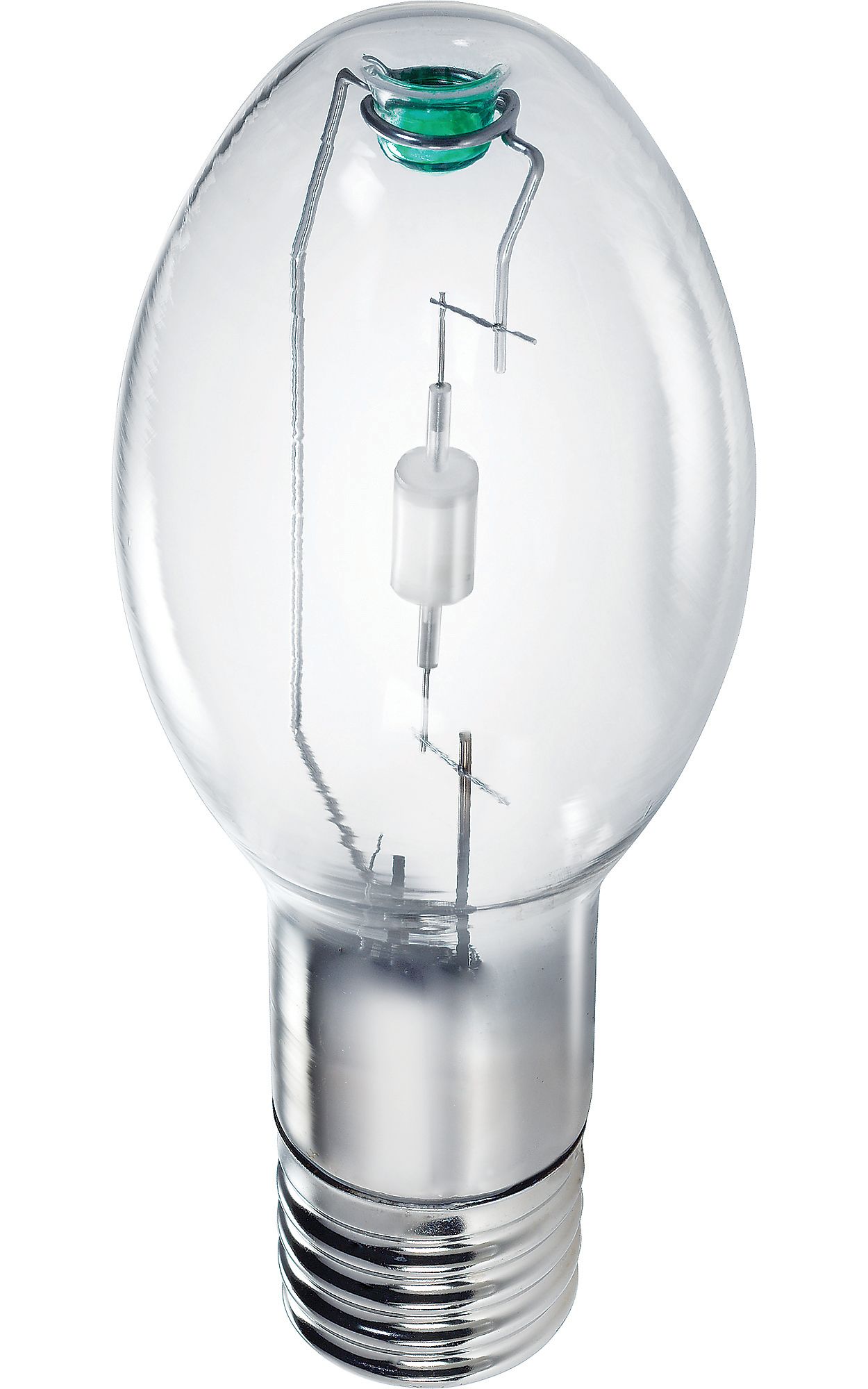

      MasterColor CDM100/U/PS/4K ED23.5  - Elite
      MasterColor CDM100/U/PS/4K ED23.5  - Elite
      MasterColor CDM ED23 1/2 Elite

      MasterColor CDM100/U/PS/4K ED23.5 - Elite

      Order code: 430686

      Downloads

      Spec Sheet
      Size:396.1 kB

      See all downloads

    Specifications Show all

    General information
    Base
    E39  [ Single Contact Mogul Screw]
    Operating Position
    Universal  [ Universal]
    Main Application
    General Lighting (G)
    Life to 50% Failures (Nom)
    20000 h
    ANSI Code HID
    C90/E
    Features
    ELITE
    System Description
    Pulse Start
    Light technical
    Color Code
    940  [ CCT of 4000K]
    Luminous Flux (Rated) (Min)
    9360 lm
    Luminous Flux (Rated) (Nom)
    10400 lm
    Color Designation
    Cool White (CW)
    Lumen Maintenance - 40% Life
    80 %
    Lumen Maintenance - 10% Life
    92 %
    Design Mean Lumens
    7920 lm
    Chromaticity Coordinate X (Max)
    0.387
    Chromaticity Coordinate X (Min)
    0.369
    Chromaticity Coordinate X (Nom)
    0.378
    Chromaticity Coordinate Y (Max)
    0.376
    Chromaticity Coordinate Y (Min)
    0.364
    Chromaticity Coordinate Y (Nom)
    0.370
    Correlated Color Temperature (Max)
    4380 K
    Correlated Color Temperature (Min)
    3980 K
    Correlated Color Temperature (Nom)
    4180 K
    Luminous Efficacy (Rated) (Min)
    90 lm/W
    Luminous Efficacy (rated) (Nom)
    104 lm/W
    Color Rendering Index (Min)
    87
    Color Rendering Index (Nom)
    90
    Operating and electrical
    Power (Rated) (Nom)
    100.4 W
    Lamp Current (Nom)
    1.10 A
    Ignition Supply Voltage (Min)
    235 V
    Re-Ignition Time (Min) (Max)
    8 min
    Ignition Time (Max)
    10 s
    Voltage (Max)
    114 V
    Voltage (Min)
    90 V
    Voltage (Nom)
    102 V
    Mechanical and housing
    Bulb Finish
    Clear
    Cap-Base Information
    Nic/Brass
    Bulb Material
    Hard Glass
    Bulb Shape
    ED-23 1/2
    Approval and application
    Picogram Per Lumen Hour
    61 pg/lm.h
    Mercury (Hg) Content (Max)
    9.9 mg
    UV
    Pet (Niosh) (Nom)
    70.2 h/500lx
    Damage Factor D/fc (Nom)
    0.6
    Luminaire design requirements
    Bulb Temperature (Max)
    752 °F
    Cap-Base Temperature (Max)
    374 °F
    Cap-Base Temperature (Max)-DUP(do not use)
    374 °F
    Product data
    Order product name
    MasterColor CDM100/U/PS/4K ED23.5 - Elite
    EAN/UPC - Product
    046677430689
    Order code
    430686
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    12
    Material Nr. (12NC)
    928601178401
    Net Weight (Piece)
    0.002 lb

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    E39
    E39
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Performance Diagrams
    LDLM_D-CDM-PS_0002-Lumen maintenance diagram
    LDLM_D-CDM-PS_0002-Lumen maintenance diagram
    LDLE_D-CDM-PS_0002-Life expectancy diagram
    LDLE_D-CDM-PS_0002-Life expectancy diagram
