    • Low mercury, energy savings.

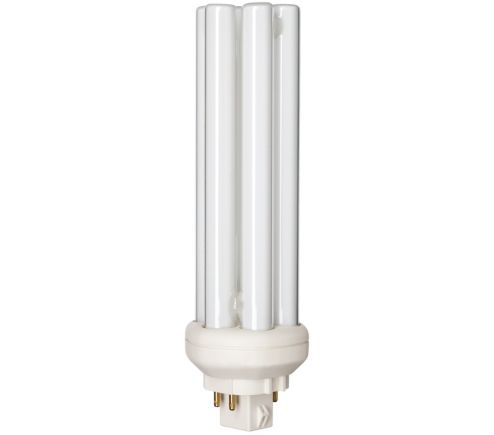

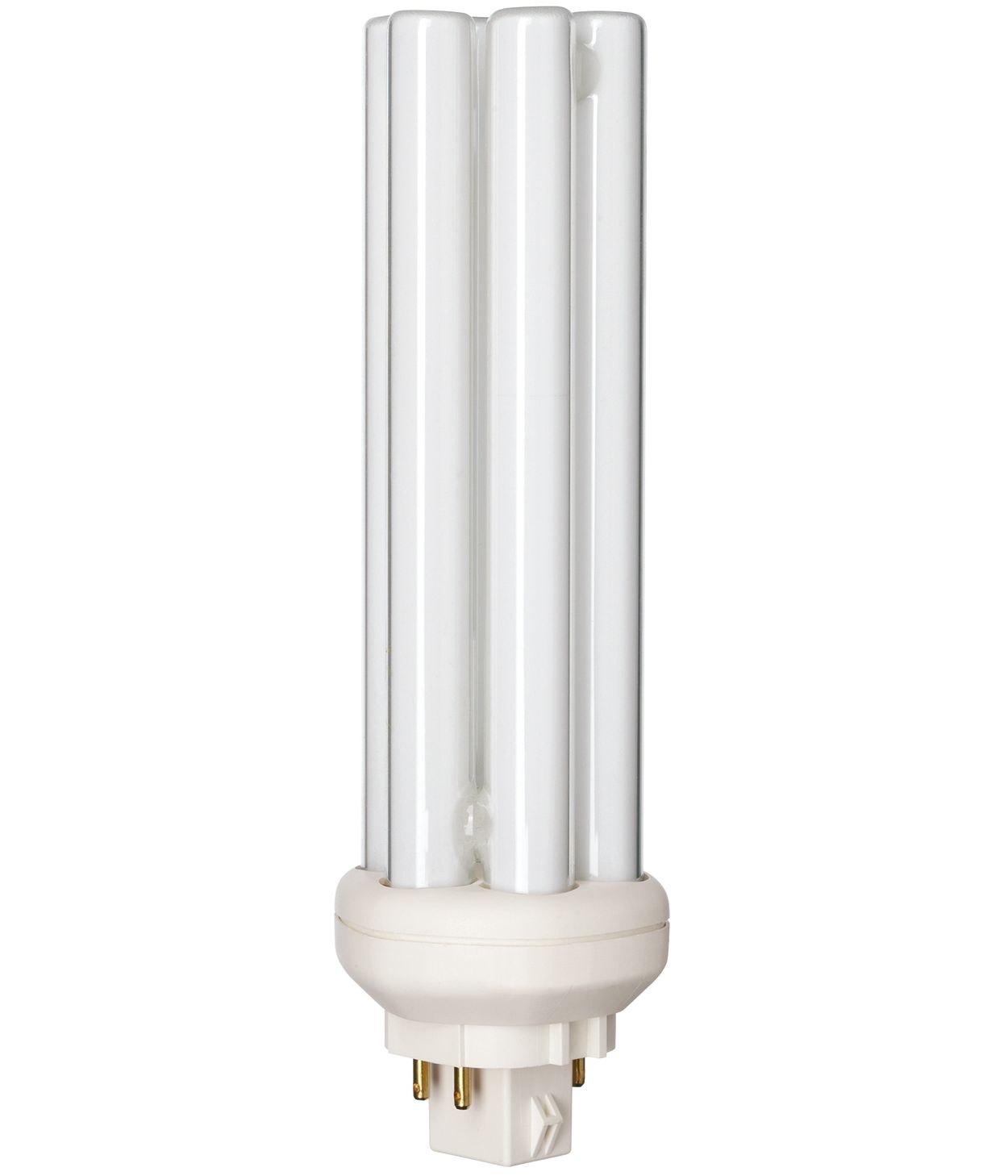

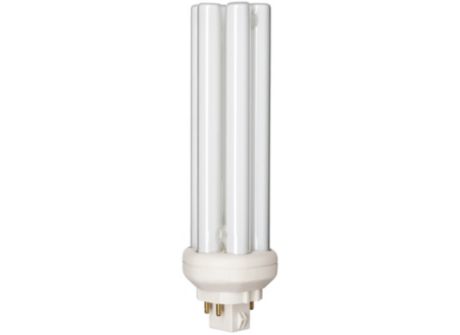

      PL-T 42W/835/A/4P  1CT/5X10BOX ALTO
      PL-T 42W/835/A/4P  1CT/5X10BOX ALTO
      PL-T Triple 4-Pin Base

      PL-T 42W/835/A/4P 1CT/5X10BOX ALTO

      Downloads

      Spec Sheet
      Size:379.9 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    0.320 A
    Power Consumption
    38.0 W
    Approval and Application
    Mercury (Hg) Content (Nom)
    1.4 mg
    Product Data
    Full product name
    PL-T 42W/835/A/4P 1CT/5X10BOX ALTO
    EAN/UPC - Case
    50046677149029
    Order product name
    PL-T 42W/835/A/4P 1CT/5X10BOX ALTO
    Order code
    149021
    Numerator - Packs per outer box
    10
    Material number (12NC)
    927911483520
    Numerator - Quantity Per Pack
    1
    Controls and Dimming
    Dimmable
    Yes
    General Information
    Cap-Base
    GX24Q-4  [GX24q-4]
    Light Technical
    Luminous Flux
    3,200 lumen
    Luminous Efficacy (Rated) (Min)
    80 lm/W
    Color rendering index (CRI)
    82
    Correlated Color Temperature (Nom)
    3500 K
    Color Designation
    White (WH)
    Color Code
    835  [CCT of 3500K]
    Installation Diagrams
    GX24q-4, 4P
    GX24q-4, 4P
    GX24q-4
    GX24q-4
    Performance Diagrams
    Lumen Maintenance Diagram - PL-T 42W/835/A/4P  1CT/5X10BOX ALTO
    Lumen Maintenance Diagram - PL-T 42W/835/A/4P 1CT/5X10BOX ALTO
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - PL-T 42W/835/A/4P  1CT/5X10BOX ALTO
    Life Expectancy Diagram - PL-T 42W/835/A/4P 1CT/5X10BOX ALTO
    Life Expectancy Diagram - PL-T 42W/835/A/4P  1CT/5X10BOX ALTO
    Life Expectancy Diagram - PL-T 42W/835/A/4P 1CT/5X10BOX ALTO
    Photometrics
    Spectral Power Distribution Colour - PL-T 42W/835/A/4P  1CT/5X10BOX ALTO
    Spectral Power Distribution Colour - PL-T 42W/835/A/4P 1CT/5X10BOX ALTO
