    • Low mercury, energy savings.

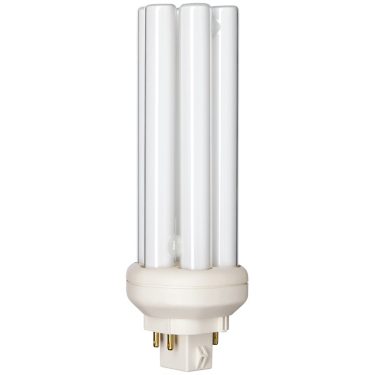

      PL-T 32W/830/A/4P  1CT/5X10BOX ALTO
      PL-T 32W/830/A/4P  1CT/5X10BOX ALTO
      PL-T Triple 4-Pin Base

      PL-T 32W/830/A/4P 1CT/5X10BOX ALTO

      Order code: 458299

      Downloads

      Spec Sheet
      Size:378.0 kB

      See all downloads

    Specifications Show all

    General information
    Base
    GX24Q-3  [ GX24q-3]
    LSF Preheat 2000 h Rated
    99 %
    LSF Preheat 4000 h Rated
    98 %
    LSF Preheat 6000 h Rated
    97 %
    LSF Preheat 8000 h Rated
    90 %
    Light technical
    Color Code
    830  [ CCT of 3000K]
    Initial lumen (Nom)
    2250 lm
    Luminous Flux (Rated) (Nom)
    2250 lm
    Color Designation
    Warm White (WW)
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    68.2 lm/W
    Color Rendering Index (Nom)
    >80
    LLMF 2000 h Rated
    92 %
    LLMF 4000 h Rated
    88 %
    LLMF 6000 h Rated
    85 %
    LLMF 8000 h Rated
    84 %
    LLMF 12000 h Rated
    81 %
    Operating and electrical
    Power (Rated) (Nom)
    33.0 W
    Lamp Current (Nom)
    0.320 A
    Temperature
    Design Temperature (Nom)
    82 °F
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Cap-Base Information
    4P
    Approval and application
    Mercury (Hg) Content (Nom)
    1.4 mg
    Product data
    Order product name
    PL-T 32W/830/A/4P 1CT/5X10BOX ALTO
    EAN/UPC - Product
    046677268329
    Order code
    458299
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    927911083050
    Net Weight (Piece)
    0.154 lb
    ILCOS Code
    FSM-32/30/1B-E-GX24q=3

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    GX24q-3, 4P
    GX24q-3, 4P
    GX24q-3
    GX24q-3
    Performance Diagrams
    LDLM_PLTTOP4P_0001-Lumen maintenance diagram
    LDLM_PLTTOP4P_0001-Lumen maintenance diagram
    LDSL_PLTTOP4P_0002-Service Lifetime
    LDSL_PLTTOP4P_0002-Service Lifetime
    LDLE_PLTTOP4P_0001-Life expectancy diagram
    LDLE_PLTTOP4P_0001-Life expectancy diagram
    LDLE_PLTTOP4P_0002-Life expectancy diagram
    LDLE_PLTTOP4P_0002-Life expectancy diagram
    Photometrics
    LDPB_PLTTOP4P_830-Spectral power distribution B/W
    LDPB_PLTTOP4P_830-Spectral power distribution B/W
    LDPO_PLTTOP4P_830-Spectral power distribution Colour
    LDPO_PLTTOP4P_830-Spectral power distribution Colour
