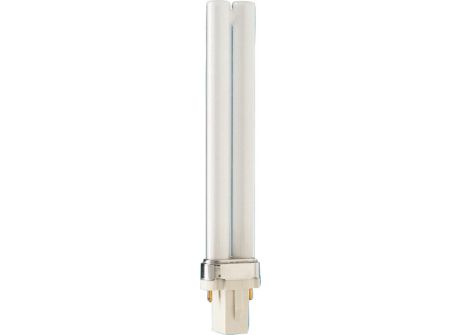

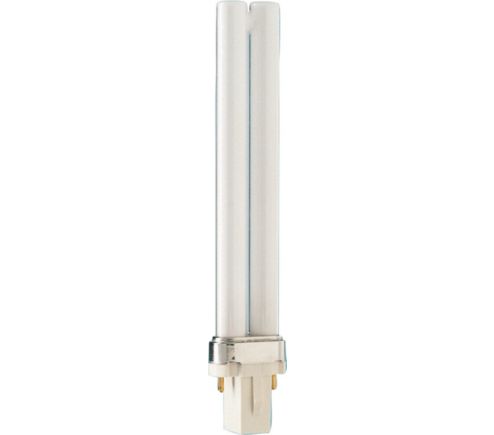

      PL-S 9W/827/2P 1CT/5X10BOX ALTO
      PL-S 9W/827/2P 1CT/5X10BOX ALTO
      PL-S Short 2-Pin Base

      PL-S 9W/827/2P 1CT/5X10BOX ALTO

      Downloads

      Spec Sheet
      Size:368.4 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Lamp Current (Nom)
    0.170 A
    Power Consumption
    8.7 W
    Approval and Application
    Mercury (Hg) Content (Nom)
    1.4 mg
    Product Data
    Full product name
    PL-S 9W/827/2P 1CT/5X10BOX ALTO
    EAN/UPC - Case
    50046677148671
    Order product name
    PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Order code
    148676
    Numerator - Packs per outer box
    10
    Material number (12NC)
    927901882721
    Numerator - Quantity Per Pack
    1
    Controls and Dimming
    Dimmable
    No
    General Information
    Cap-Base
    G23  [G23]
    Light Technical
    Luminous Flux
    600 lumen
    Luminous Efficacy (rated) (Nom)
    67 lm/W
    Color rendering index (CRI)
    82
    Correlated Color Temperature (Nom)
    2700 K
    Color Designation
    Incandescent White
    Color Code
    827  [CCT of 2700K]
    Installation Diagrams
    G23/GX23, 2P
    G23/GX23, 2P
    G23
    G23
    Performance Diagrams
    Lumen Maintenance Diagram - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Lumen Maintenance Diagram - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Life Expectancy Diagram - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Life Expectancy Diagram - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Life Expectancy Diagram - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Photometrics
    Spectral Power Distribution Colour - PL-S 9W/827/2P 1CT/5X10BOX ALTO
    Spectral Power Distribution Colour - PL-S 9W/827/2P 1CT/5X10BOX ALTO
