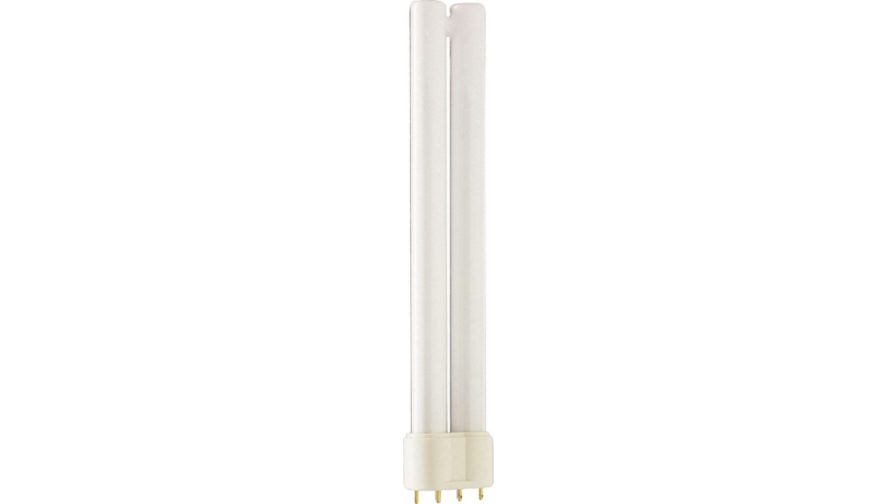

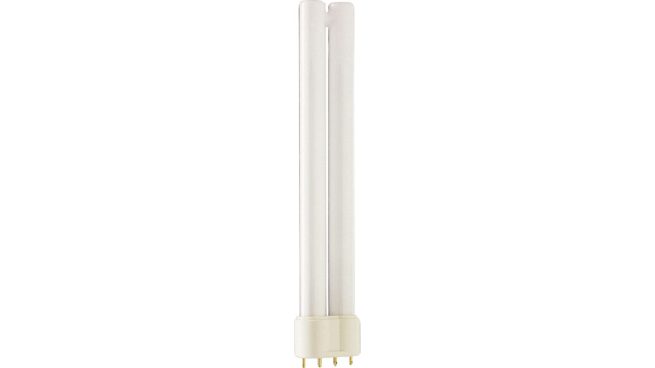

      PL-L 18W/841/4P  1CT/25
      PL-L 18W/841/4P  1CT/25
      PL-L Long 4-Pin Base

      PL-L 18W/841/4P 1CT/25

      Order code: 345017

      Downloads

      Spec Sheet
      Size:196.3 kB

      See all downloads

    Specifications Show all

    General information
    Base
    2G11  [ 2G11]
    Life to 50% Failures (Nom)
    15000 h
    Life to 50% Failures Preheat (Nom)
    20000 h
    Light technical
    Color Code
    841  [ CCT of 4100K (841)]
    Initial lumen (Nom)
    1200 lm
    Color Designation
    Cool White (CW)
    Lumen Maintenance 10000 h (Nom)
    92 %
    Lumen Maintenance 2000 h (Nom)
    94 %
    Lumen Maintenance 5000 h (Nom)
    93 %
    Correlated Color Temperature (Nom)
    4100 K
    Luminous Efficacy (rated) (Nom)
    67 lm/W
    Color Rendering Index (Nom)
    82
    Operating and electrical
    Power (Rated) (Nom)
    18.0 W
    Lamp Current (Nom)
    0.375 A
    Voltage (Nom)
    58 V
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Bulb Finish
    Silicon
    Cap-Base Information
    4P
    Product data
    Order product name
    PL-L 18W/841/4P 1CT/25
    EAN/UPC - Product
    046677345013
    Order code
    345017
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    25
    Material Nr. (12NC)
    927903108421
    Net Weight (Piece)
    0.134 lb
    ILCOS Code
    FSD-18/40/1B-E-2G11

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    2G11, 4P
    2G11, 4P
    2G11
    2G11
    Photometrics
    LDPB_PLLSIL_840-Spectral power distribution B/W
    LDPB_PLLSIL_840-Spectral power distribution B/W
    LDPO_PLLSIL_840-Spectral power distribution Colour
    LDPO_PLLSIL_840-Spectral power distribution Colour
